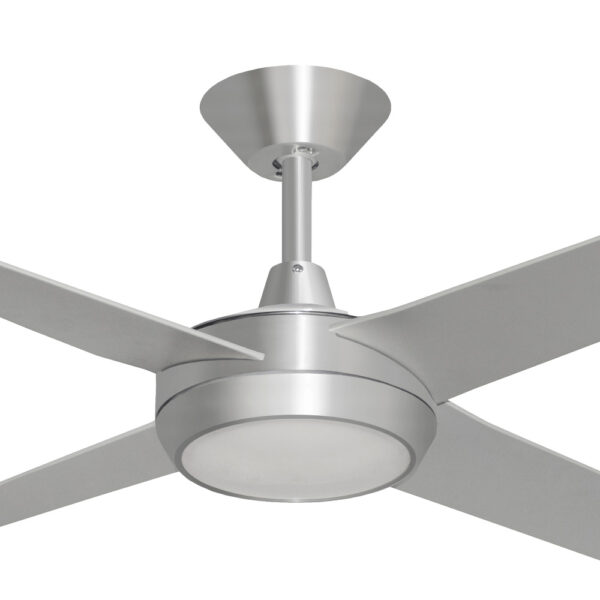

Hunter Pacific Concept AC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 132cm (52″) |
| Approximate Blade Pitch | 11 Degrees |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from switch on motor |
| Ceiling to Lowest Point of Blade | 270mm (365mm ceiling to base of light) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 28 degrees |
| Brand | Hunter Pacific |
| Manufacturers Part Number | C508 |
| Warranty | Hunter Pacific: Includes a 3 year manufacturer’s in-home warranty and a 4 year motor parts warranty. Conditions Apply. |
Hunter Pacific Concept Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 84 | 12.5 | 4986 m3/hr |
| 2 | 121 | 26 | 6987 m3/hr |
| 3 | 192 | 62 | 14096 m3/hr |
Hunter Pacific Concept Light Information
| Light Type | LED |
|---|---|
| Light Wattage | 24 |
| Lumens | 1842lm, 2370lm, 2123lm |
| Light Temperature | 3000K, 4000K, 6000K |
| Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
