Inline Kit 7: Large room with 2 intakes up to 37m3 TT Silent 150mm

Original price was: $549.00.Current price is: $499.00.

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.

This kit is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician.

Power Consumption (W) 52w
Fan Capacity: 555 m3/hr (154 l/s)
Noise level at 3m ([dBA]) 33dBA
Ductable: Yes (150mm duct diameter)

Save

Save

buy from lumera with confidence
SKU: EKFCTTS2F Categories: , ,
Description

Features of this Inline Fan Kit

  • Comes with everything you need to install
  • Features a high quality 150mm silent mixflow inline motor.
  • Suited for rooms up to 37m3 – ideal for medium to large size bathrooms.
  • Includes a Y Junction and 2 vents – this means you have 2 intake points. Useful for servicing two rooms or one very large room.

Kit Includes:

  • 1 x TT Silent 150 inline fan with lead and plug (Includes lead & plug connected to high speed & is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician)
  • 2 x Internal cone vent 150mm
  • 1 x BTO (Y Junction) 150mm x 150mm x 150mm
  • 1 x External Vent 150mm
  • 1 x Back draft shutter 150mm
  • 1 x 6m Flexible Duct 150mm
  • 1 x Roll of Duct tape

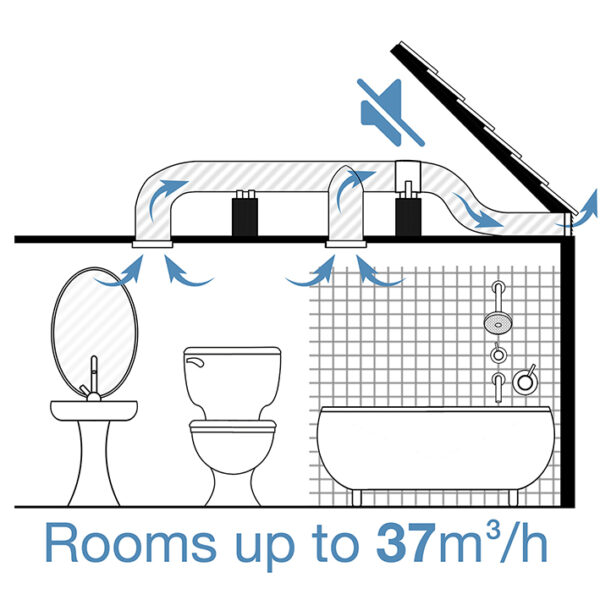

This model has 2 seperate room intakes available and so allows for either the installation of both intakes in one large room, or for separate intakes in adjoining rooms. Both variables are shown below in the graphics.

308 500x412310 500x412inline diagram

How does an Inline Fan Work:

Inline Kit Information

This kit is ideal for exhausting bathrooms, ensuites, laundries, toilets, etc. up to 37m3.

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.

Download TT Silent Mixflow Spec Sheet

pdf

logofanco

Additional information
Model Number

EKFCTTS2

Brand

Fanco

Colour

Black / Dark

Material

Metal

Installation

Comes With Lead & Plug

,

Installing in conjunction with optional accessories may require hardwiring.

Capacity m3/hr

555 m3/hr

Capacity l/s

154 l/s

Motor Wattage

52w

Noise

33 dB(A)

Voltage

230

Current

0.23A

IP Rating

IPX4

Ductable

Yes

Duct Size

150mm

Warranty

Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply).

Exhaust Disclaimer

Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting.

,

Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible.

,

Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)

Fan Performance

Fan Performance

Performance Comparison Between Sizes

Variable m3/hr l/s RPM (min-1) Wattage dB(A) at 3m
TT Silent 150 555m3/hr 154l/s 2645 52w 33dB(A)
TT Silent 200 1020m3/hr 284l/s 2445 110w 36dB(A)

Pressure Curve

tt 150 silent curve m3hr
tt 100 curve m3hrtt 150 silent curve m3hrSave

Save

Fan Dimensions

Fan Dimensions

Dimensions

tt silent dimensions

Dimensions Measurement (mm)
D 147mm
B 247mm
B1 274mm
L 580mm
H 260mm

Save

Save

FAQ

FAQ

How do we calculate which room size this kit is suitable for?
room size diagram
The recommended room size is based on achieving 15 air changes per hour. To calculate the size of your room simply multiply length x width x height as shown in the diagram above.

What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
