Name: Inline Kit 5: Large room up to 37m3 TT Silent 150mm
Brand: Fanco
SKU: EKFCTTS1F
Price: 459.00 AUD
Availability: InStock

Inline Kit 5: Large room up to 37m3 TT Silent 150mm

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.

This kit is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician.

Power Consumption (W)	52w
Fan Capacity:	555 m3/hr (154 l/s)
Noise level at 3m ([dBA])	33dBA
Ductable:	Yes (150mm duct diameter)

Save

Description

Features of this Inline Fan Kit

Comes with everything you need to install
Features a high quality 150mm silent mixflow inline motor.
Suited for rooms up to 37m3 – ideal for medium to large size bathrooms.

Kit Includes:

1 x TT Silent 150 inline fan with lead and plug (Includes lead & plug connected to high speed & is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician.)
1 x Internal cone vent 150mm
1 x External Vent 150mm
1 x Back draft shutter 150mm
1 x 6m Flexible Duct 150mm
1 x Roll of Duct tape

306 500x412

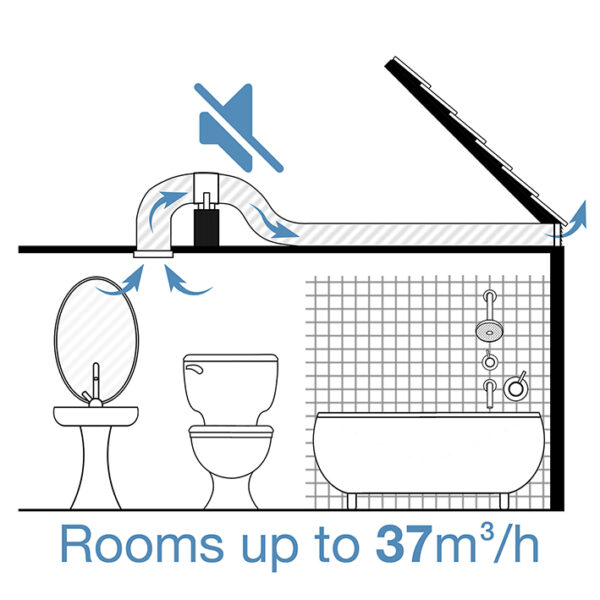

inline diagram

How does an Inline Fan Work:

Inline Kit Information

This kit is ideal for exhausting bathrooms, ensuites, laundries, toilets, etc. up to 37m3.

Download TT Silent Mixflow Spec Sheet

logofanco

Additional information

Model Number	EKFCTTS1
Brand	Fanco
Colour	Black / Dark
Material	Metal
Installation	Comes With Lead & Plug , Installing in conjunction with optional accessories may require hardwiring.
Capacity m3/hr	555 m3/hr
Capacity l/s	154 l/s
Motor Wattage	52w
Noise	33 dB(A)
Voltage	230
Current	0.23A
IP Rating	IPX4
Ductable	Yes
Duct Size	150mm
Warranty	Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply).
Exhaust Disclaimer	Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. , Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. , Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)

Fan Performance

Performance Comparison Between Sizes

Variable	m3/hr	l/s	RPM (min-1)	Wattage	dB(A) at 3m
TT Silent 150	555m3/hr	154l/s	2645	52w	33dB(A)
TT Silent 200	1020m3/hr	284l/s	2445	110w	36dB(A)

Pressure Curve

tt 150 silent curve m3hr
tt 100 curve m3hr Save

Save

Fan Dimensions

Dimensions

tt silent dimensions

Dimensions	Measurement (mm)
D	147mm
B	247mm
B1	274mm
L	580mm
H	260mm

Save

FAQ

How do we calculate which room size this kit is suitable for?
room size diagram
The recommended room size is based on achieving 15 air changes per hour. To calculate the size of your room simply multiply length x width x height as shown in the diagram above.

What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
