Name: Inline Kit 4: Large room up to 37m3 TT 150mm
Brand: Fanco
SKU: EKFCTT1F
Price: 249.00 AUD
Availability: InStock

Inline Kit 4: Large room up to 37m3 TT 150mm

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.

This kit is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician.

Power Consumption (W)	60w
Fan Capacity:	520 m3/hr (145 l/s)
Noise level at 3m ([dBA])	44dBA
Ductable:	Yes (150mm duct diameter)

Save

Description

Features of this Inline Fan Kit

Comes with everything you need to install
Features a high quality 150mm mixflow inline motor.
Suited for rooms up to 37m3 – ideal for medium to large size bathrooms.

Kit Includes:

1 x TT 150 inline fan with lead and plug (Includes lead & plug connected to high speed & is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician)
1 x Internal cone vent 150mm
1 x External Vent 150mm
1 x Back draft shutter 150mm
1 x 6m Flexible Duct 150mm
1 x Roll of Duct tape

305 500x412

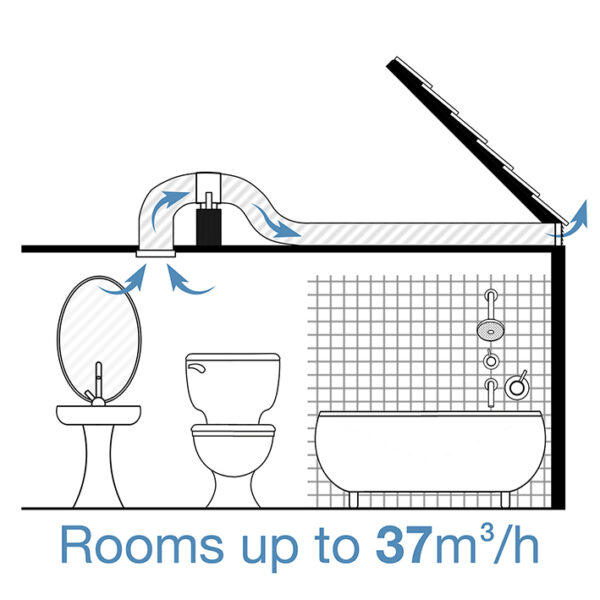

inline diagram

How does an Inline Fan Work:

Inline Kit Information

This kit is ideal for exhausting bathrooms, ensuites, laundries, toilets, etc. up to 37m3.

Download TT Mixflow Spec Sheet

logofanco

Additional information

Model Number	EKFCTT1
Brand	Fanco
Colour	White
Material	Plastic
Installation	Comes With Lead & Plug , Installing in conjunction with optional accessories may require hardwiring.
Capacity m3/hr	520 m3/hr
Capacity l/s	145 l/s
Motor Wattage	60w
Noise	44 dB(A)
Voltage	230
Current	0.27A
IP Rating	IPX4
Ductable	Yes
Duct Size	150mm
Warranty	Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply).
Exhaust Disclaimer	Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. , Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. , Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)

Fan Performance

Performance Comparison Between Sizes

Variable	m3/hr	l/s	RPM (min-1)	Wattage	dB(A) at 3m
TT 100	187m3/hr	52l/s	2385	33w	36dB(A)
TT 125	280m3/hr	78l/s	2455	37W	37dB(A)
TT 150	520m3/hr	145l/s	2460	60w	44dB(A)
TT 200	1040m3/hr	289l/s	2380	108w	52dB(A)
TT 250	1400m3/hr	389l/s	2440	177w	55dB(A)
TT 315	2050m3/hr	570l/s	2430	320w	58dB(A)

Pressure Curve

tt 150 curve m3hr
tt 100 curve m3hr Save

Save

Fan Dimensions

Dimensions

tt dimensions diagram

Dimensions	Measurement (mm)
D	146mm
B	223mm
L	250mm
H	295mm

Save

FAQ

How do we calculate which room size this kit is suitable for?
room size diagram
The recommended room size is based on achieving 15 air changes per hour. To calculate the size of your room simply multiply length x width x height as shown in the diagram above.

What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
