HomeShopExhaust BrandsFanco Inline Kit 1: Small room up to 6m3 VKO 100mm

Inline Kit 1: Small room up to 6m3 VKO 100mm

$95.00 $89.00

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.

This kit is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician.

Power Consumption (W)16w
Fan Capacity:135 m3/hr (37 l/s)
Noise level at 3m ([dBA])38dBA
Ductable:Yes (100mm duct diameter)

Save

Save

buy from lumera with confidence
SKU: EKFCVKO1 Categories: Exhaust Fans, Fanco, Inline Fan Kits
  • Description
  • Additional information
  • Fan Performance
  • Fan Dimensions
  • FAQ
  • Reviews (0)
  • Shipping & Delivery
Description

Features of this Inline Fan Kit

  • Comes with everything you need to install
  • Features a small and compact 100mm axial inline motor.
  • Suited for rooms up to 6m3 – ideal for a small ensuite or toilet.

Kit Includes:

  • 1 x VKO 100 inline fan with lead and plug (Includes lead & plug & is for DIY installation unless you choose to add hardwired accessories (eg speed control) which will need to be installed by an electrician.)
  • 1 x Internal cone vent 100 mm
  • 1 x External Vent 100mm
  • 1 x Back draft shutter 100mm
  • 1 x 3m Flexible Duct 100mm
  • 1 x Roll of Duct tape

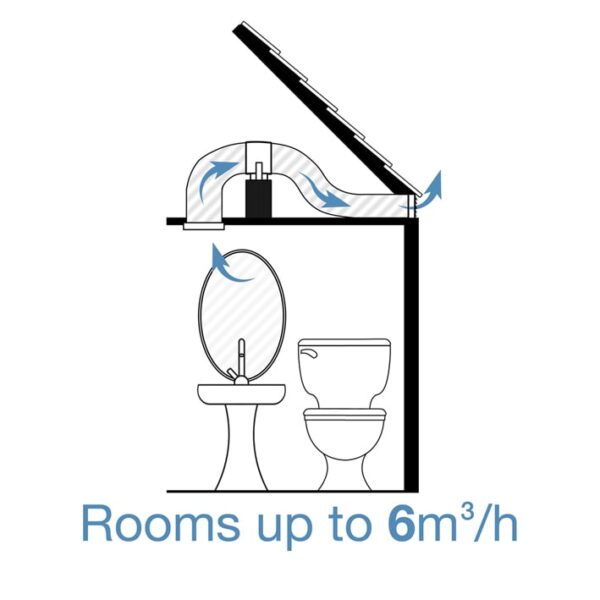

inline-diagram

How does an Inline Fan Work:

Inline Kit Information

This kit is ideal for exhausting smaller bathrooms, ensuites, laundries, toilets, etc. up to 6m3.

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.

Download VKO Spec Sheet

logo-fanco

Additional information
Weight5 kg
Model Number

EKFCVKO1

Brand

Fanco

Colour

White

Material

Plastic

Installation

Comes With Lead & Plug, Installing in conjunction with optional accessories may require hardwiring.

Capacity m3/hr

135 m3/hr

Capacity l/s

37 l/s

Motor Wattage

16w

Noise

38 dB(A)

Voltage

230

Current

0.1A

IP Rating

IPX4

Ductable

Yes

Duct Size

100mm

Warranty

Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply).

Exhaust Disclaimer

Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible., Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)

Fan Performance

Fan Performance

Performance Comparison Between Sizes

Variablem3/hrl/sRPM (min-1)WattagedB(A) at 3m
VKO 100135m3/hr37l/s230016w38dB(A)
VKO 125243m3/hr67l/s240024W39dB(A)
VKO 150358m3/hr99l/s240029w44dB(A)

Pressure Curve


tt 100 pressure curvett 100 curveSave

Save

Fan Dimensions

Fan Dimensions

Dimensions

vko-dimensions

DimensionsMeasurement (mm)
∅D100mm
∅d59mm
B160mm
B1144mm
H110mm
L85mm
L128mm
L245mm
L329mm

Save

Save

FAQ

FAQ

How do we calculate which room size this kit is suitable for?

The recommended room size is based on achieving 15 air changes per hour. To calculate the size of your room simply multiply length x width x height as shown in the diagram above.

What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
