Hunter Pacific Pinnacle V2 DC Information
Coastal-friendly, and resistant to corrosion and UV light because of its polymer plastic material.
Installation | Indoor, Outdoor Undercover, Coastal |
---|---|
Light | Not Included |
Material of Blade | Plastic |
Overall Diameter (blade tip to blade tip) | 132cm (52″) |
Approximate Blade Pitch | 12 Degrees |
Type of Motor | DC motor |

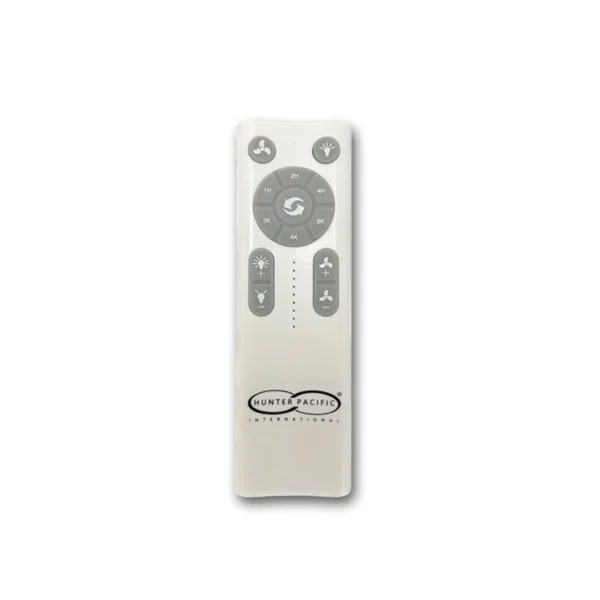

Operation | Remote Control |
Summer / Winter use? | Reversible from Remote Control |
Ceiling to Lowest Point of Blade | 255mm (275mm to base of motor) |
Suitable for Angled Ceilings? | Suitable for flat ceilings ONLY |
Brand | Hunter Pacific |
Manufacturers Part Number | P2200 + DCWC2409 |
Warranty | Hunter Pacific: This fan comes complete with a 3-year manufacturer’s in-home warranty and a 4-year motor parts warranty. |
Hunter Pacific Pinnacle V2 Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 79 | 2.7 | 4953 m3/hr |
2 | 93 | 3.8 | 5943 m3/hr |
3 | 150 | 9.6 | 9734 m3/hr |
4 | 159 | 12.5 | 11001 m3/hr |
5 | 174 | 15.4 | 11987 m3/hr |
6 | 189 | 17.6 | 12254 m3/hr |
7 | 199 | 21.1 | 13954 m3/hr |
8 | 209 | 22.5 | 14038 m3/hr |
9 | 215 | 25.3 | 15101 m3/hr |
The fastest speed setting achieves high airflow. Energy-efficient and cheap to run, even at the highest speed.
