Name: VKM Centrifugal Inline Exhaust Fan (200mm)
Brand: Fanco
SKU: EXVUV200
Price: 389.00 AUD
Availability: InStock

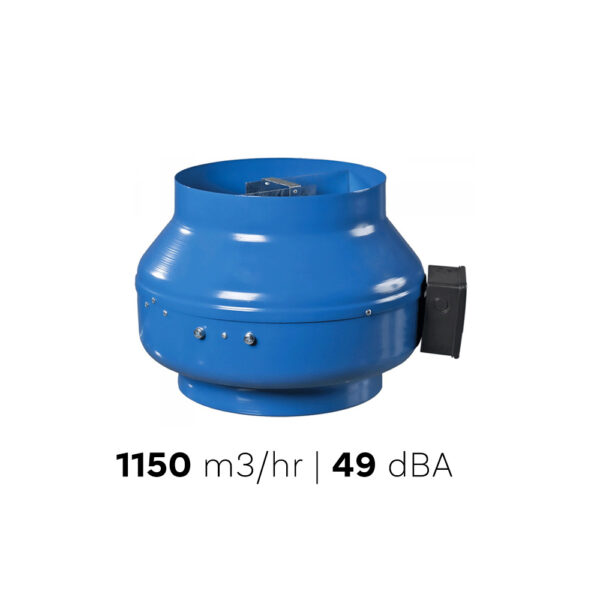

VKM Centrifugal Inline Exhaust Fan (200mm)

The Fanco VKM range of inline fans are quality fans that are normally connected to flexible ducting and may be used for exhaust, heat/air transfer and other applications that may need an exhaust fan. This VKM is designed to accommodate 200mm ducting. View the tabs below for more information including technical specifications.

Power Consumption (W)	193w
Fan Capacity:	1100 m3/hr (306 l/s)
Noise level at 3m ([dBA])	51dBA
Ductable:	Yes (200mm duct diameter)

Save

Pre-Order Product: ETA Early Nov

Description

Features of the VKM Centrifugal Exhaust Fan

Single phase motor with built in thermal overheating protection.
The ball bearing motor has a service life up to 40,000 hours at continuous operation
The motor has IPX4 ingress protection rating.
Casing manufactured from high quality steel with a polymeric coating.

Download VKM Centrifugal Spec Sheet

VKM Exhaust Fan Further Information

The VKM exhaust fan is a high quality inline extraction fan well suited for applications such as bathroom ventilation and heat transfer / sub floor ventilation. This 200mm inline fan can be connected to 200mm ducting to create an inline fan extraction system. The VKM range of inline fans can be speed controlled via the dimmer style controller, which is listed as an accessory at the bottom of this page.

logofanco

Additional information

Model Number	EXVUV200
Brand	Fanco
Colour	Blue
Material	Metal
Installation	Requires Hardwiring
Capacity m3/hr	1100 m3/hr
Capacity l/s	306 l/s
Motor Wattage	193w
Noise	51 dB(A)
Voltage	230
Current	0.84A
IP Rating	IPX4
Ductable	Yes
Duct Size	200mm
Warranty	Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply).
Exhaust Disclaimer	Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. , Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. , Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)

Performance

Performance Comparison Between Sizes

Variable	m3/hr	l/s	RPM (min-1)	Wattage	dB(A) at 3m
VKM 100	270m3/hr	75l/s	2830	73w	47dB(A)
VKM 125	355m3/hr	99l/s	2800	75W	47dB(A)
VKM 150	555m3/hr	154l/s	2705	98w	47dB(A)
VKM 200	1100m3/hr	309l/s	2780	193w	51dB(A)
VKM 250	1310m3/hr	364l/s	2790	194w	52dB(A)
VKM 315	1880m3/hr	523l/s	2720	296w	54dB(A)

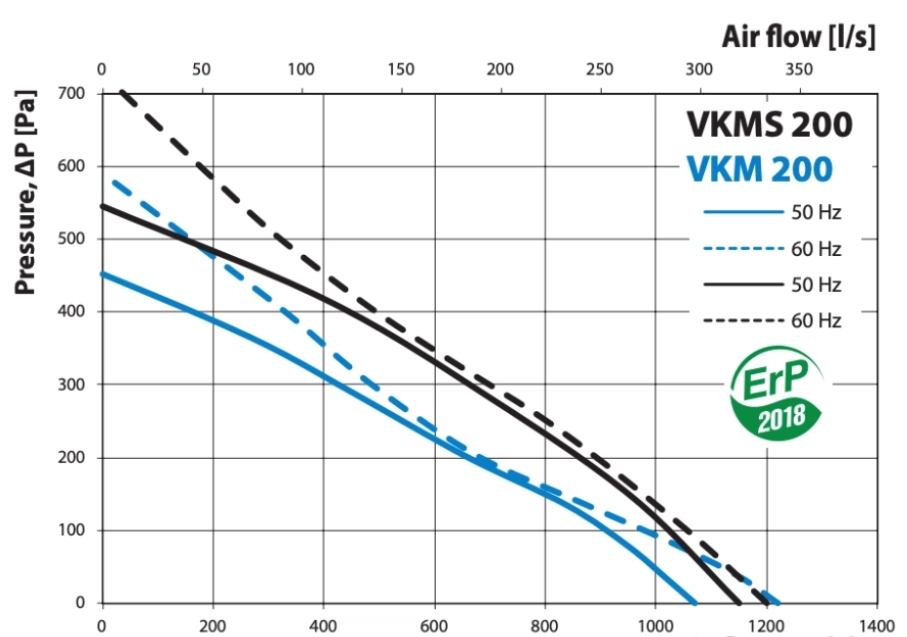

Pressure Curve

vkm 200 curve m3hr
tt 100 curve m3hr Save

Save

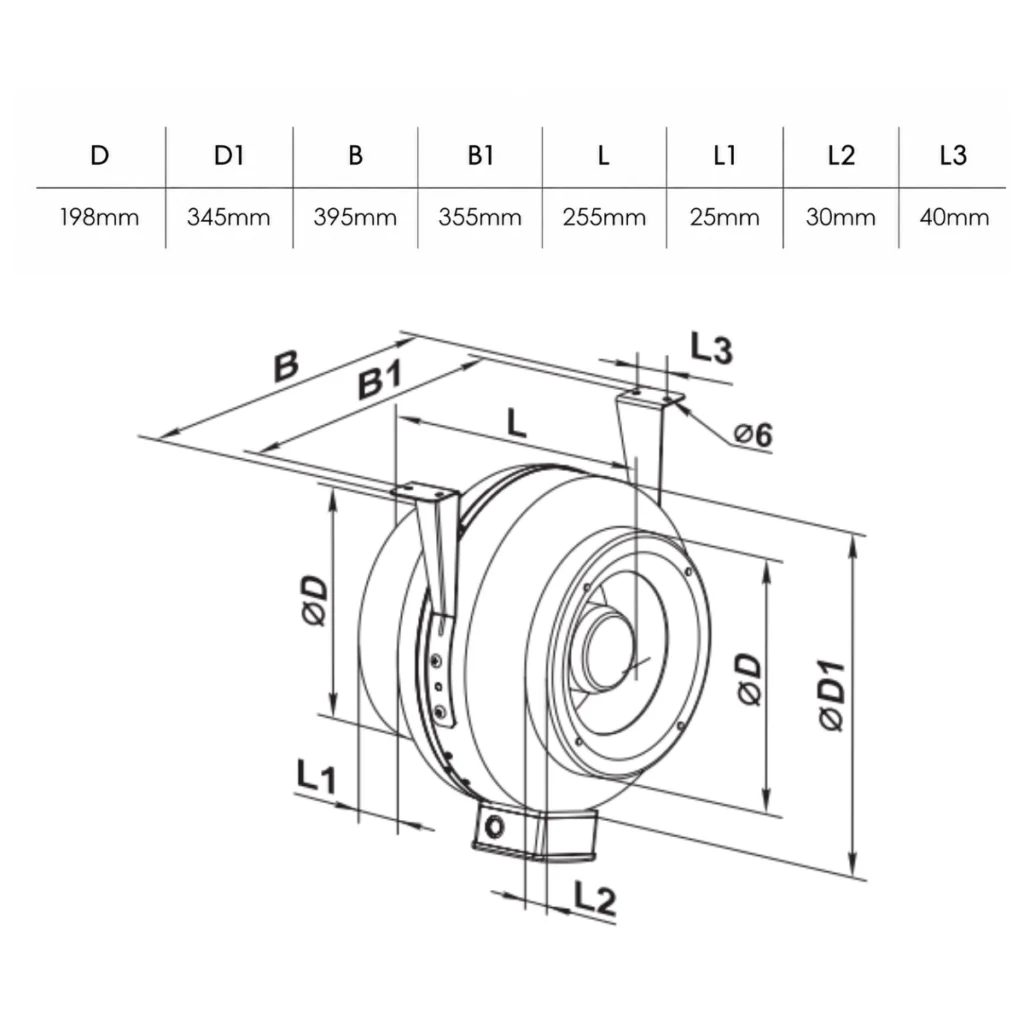

Dimensions

VKM centrifugal

Dimensions	Measurement (mm)
D	198mm
D1	344mm
B	390mm
B1	350mm
L	250mm
L1	25mm
L2	29mm
L3	40mm

Save

FAQ

What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
