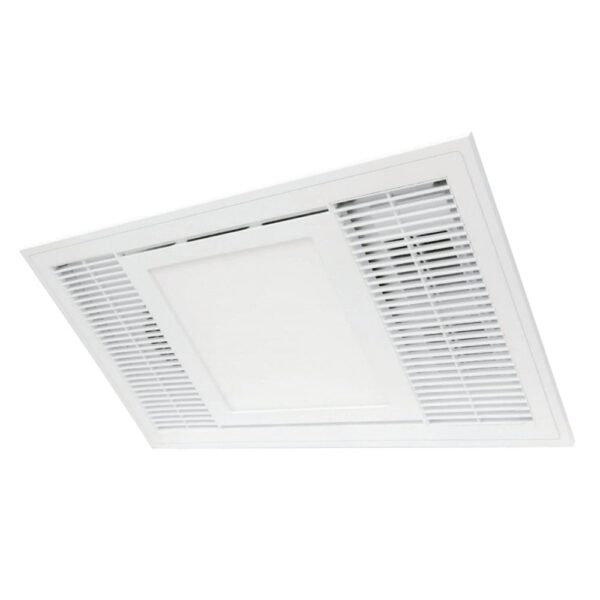

Ventair Madrid Exhaust Fan 3 in 1 with LED Light (White)
$399.00
Ventair Madrid 3-in-1 Exhaust Fan with LED Light featuring a modern and sleek fascia, this unit comes equipped with a powerful 20w integrated LED light designed to deliver ample brightness for a bathroom. With a lumen count of 1900, the light will provide adequate illumination. Boasting an extraction rate of 330 m3/hr, this unit suits medium-sized to large-sized bathrooms. The package also includes 3 meters of 125mm flexible ducting and an external vent for added convenience.
This product is currently Out of Stock and has no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
Description
Features of the Ventair Madrid 3 in 1 Exhaust Fan
- Stylish ultra-slim design
- IPX2 Rated
- Exhaust 330 m3/hr
- Energy Saving 20w 4000k LED centre panel light with a maximum Lumen output of 1900lm
- Energy efficient self-regulating 2 heat level fan heater
- High air movement
- 50W Motor
- Side ducting (150mm compatible)
Ventair Madrid 3 in 1 Exhaust Fan Further Information
Includes a 4 switch wall control panel designed to provide convenient control of the light, extraction fan, and two switches for the heater. The first switch enables the heater to function at a low level of 1400w, and upon activating the second switch, the heater will switch to ‘boost’ mode, offering a high level of 2000w. It is important to note that the heater will only function when the first switch is turned on.
Additional information
| Model Number |
MAD31FHLX |
|---|---|
| Brand |
Ventair |
| Colour |
White |
| Installation Location |
Ceiling |
| Installation |
Requires Hardwiring |
| Capacity m3/hr |
330 m3/hr |
| Capacity l/s |
91.6 L/S |
| Motor Wattage |
50w |
| Noise |
49.5 dB(A) |
| IP Rating |
IPX2 |
| Space Required for Install |
Please allow up to 220mm |
| Ductable |
Yes |
| Duct Size |
125mm |
| Duct Location |
Side Ducted |
| Warranty |
Ventair: 2 year in home warranty + 3 year motor replacement warranty |
| Exhaust Disclaimer |
Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. ,Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. ,Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
Performance
Performance

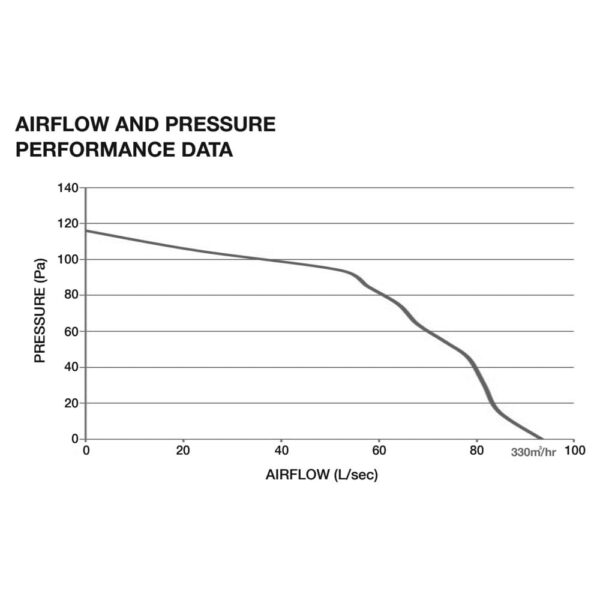

Exhaust Performance
| m3/hr | 330m3/hr |
|---|---|
| l/s | 91.6 l/s |
| Motor Wattage | 50w |
| Fan Type | Centrifugal |
Light Performance
| Light Type | LED Panel Light |
|---|---|
| Light Wattage | 20 watts |
| Lumens | 1900Lm |
| Light Colour | 4000k Natural |
Heat Performance
| Type | Fan Driven |
|---|---|
| Heat Wattage L/H | 40 watts |
| Fan Power | 40w |
| Sound Level | 49.5 dB(A) |
Dimensions
Dimensions
Dimensions
| Fascia Size | 630mm x 350mm |
|---|---|
| Cutout Size | 590mm x 350mm |
| Minimum installation depth | 220mm |
| Ductable: | Compatible with 150mm ducting |
FAQ
FAQ
What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
