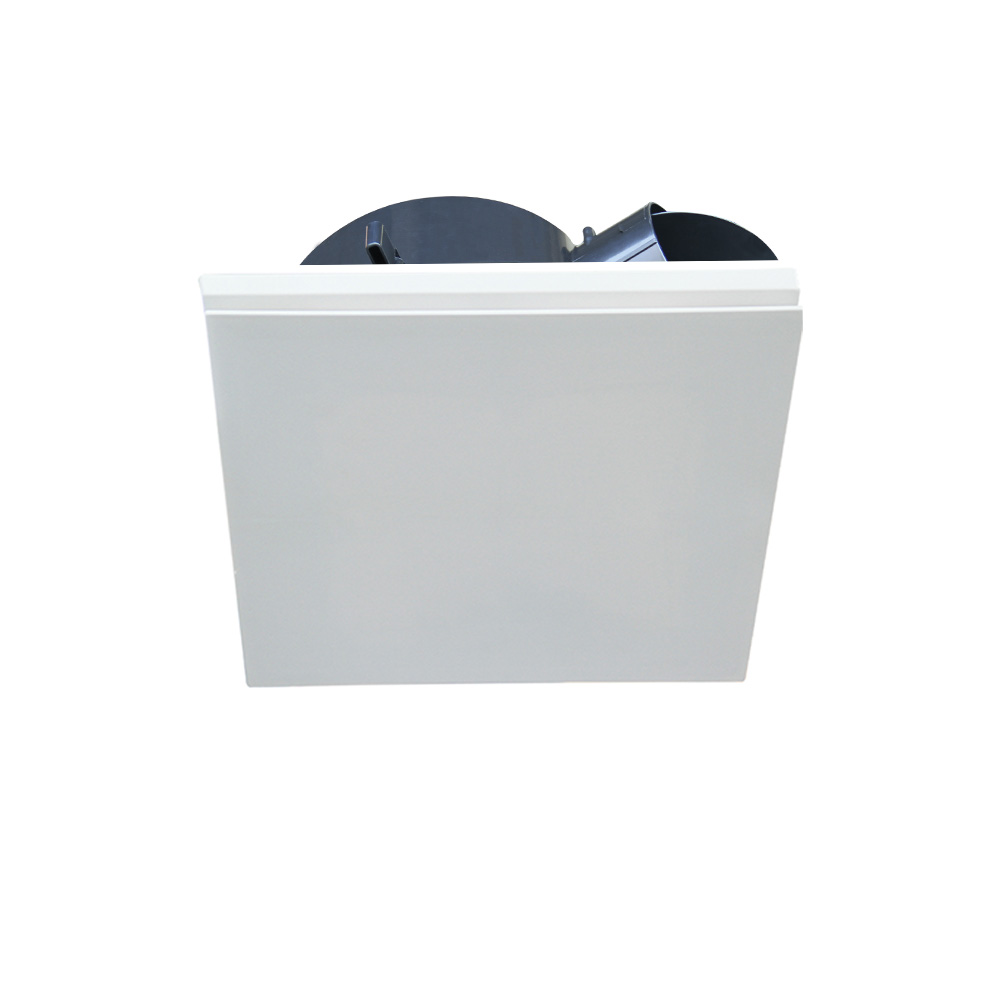

Ventair Airbus AC 300 Low Profile Exhaust Fan Square
$209.00
The Ventair Airbus AC 300 is a low profile side ducted exhaust fan. This fan comes with a high quality ball bearing motor, engineered to maintain high airflow over longer duct runs (see pressure curve tab below for details). A back-draft stopper and lead & plug is included.
| Installation Location: | Ceiling |
| Fan Capacity: | 550m3/hr (152.78 l/s) |
| Hole (Cutout) Size: | 300mm Round |
| Face Size: | 328mm |
| Ductable: | Yes, Side Ductable (150mm duct diameter) |
Description
Features of the Airbus 300 Exhaust Fan Sqaure
- Motor Power: 106w
- IPX4 Rating
- High-quality Ball Bearing Motor
- Rotatable Fascia for easy room alignment
- Back-draft shutter included
- Easy to install and clean
Ventair Airbus 300 Exhaust Fan Further Information
The Ventair Airbus AC 300 has a powerful motor and is designed to maintain airflow over extended duct runs – see the dimensions and performance tab for airflow loss per duct length. Available with both a round or square, slimline fascia.
This Airbus AC 300 model is ideal for:
-
- Laundries
- Bathrooms
- General Ventilation
The installation manual can be accessed through the link: Installation Manual
Additional information
| Model Number | PVPXHF300SQR |
|---|---|
| Brand | Ventair |
| Colour | White |
| Material | Plastic |
| Installation Location | Ceiling |
| Installation | Comes With Lead & Plug |
| Capacity m3/hr | 550 m3/hr |
| Capacity l/s | 152.78 l/s |
| Motor Wattage | 106w |
| Noise | 46 dB(A) |
| Voltage | 240v |
| Current | Data Not Available |
| IP Rating | IPX4 |
| Hole Size | 300mm |
| Hole Shape | Round |
| Fascia Shape | Square |
| Ductable | Yes |
| Duct Size | 150mm |
| Duct Location | Side Ducted |
| backdraft-shutter | Yes |
| Warranty | Ventair Airbus: The manufacturer offers a 5 year warranty on the motor (conditions apply) |
| Product Type | Exhaust Fan |
| Exhaust Disclaimer | Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible., Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
| Barcode Number | 9339310015291 |
Dimensions and Performance
Dimensions and Performance
