Ventair

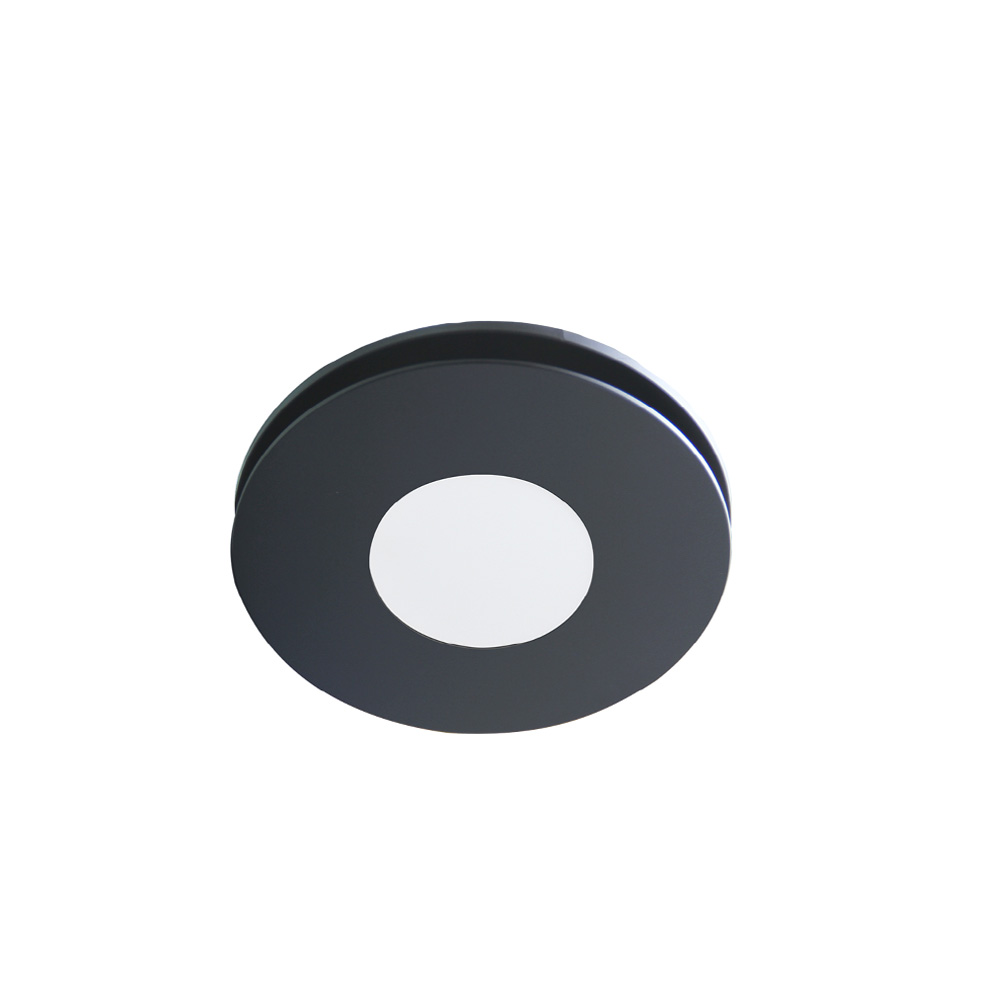

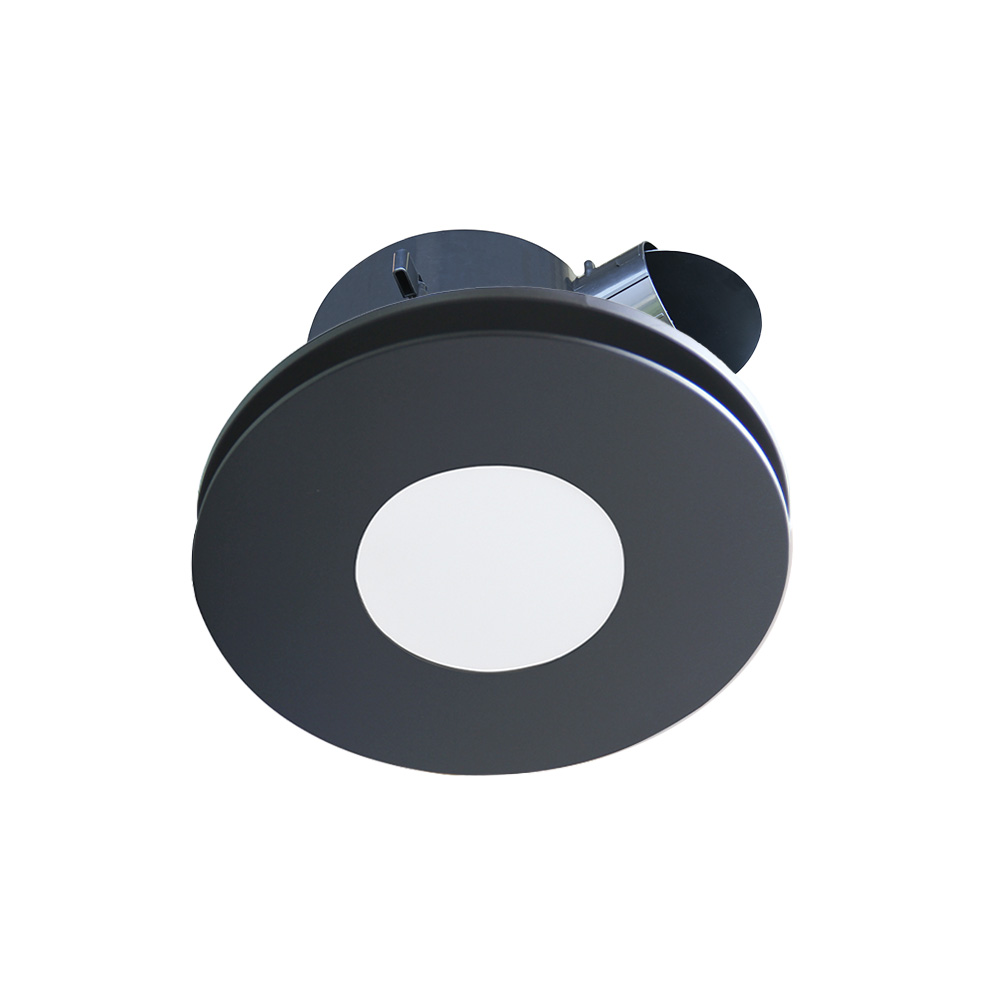

Ventair Airbus Low Profile Exhaust Fan With LED Light Round 200mm (Black)

$154.00

The Ventair Airbus with LED light is a low profile side ducted exhaust fan. This fan comes with a high quality ball bearing motor, engineered to maintain high airflow over longer duct runs (see pressure curve tab below for details). A back-draft damper, 10w LED light and lead & plug are included. The LED light is even connected to its own lead and plug, making it possible to use the light and fan at the same time, or on their own.

Installation Location:Ceiling
Fan Capacity: 152m3/hr (42 l/s)
Hole (Cutout) Size:240mm Round
Face Size:272mm Round
Ductable:Yes, Side Ductable (100mm duct diameter)

Save

Save

buy from lumera with confidence
SKU: W-ECVEAIM8-RBLED Categories: , , , , , , ,
Description

Features of the Airbus 200 Exhaust Fan With Light (LED)

  • Can switch light on without using the fan
  • Ideal for multi-story applications
  • High quality Japanese Ball Bearing Motor
  • 10w LED light panel
  • Super low profile
  • Easy to clean (removable grille)
  • Back-draft shutter included
  • Easy to install*

*as long as you have a switched surface socket for a DIY installation.

logo-ventair

Ventair Airbus 200 Exhaust Fan Further Information

Suits duct runs of between 0-3m (for longer duct runs, see the larger models 225 and 250) – see the pressure curve tab below for airflow loss per duct length.

This Airbus 200 model is ideal for:

  • Toilets & Powder rooms
  • Laundries
  • General Ventilation

Rated to >50,000hrs running time
Rated to > 10,000 start cycles

Airbus LED Light Information

LED Wattage: 10w
Lumens: 642Lm
Light Colour: 4200K Neutral White
IP Rating: IPX44

Additional information
Weight4 kg
Model Number

PVPX200 (Motor), ABGLED200BL-RD (Fascia)

Brand

Ventair

Colour

Black / Dark

Material

Plastic

Installation Location

Ceiling

Installation

Comes With Lead & Plug

Capacity m3/hr

152 m3/hr

Capacity l/s

42 l/s

Motor Wattage

30w

Noise

38 dB(A)

Voltage

240v

Current

Data Not Available

IP Rating

IPX4

Hole Size

240mm

Hole Shape

Round

Fascia Shape

Round

Space Required for Install

Requires a minimum of 200mm of ceiling space.

Ductable

Yes

Duct Size

100mm

Duct Location

Side Ducted

backdraft-shutter

Yes

Light

Included

Lumen Output

642Lm

Light Type

LED Panel

Light Wattage

10w

Warranty

Ventair Airbus with Light: Ventair offers a 5 year warranty on the motor & 2 years on the LED panel (conditions apply).

Exhaust Disclaimer

Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible., Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)
