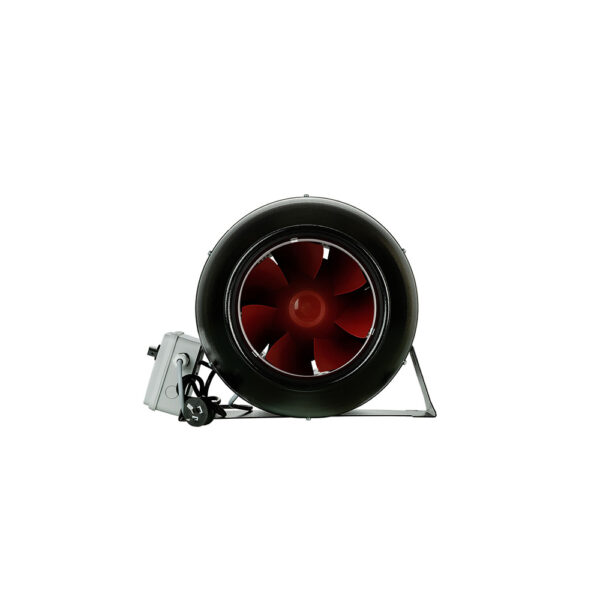

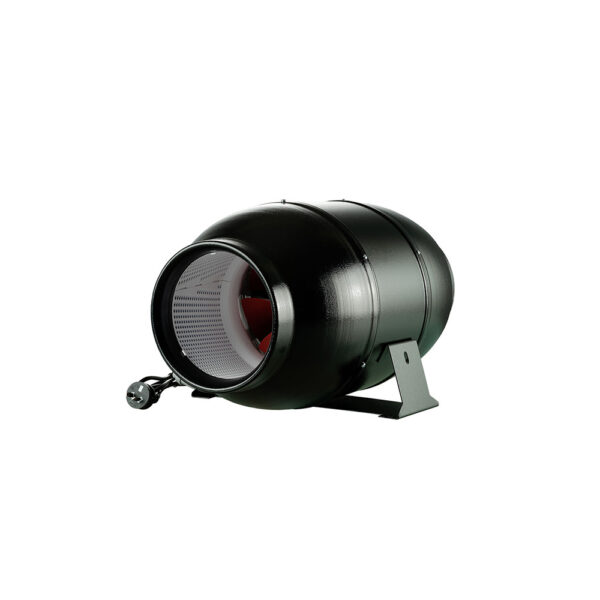

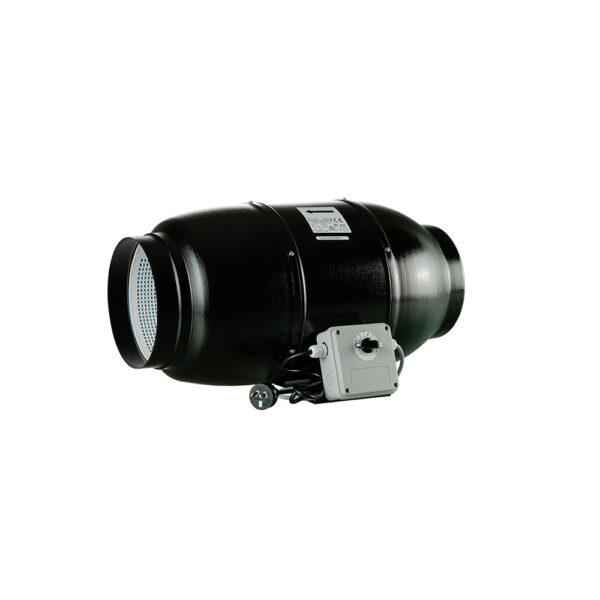

TT Silent Mixflow Inline Exhaust Fan With Plug (200mm)
$549.00
The TT Silent Inline fan is an innovative new product designed specifically to operate quietly. With a built-in 50mm layer of mineral wool sound insulation, this product ensures quiet operation without compromising on performance. View the tabs below for more information, including technical specifications. The mixflow inline fan comes with a lead & plug and a 4-position switch.
The fan offers three speed settings, which can be selected by connecting to the corresponding winding. Engineered for exceptionally quiet performance, it’s ideal for noise-sensitive environments.
| Power Consumption (W) | 110w |
| Fan Capacity: | 1020 m3/hr (283 l/s) |
| Noise level at 3m ([dBA]) | 36dBA |
| Ductable: | Yes (200mm duct diameter) |
Description
Features of the TT Sient Mixflow Exhaust Fan
- Exceptionally quiet – only 36dBA on the high speed.
- Single phase motor with built-in thermal overheating protection
- The ball bearing motor has a service life up to 40,000 hours at continuous operation
- The motor has IPX4 ingress protection rating.

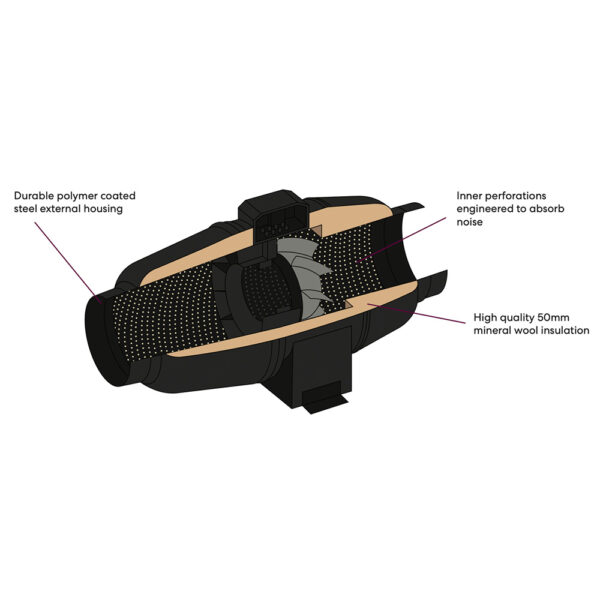

- A polymer coated steel casing with 50mm mineral wool insulation make this fan super quiet.
- Comes with lead & plug for DIY installation

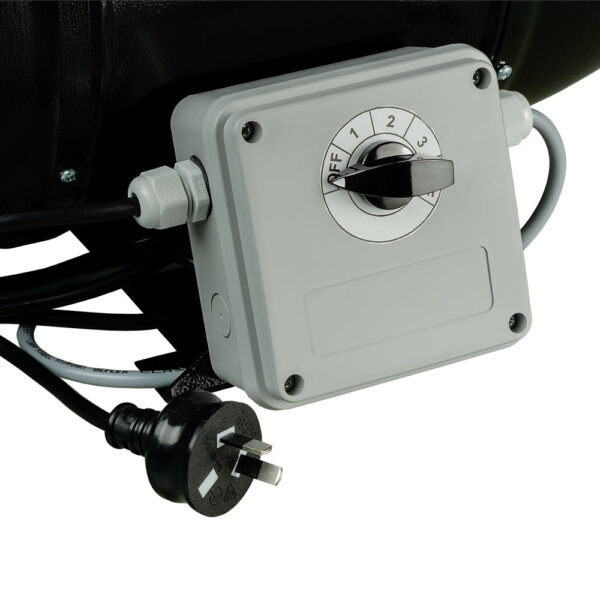

- Features 3-speeds switch
- LOW – 731 m³/hr, 2376 RPM, 30 dB(A)
- MED – 961 m³/hr , 2382 RPM, 34 dB(A)
- HIGH – 1020 m³/hr, 2445 RPM, 36 dB(A)
Download TT Mixflow Spec Sheet
TT Silent Mixflow Exhaust Fan Further Information
The TT Mixflow exhaust fan is a high quality inline extraction fan well suited for applications such as bathroom / toilet ventilation and sub floor / heat transfer. This 200mm inline fan can be connected to 200mm ducting to create an inline fan extraction system.
Additional information
| Model Number |
EXVUTTS200RVB |
|---|---|
| Brand |
Fanco |
| Colour |
Black / Dark |
| Material |
Metal |
| Installation |
This fan comes with a lead and plug for connection to a powerpoint |
| Capacity m3/hr |
1020 m3/hr |
| Capacity l/s |
283 l/s |
| Motor Wattage |
110w |
| Noise |
36 dB(A) |
| Voltage |
230 |
| Current |
0.49A |
| IP Rating |
IPX4 |
| Ductable |
Yes |
| Duct Size |
200mm |
| Warranty |
Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Exhaust Disclaimer |
Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. ,Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. ,Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
Pressure Graph
Pressure Graph
| Variable | m3/hr | l/s | RPM (min-1) | Wattage | dB(A) at 3m |
|---|---|---|---|---|---|
| TT Silent 200 | 1020m3/hr | 284l/s | 2445 | 110w | 36dB(A) |

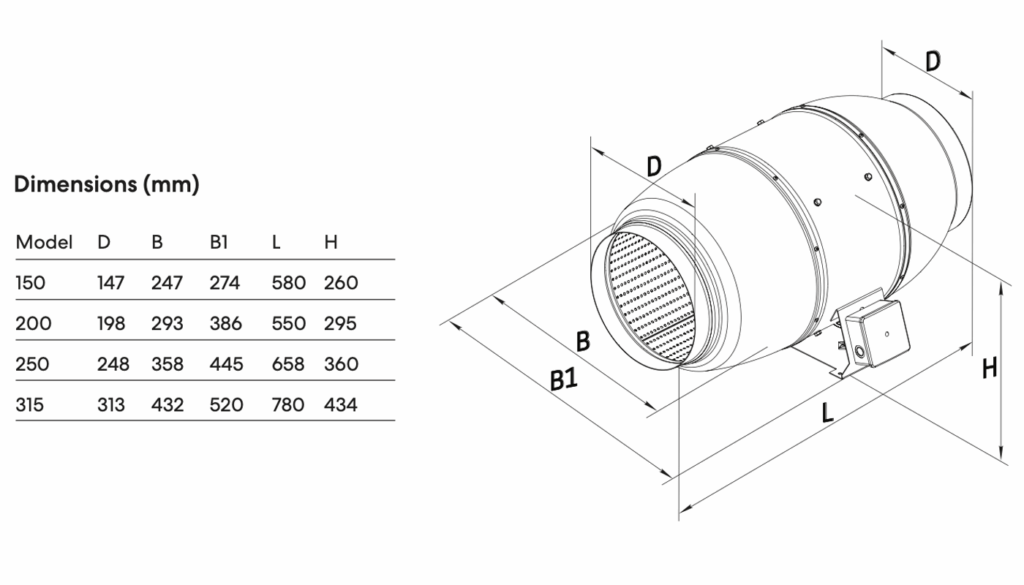

Dimensions
Dimensions
FAQ
FAQ
What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
