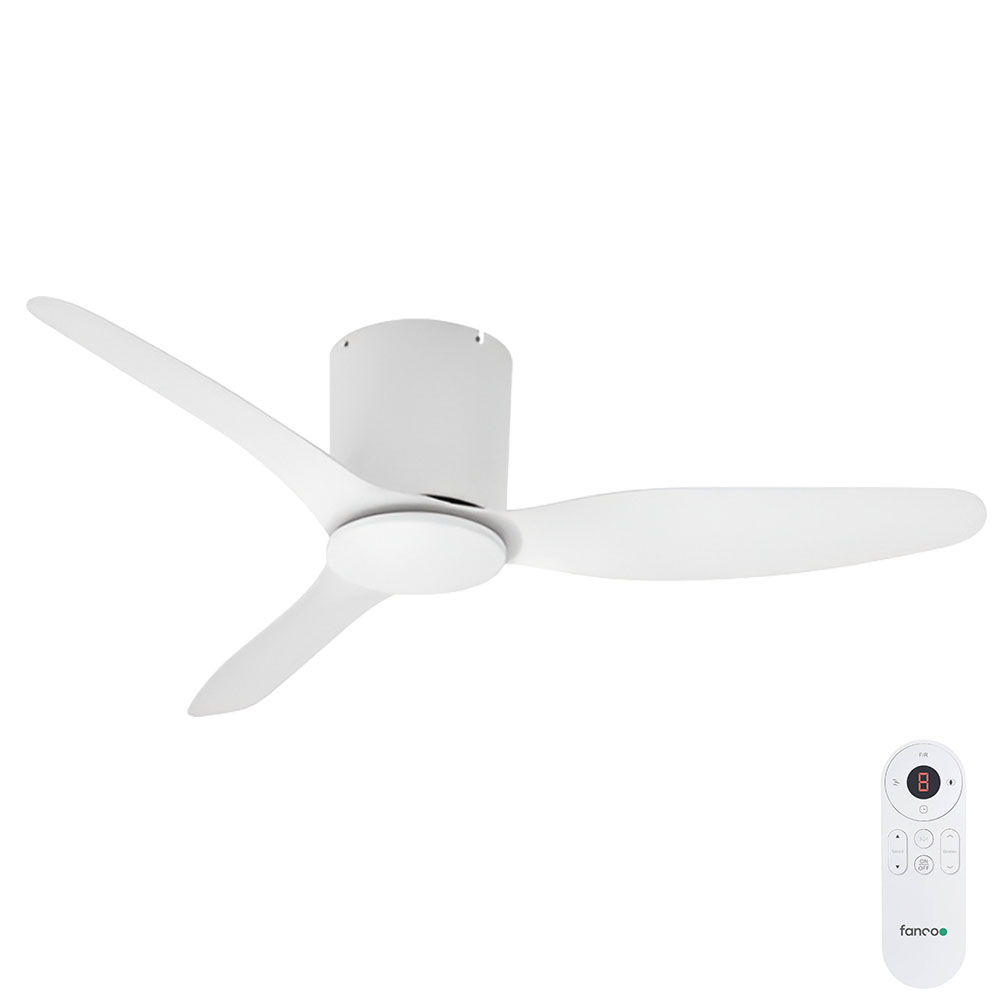

Studio DC Low Profile Ceiling Fan with Wall Control 48″ (White)

Original price was: $379.00.Current price is: $339.00.

The Fanco Studio DC Low Profile ceiling fan is a great option for bedrooms with its smaller 48″ blade span. It has a modern design with clean lines and slightly curved ABS plastic blades. Powered by an efficient 30W DC motor the Studio features 3 modern ABS plastic blades which are controlled with the included 6 speed wall controller to move a maximum of 10,170 m3/hr and a gentle breeze on the low speeds while consuming less than 10W.

Indoor Rated48 DiameterWall Control

buy from lumera with confidence
Description

Features of the Studio DC Low Profile Ceiling Fan

  • 3 quality lightweight, ABS plastic blades
  • 48″ (122cm) Diameter
  • Includes wired wall controller
  • Quiet operation
  • 30w energy efficient DC motor
  • Suitable for FLAT ceilings only due to the hugger design
  • Drop from ceiling to lowest part of blade: 210mm (approx) – perfect fan for low ceilings



Why Choose the Fanco Studio DC Low Profile Ceiling Fan?

The Studio Ceiling fans by Fanco is a low profile ceiling fan with a hugger design that enables the fan to sit closer to the ceiling compared to most other fans. The fan comes with an innovative new hardwired DC wall control (see image gallery for a picture of the controller). With a low profile drop of only 210mm from ceiling to blade this fan is a perfect choice for lower than average ceilings.

Please note that the wall controller requires a specific and accurate hole size in the plasterboard/gyprock. Please view the fanco recommended installation guide for more information.

As the face of this wall controller is 85mm square, if you are replacing a standard sized wall control you may need to patch the hole or install a blank plate and install this controller next to it. We would recommend discussing with your installing electrician prior to purchasing to determine suitability.

For the model with light or non SMART variation please see other listings.

Additional information
Brand

Fanco

Warranty

Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product.

Light Filter

Without Light

Model Number

F9020/101A

Size

48" (122cm)

Location

Indoor

Motor Type

DC

Control

Wall Control

Reverse Function

Not reverisble

Light

Model with light is available in a package – see separate listings

Number of Blades

3

Blade Material

Plastic

Blade Colour

White

Motor Colour

White

Suitable Raked Ceilings

No – Suitable for flat ceilings only

Ceiling to Base

240mm (to base of light)

Performance

Performance

Performance 1 2 3 4 5 6
Airflow (m3/hr) 3,377 4,353 5,699 6,857 8,692 10,170
RPM’s 60 88 116 145 174 200
Wattage 5w 6.8w 10.1w 15.4w 21.3w 30.1w

Dimensions

Dimensions

Canopy diameter: 210mm (approx)
Ceiling to Base Drop: 240mm (approx)
Overall Diameter: 48″ (1220mm)

FAQ

FAQ

Click for answer.

Minimum Installation Height

General requirement is to have a minimum of 2.1m from the floor to the blades of the fan.

What's The Difference Between An AC & DC Motor?

DC Motor Advantages:

  • In most cases, they use less energy than an AC motor
  • They are generally the quieter option
  • They will often have more speed options
  • They are reversible for summer / winter use from the remote

AC Motor Advantages:

  • AC fans can be controlled by a wall control (options with pull-cord and remote as well), while DC fans can generally only be controlled by remote.
  • AC fans are still extremely energy efficient
  • Currently more options to choose from with AC motor
  • Often cheaper than a DC motor fan – although you use less electricity running a DC fan, the savings are minimal
