Sanctuary DC Ceiling Fan 92″ with Remote (White with Timber Blades)
$849.00

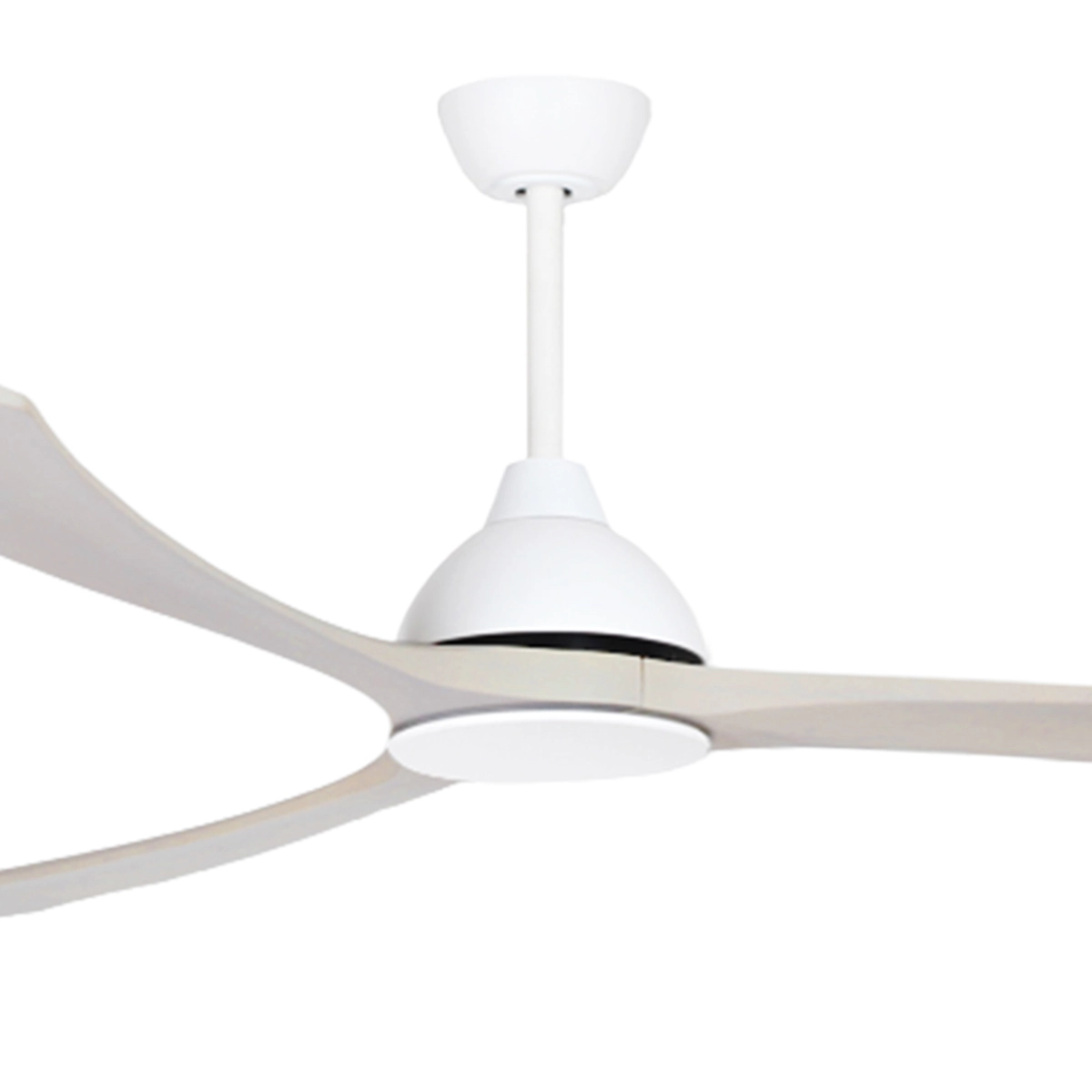

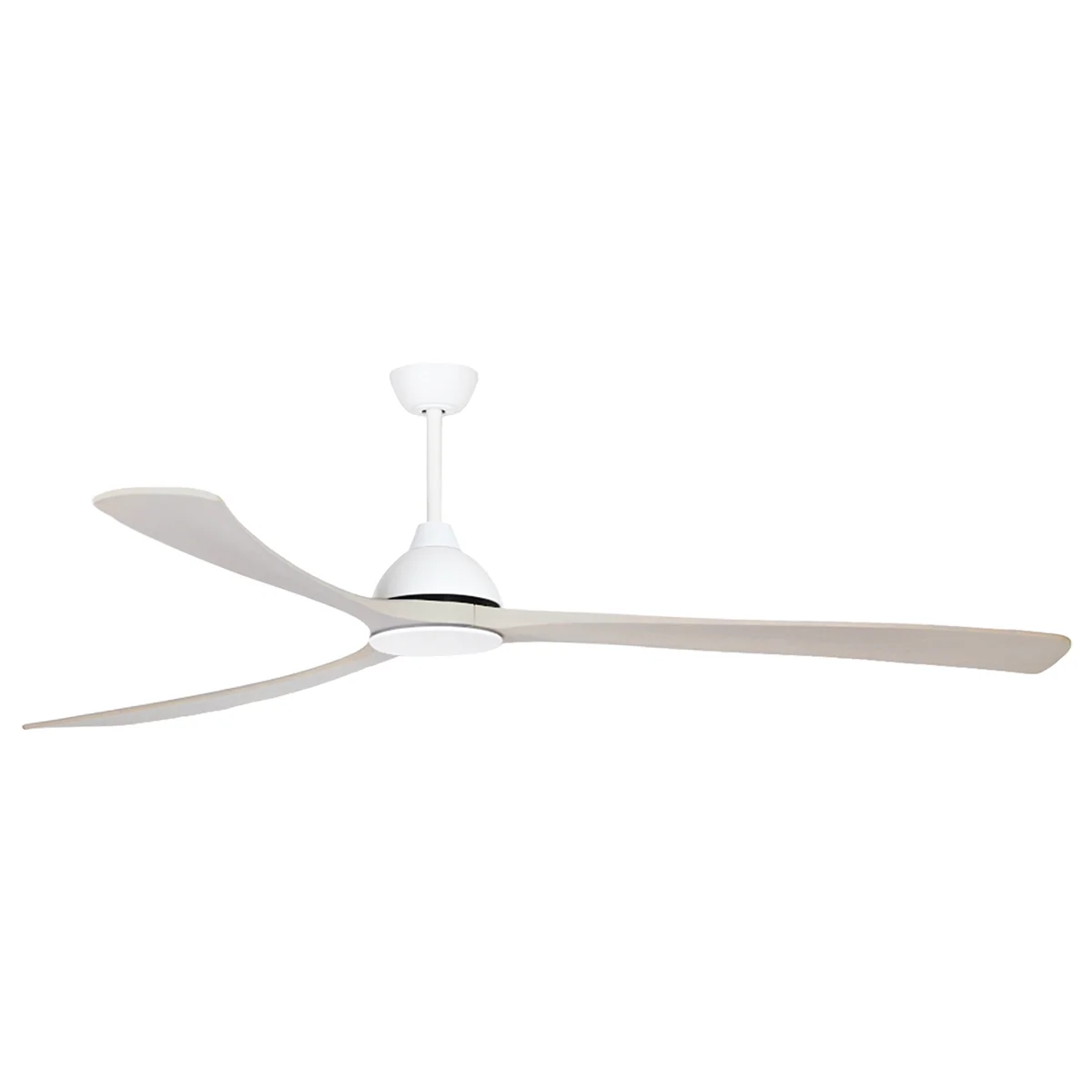

Three 92″ handcrafted timber blades connect to a white motor and form the Sanctuary (W-CFFCSAWH-B6WH). The blades are solid timber and have been coated in a protective sealant ensuring that they can be used outdoors (undercover), as well as in a coastal location. In operation, this fan exhibits a reversible DC motor that offers a choice of 6 speed settings.
Fanco Sanctuary Installation Manual
Please note: Recommended for installation on ceilings with a minimum height of at least 2.7m due to the longer than standard ceiling to blade drop of 447mm. The fan should also be positioned to allow a minimum of 70cm clearance between the tip of the blades and the walls, edge of roof or ceiling beams. If you are installing this fan outdoors, you must allow 1.5m between the tip of the blades and the edge of the roof under any circumstances.
Watch the Fanco Sanctuary DC as featured below:
Pre-Order Product: ETA Late Apr
Description
Fanco Sanctuary DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Timber |
| Overall Diameter (blade tip to blade tip) | 234cm (92″) |
| Approximate Blade Pitch | 10 Degrees |
| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 447mm (459mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Fanco |
| Manufacturers Part Number | KF6030/101A |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
The fan comes with a built-in timer offering 1, 4, or 8-hour settings for convenient, customised operation.
Please note: Solid timber is a natural material, each set of blades may feature slight variations that may lead to minor differences in performance specifications.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 75 | 12 | 3,610 m3/hr |
| 2 | 86 | 15.7 | 7,796 m3/hr |
| 3 | 93 | 22.5 | 11,152 m3/hr |
| 4 | 105 | 30.4 | 12,896 m3/hr |
| 5 | 116 | 40 | 14,058 m3/hr |
| 6 | 127 | 54.8 | 16,235 m3/hr |
With six adjustable speeds, the DC motor delivers powerful airflow while consuming as little as 12W on the lowest setting.
Additional information
| Brand |
Fanco |
|---|---|
| Warranty |
Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Model Number |
KF6030/101A |
| Size |
92" (2330mm) |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
DC |
| Control |
Remote Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Remote |
| Light |
No Light Option |
| Number of Blades |
3 |
| Blade Material |
Timber |
| Blade Colour |
White Wash |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Maximum angle ceiling installation is 15 degrees. |
| Ceiling to Blade |
447mm |
| Ceiling to Base |
459mm |
