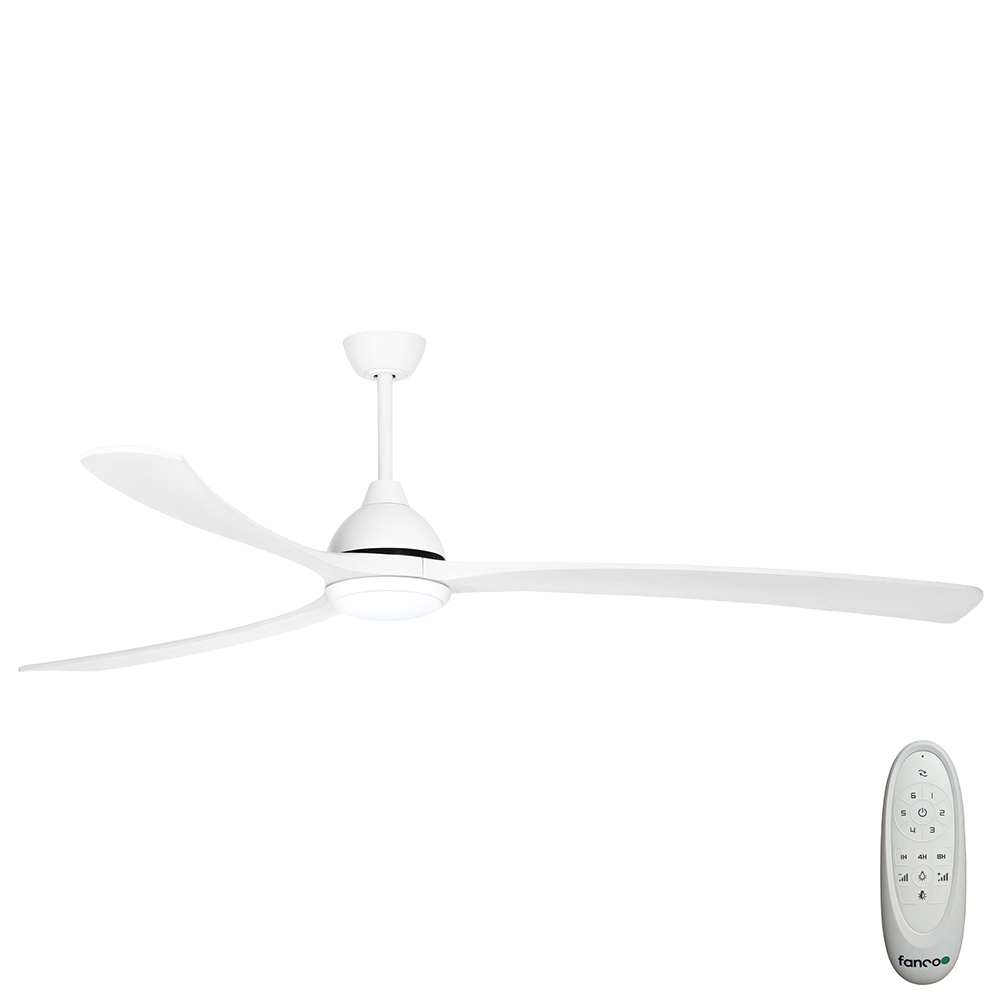

Sanctuary DC Ceiling Fan 86″ with CCT LED Light & Remote (White)
$849.00

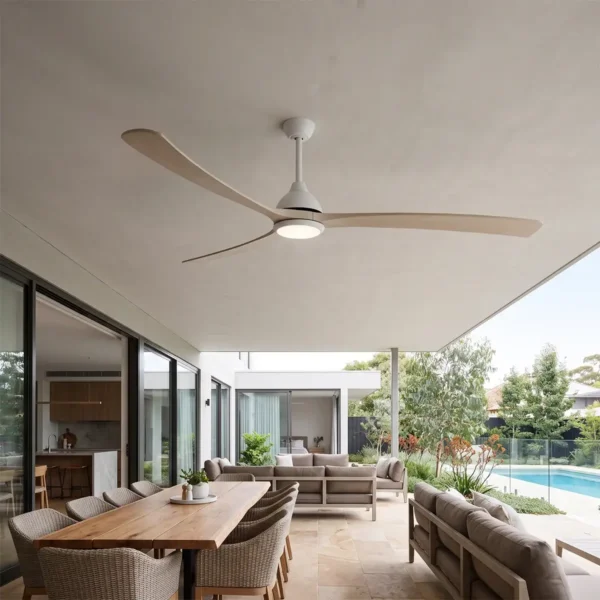

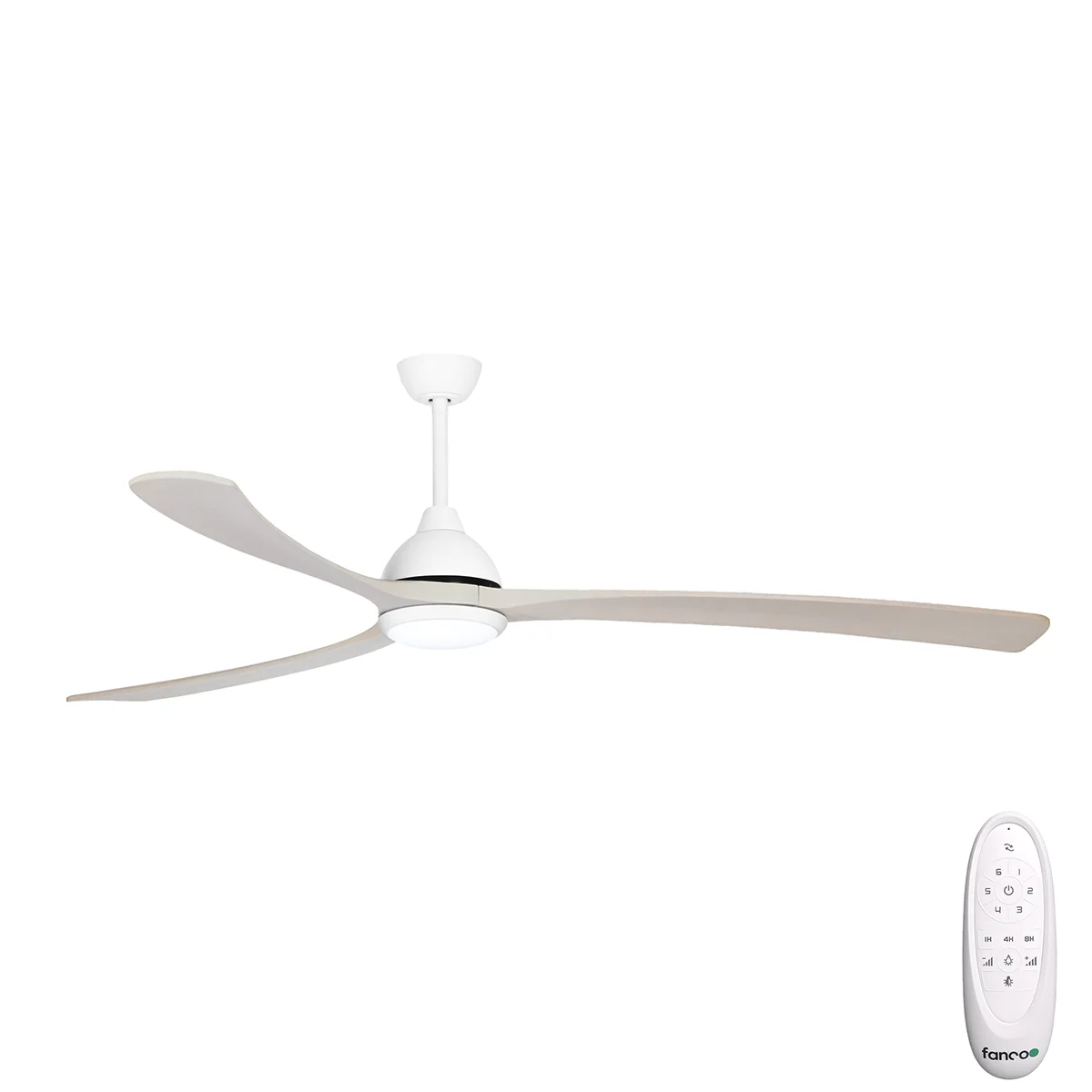

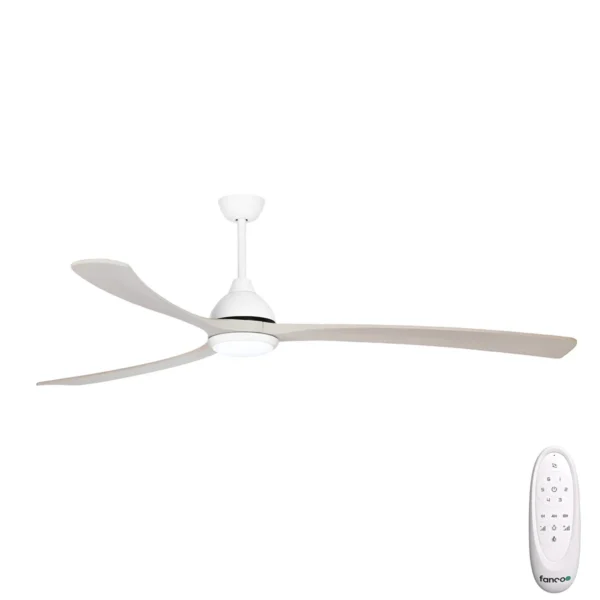

The Fanco Sanctuary DC Ceiling Fan in crisp white combines a sleek, modern design with an expansive 86-inch blade span that delivers impressive airflow of 14,052 m³/hr perfect for large indoor or open-plan living areas. Its durable solid timber blades are finished with a sealer, making them suitable for undercover outdoor, coastal, and alfresco spaces. Powered by an energy efficient DC motor, the fan offers six speed settings, reversible function for year-round comfort, and consumes just 54.3 W at maximum speed. An integrated 24 W CCT LED light adds versatility with dimmable brightness and three selectable colour temperatures: Warm White (3000 K), Natural White (4000 K), and Daylight (6000 K).

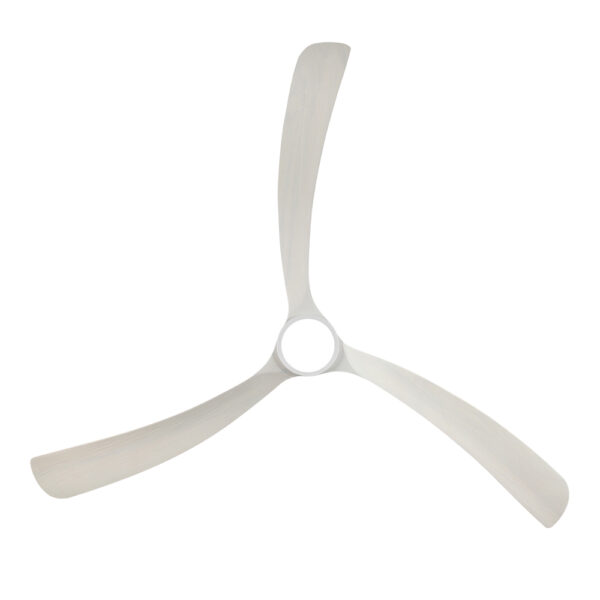

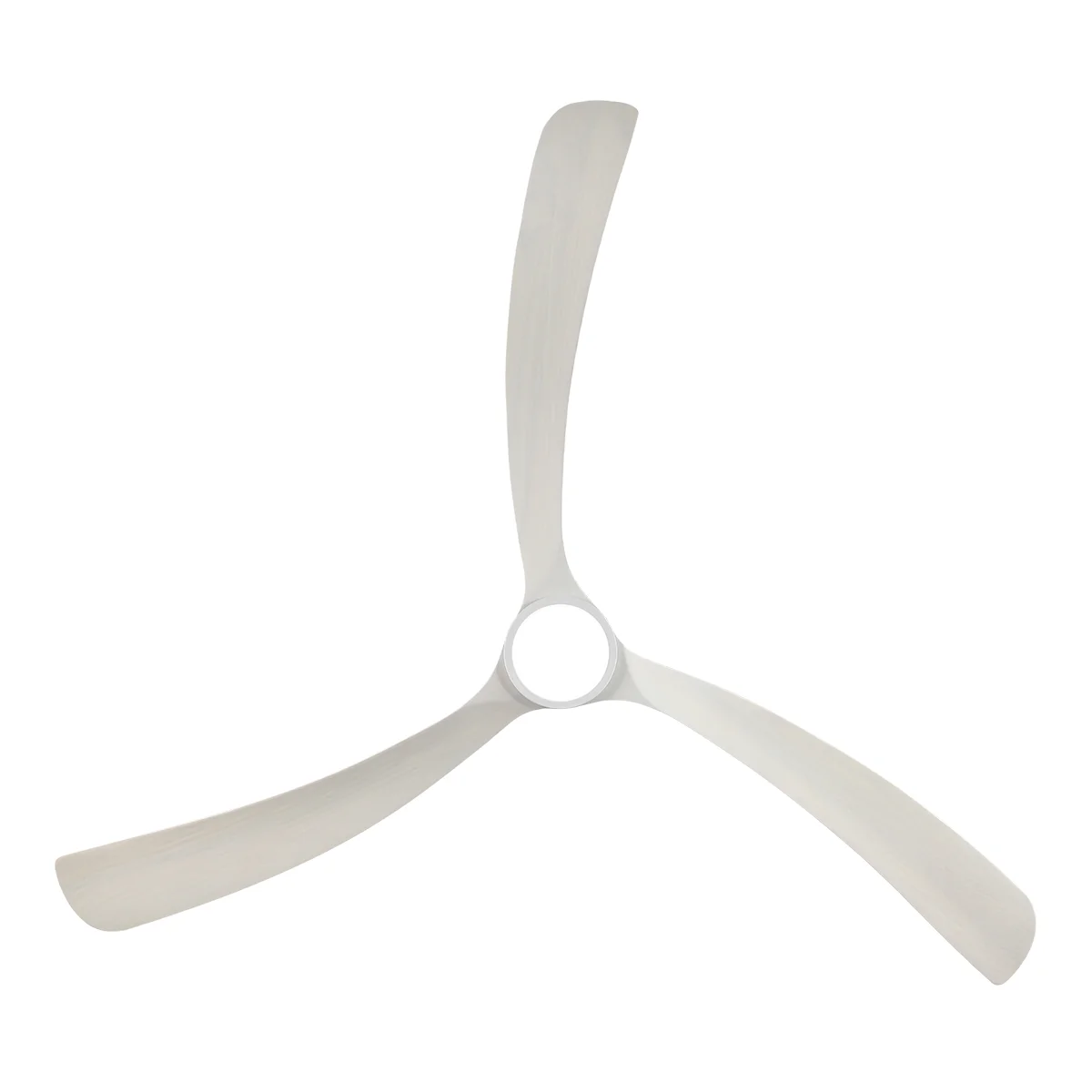

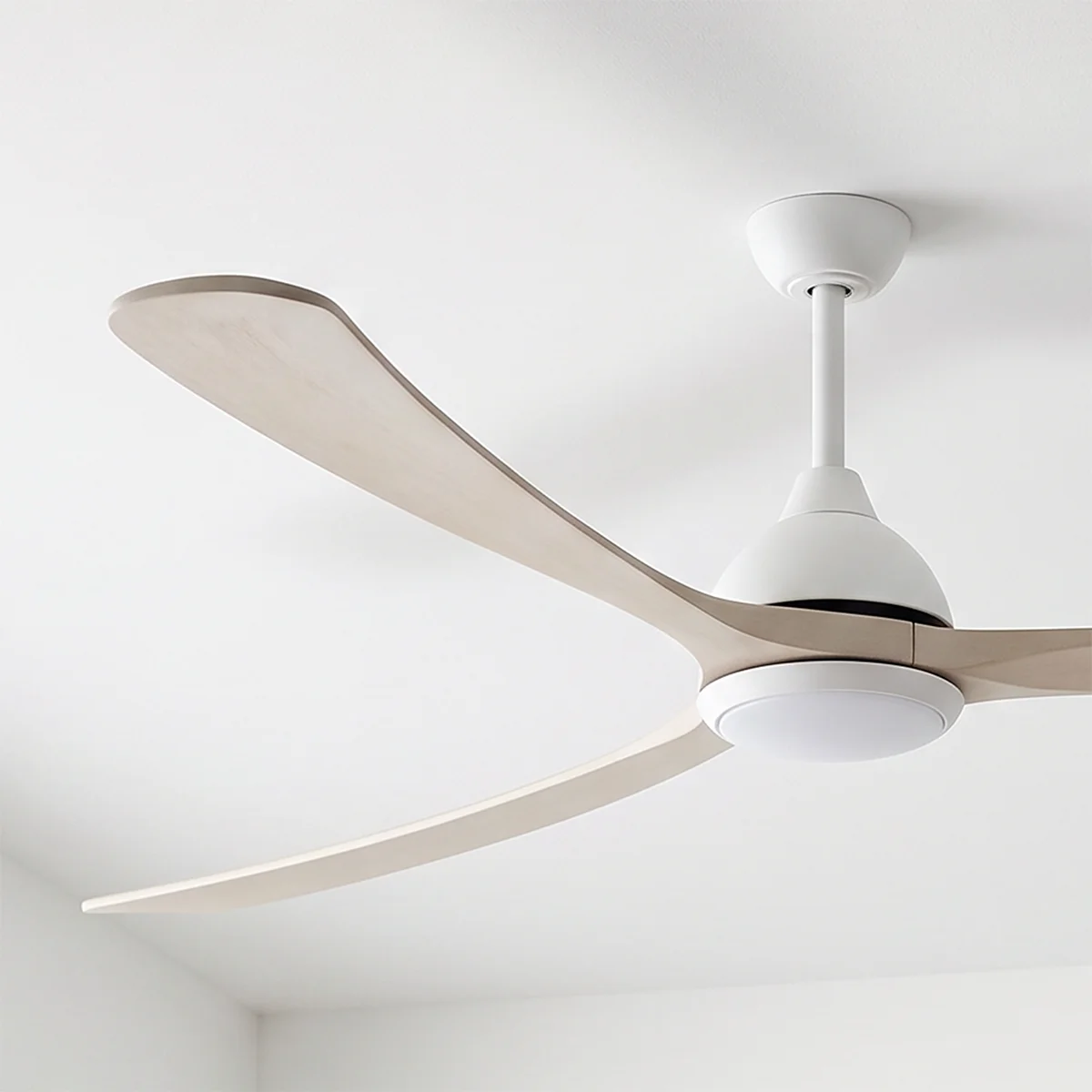

Note: This fan features ‘whitewash’ timber blades; it offers a soft white finish with the natural woodgrain still visible, unlike a fully opaque painted surface.
Fanco Sanctuary Installation Manual
Watch the Fanco Sanctuary DC as featured below:
Fanco Sanctuary DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Timber |
| Overall Diameter (blade tip to blade tip) | 218cm (86″) |
| Approximate Blade Pitch | 10 Degrees |
| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 447mm (517mm to base of light) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Fanco |
| Manufacturers Part Number | KF6021/101A |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
With its built-in timer, you can set the fan to run for 1, 4, or 8 hours to match your needs.
Please note: Solid timber is a natural material, each set of blades may feature slight variations that may lead to minor differences in performance specifications.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 78 | 12 | 3,460 m3/hr |
| 2 | 87 | 15.6 | 6,569 m3/hr |
| 3 | 98 | 22.2 | 9,089 m3/hr |
| 4 | 110 | 30 | 11,246 m3/hr |
| 5 | 121 | 39.8 | 12,005 m3/hr |
| 6 | 131 | 54.3 | 14,052 m3/hr |
With energy-efficient design, the DC motor draws only 12W on its lowest setting and features six speed options to suit your preference.

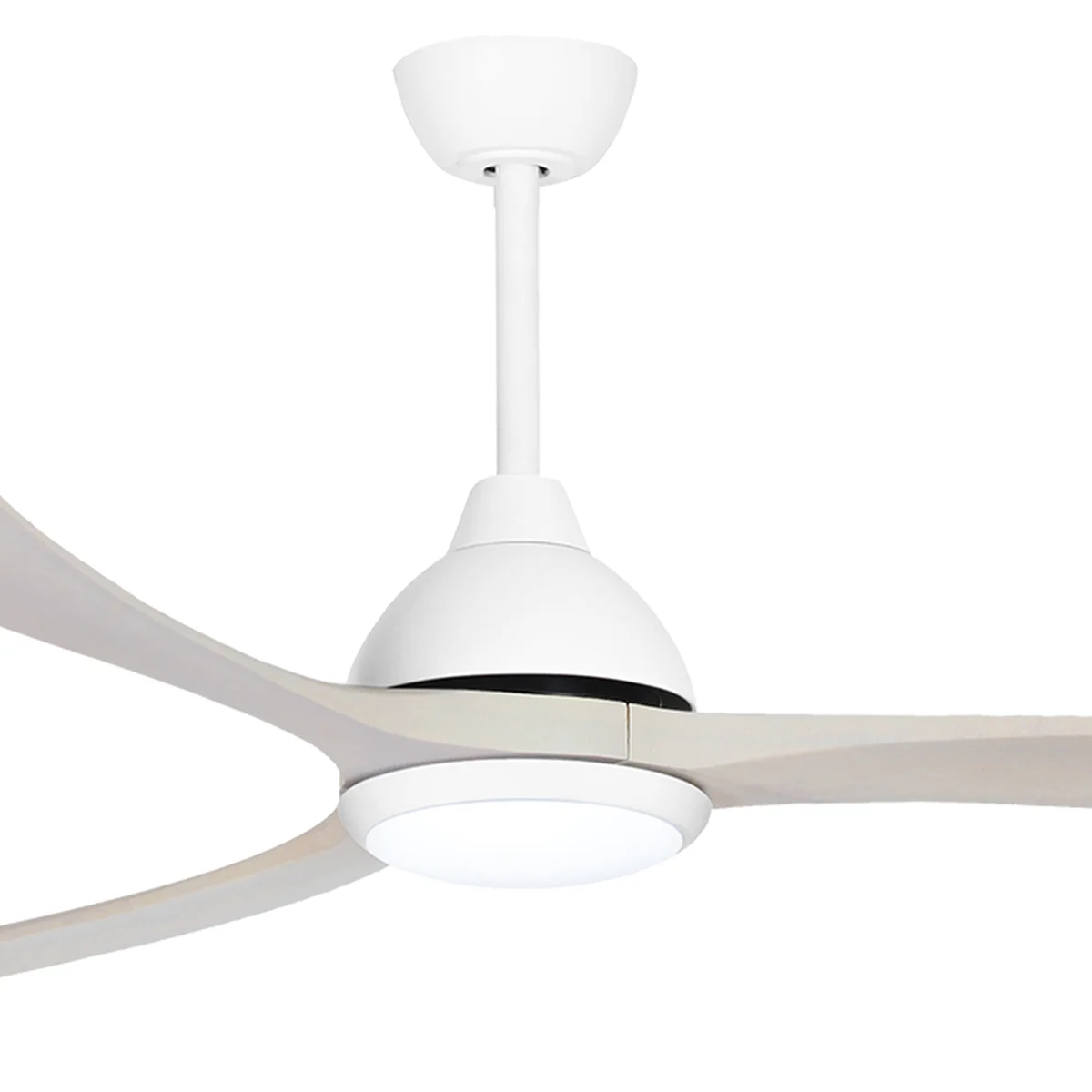

Fanco Sanctuary Light Information
| Light Type | LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 1435lm, 1474lm, 1461lm |
| Light Temperature | 3000k, 4000k, 6000k |
| Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered, and you are able to select the required temperature.

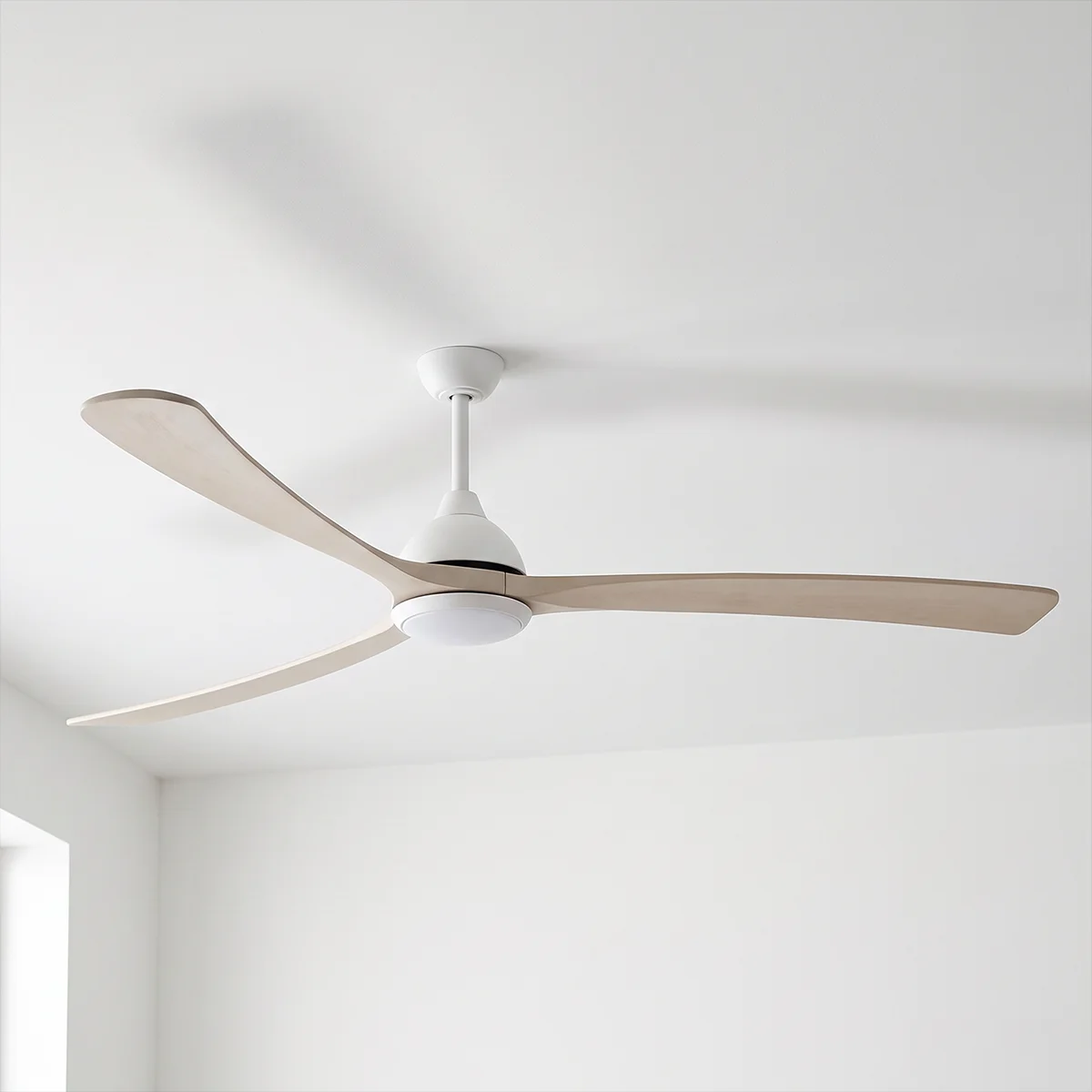

Please note: Recommended for installation on ceilings with a minimum height of at least 2.7m due to the longer than standard ceiling to blade drop of 447mm. The fan should also be positioned to allow a minimum of 70cm clearance between the tip of the blades and the walls, edge of roof or ceiling beams. If you are installing this fan outdoors, you must allow 1.5m between the tip of the blades and the edge of the roof under any circumstances.
| Brand | Fanco |
|---|---|
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Model Number | KF6021/101A |
| Size | 86″ (218cm) |
| Location | Coastal, Indoor, Outdoor – Undercover |
| Motor Type | DC |
| Control | Remote Control |
| Reverse Function | Reversible For Summer & Winter Use – From Remote |
| Light | Included |
| Number of Blades | 3 |
| Blade Material | Timber |
| Blade Colour | Whitewash |
| Motor Colour | White |
| Suitable Raked Ceilings | Yes |
| Raked Ceilings | Maximum angle ceiling installation is 15 degrees. |
| Ceiling to Blade | 447mm |
| Ceiling to Base | 459mm |
