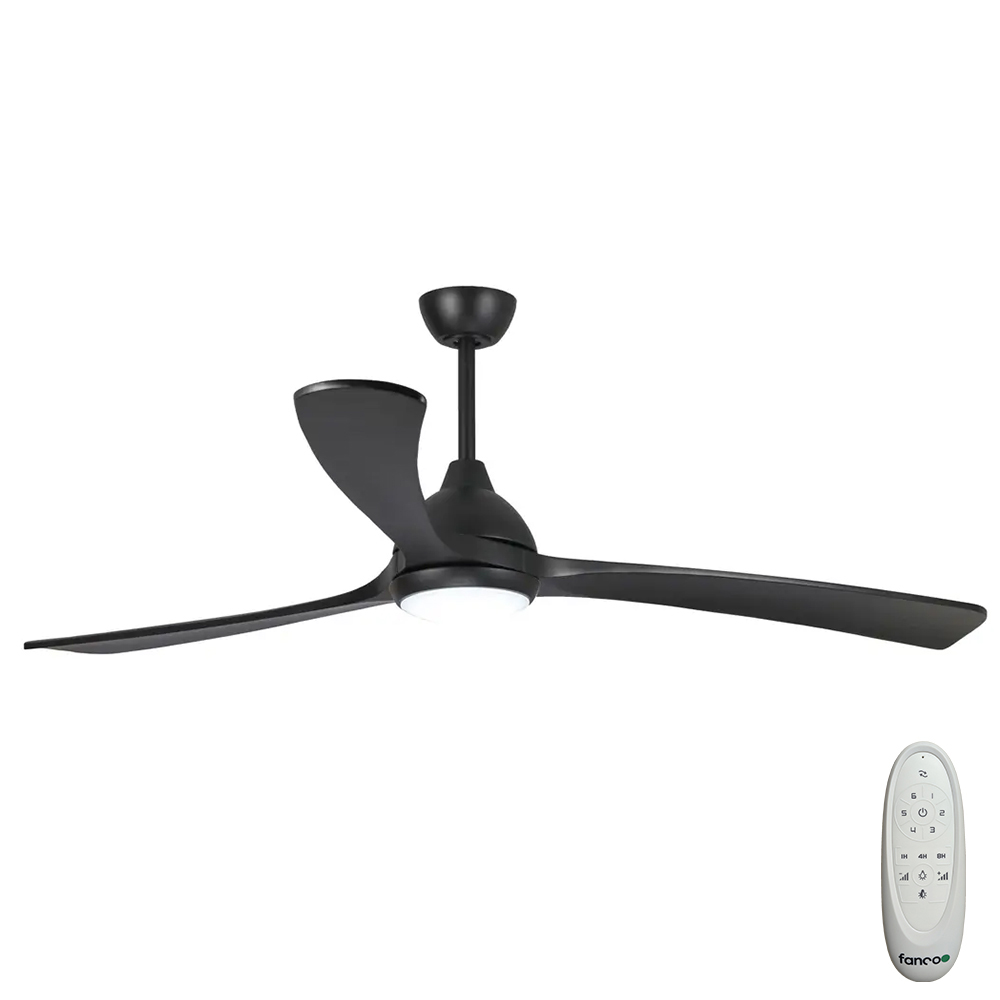

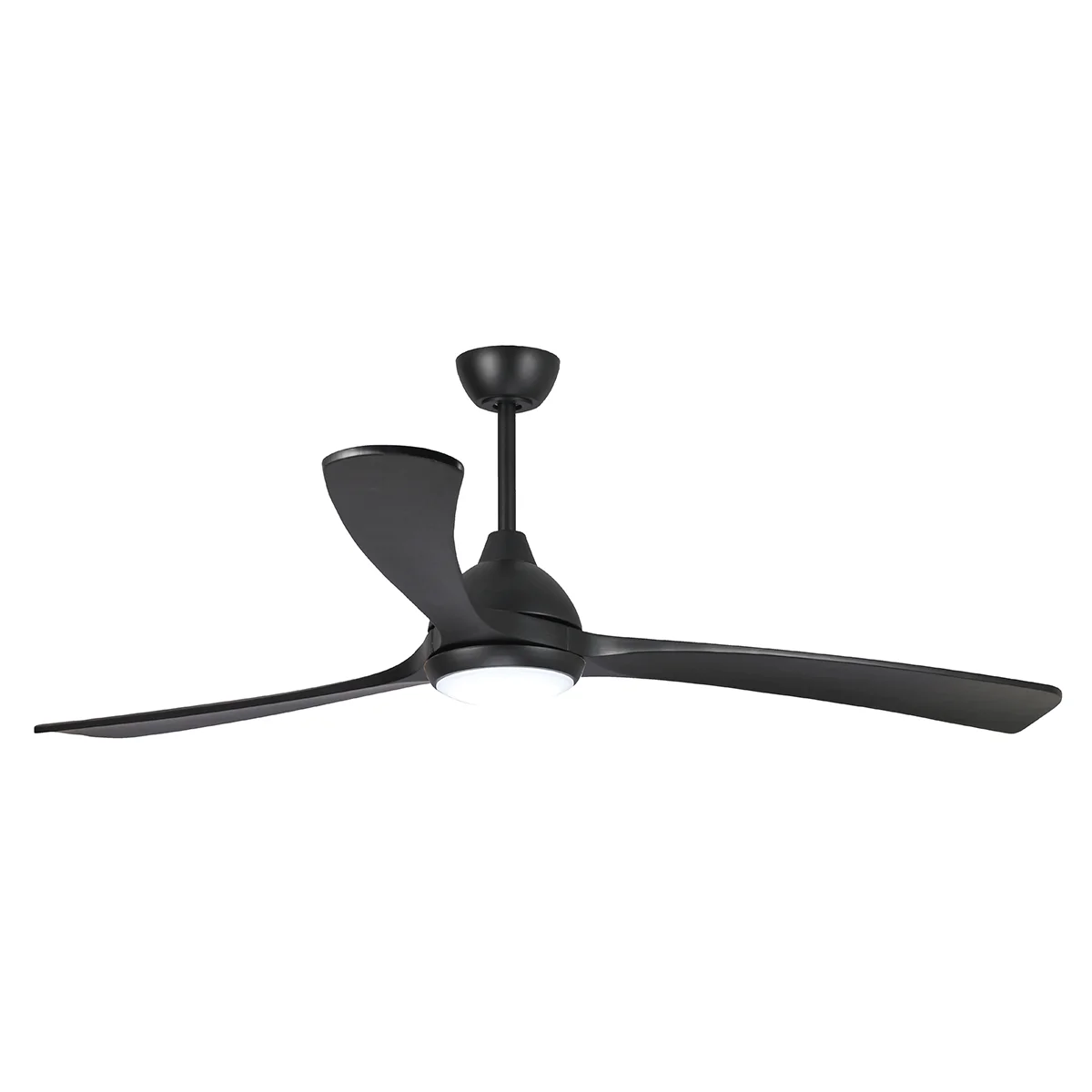

Sanctuary DC Ceiling Fan 70″ with CCT LED Light & Remote (Black)
$749.00

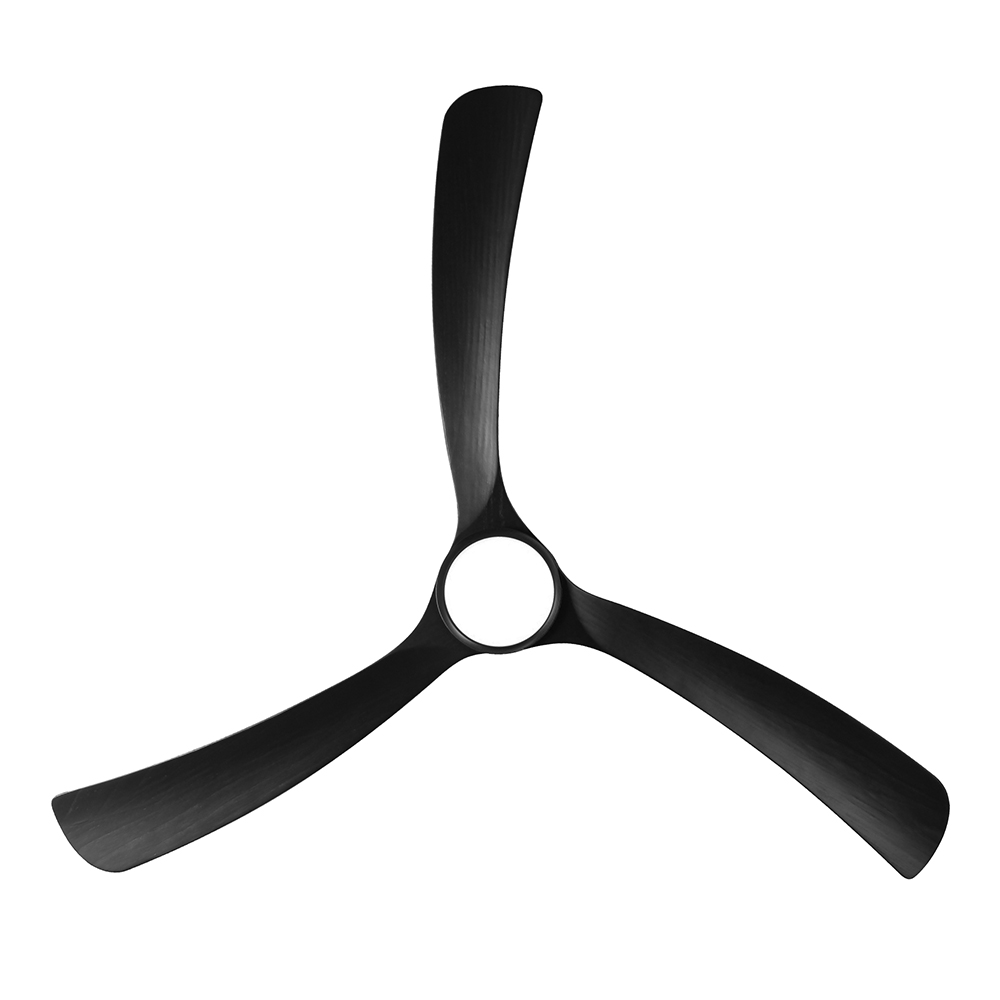

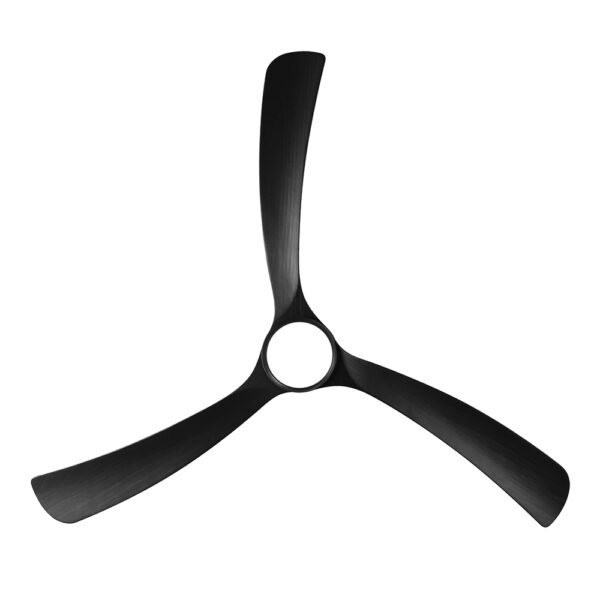

The Fanco Sanctuary features a large 70-inch blade span with three handcrafted solid timber blades, each finished with a protective sealer for durability. This makes the fan ideal for undercover outdoor use, including alfresco areas and coastal locations. A 38W reversible DC motor drives the fan, offering six speed settings to suit your needs. The model also includes a 24W CCT LED light with dimming functionality and the option to select between three colour temperatures: Warm White, Natural White, and Daylight.
Fanco Sanctuary Installation Manual
Please note: This fan includes two extension rods 125mm & 250mm.
Recommended for installation on ceilings with a minimum height of at least 2.7m due to the longer than standard ceiling to blade drop of 447mm (with 250mm rod) & ceiling to blade drop of 322mm (with 125mm rod).
The fan should also be positioned to allow a minimum of 70cm clearance between the tip of the blades and the walls, edge of roof or ceiling beams. If you are installing this fan outdoors, you must allow 1.5m between the tip of the blades and the edge of the roof under any circumstances.
Watch the Fanco Sanctuary DC as featured below:
Description
Fanco Sanctuary DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Timber |
| Overall Diameter (blade tip to blade tip) | 178cm (70″) |
| Approximate Blade Pitch | 10 Degrees |
| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 322mm (with 125mm rod) 447mm (with 250mm rod) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Fanco |
| Manufacturers Part Number | KF6011/202A |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
The built-in timer allows you to set the fan to run for 1, 4, or 8 hours for added convenience.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 55 | 5.4 | 3,150 m3/hr |
| 2 | 86 | 10.03 | 5,230 m3/hr |
| 3 | 103 | 15 | 6,879 m3/hr |
| 4 | 115 | 20 | 8,520 m3/hr |
| 5 | 128 | 26 | 9,053 m3/hr |
| 6 | 147 | 38 | 11,176 m3/hr |
Equipped with an energy-saving DC motor, the fan consumes only 5.4W at its lowest speed while providing six speed options for personalised comfort.

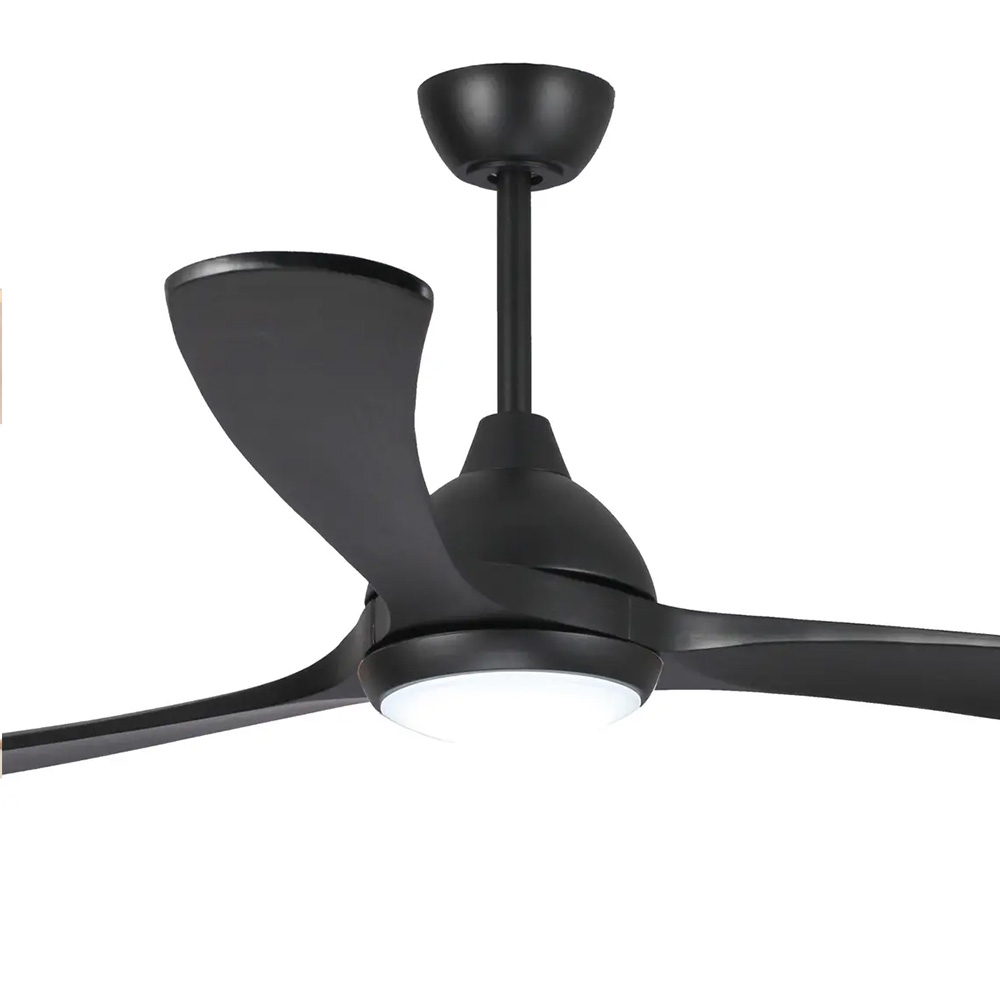

Fanco Sanctuary Light Information
| Light Type | LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 1435lm, 1474lm, 1461lm |
| Light Temperature | 3000k, 4000k, 6000k |
| Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered, and you are able to select the required temperature.
Choose from three light settings: Warm White, Natural White, or Daylight and enjoy the added benefit of a memory function that recalls your last selection.
Please note: This fan includes two extension rods, 125mm & 250mm.
Recommended for installation on ceilings with a minimum height of at least 2.7m due to the longer than standard ceiling to blade drop of 447mm (with 250mm rod) & ceiling to blade drop of 322mm (with 125mm rod).
The fan should also be positioned to allow a minimum of 70cm clearance between the tip of the blades and the walls, edge of roof or ceiling beams. If you are installing this fan outdoors, you must allow 1.5m between the tip of the blades and the edge of the roof under any circumstances.
Additional information
| Brand |
Fanco |
|---|---|
| Warranty |
Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Size |
70" (178cm) |
| Model Number |
KF6011/202A |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
DC |
| Control |
Remote Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Remote |
| Light |
Included |
| Number of Blades |
3 |
| Blade Material |
Timber |
| Blade Colour |
Black |
| Motor Colour |
Black |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Maximum angle ceiling installation is 15 degrees. |
| Ceiling to Blade |
322mm (with 125mm rod) | 447mm (with 250mm rod) |
| Ceiling to Base |
334mm (with 125mm rod) | 459mm (with 250mm rod) |
