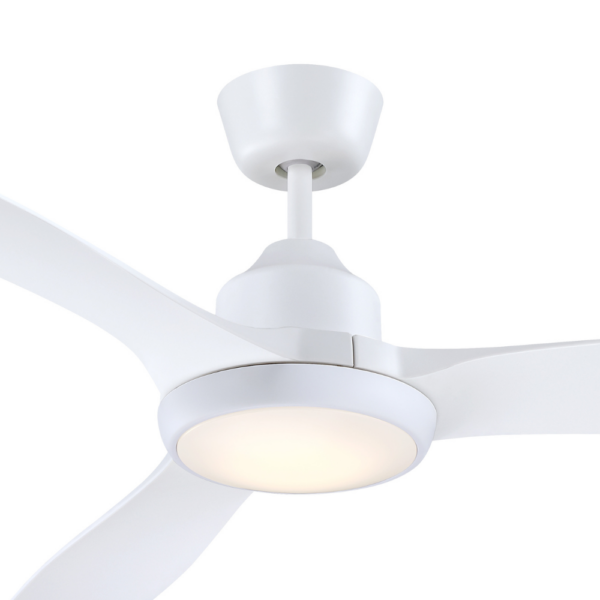

Mercator Raptor DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 132cm (52″) |
| Approximate Blade Pitch | Not Tested |
| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 297mm (347mm to base of light) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 13 degrees |
| Brand | Mercator |
| Manufacturers Part Number | FC978133WH |
| Warranty | Mercator Plus: 3 year in home warranty + additional 6 year motor replacement. Terms & Conditions apply – visit manufacturers website for more info |
Mercator Raptor Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 67 | 5.3 | 3669 m3/hr |
| 2 | 88 | 6.3 | 4933 m3/hr |
| 3 | 122 | 9.5 | 6738 m3/hr |
| 4 | 151 | 15 | 8414 m3/hr |
| 5 | 179 | 23.7 | 10191 m3/hr |
| 6 | 205 | 5 | 12000 m3/hr |
Mercator Raptor Light Information
| Light Type | LED |
|---|---|
| Light Wattage | 20 |
| Lumens | Max 1200 |
| Light Temperature | 4-Step Colour Change Mode – Warm, Neutral, Cool & Daylight |
| Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
