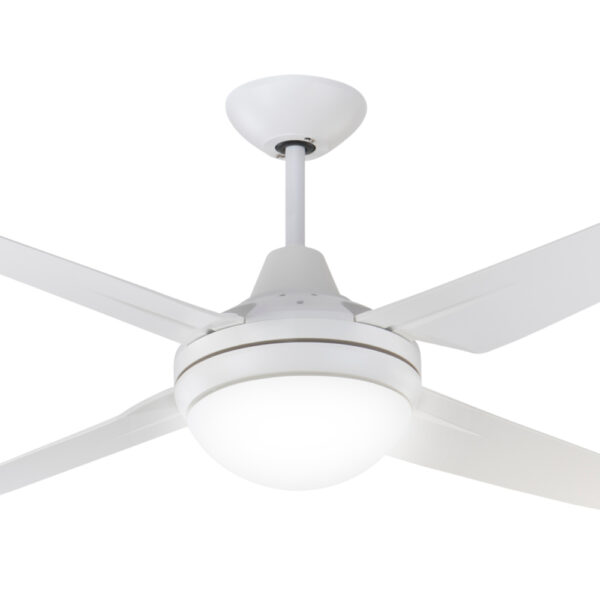

Mercator Clare AC Ceiling Fan with B22 Light – 53″ (White)
$209.00
The Clare 53″ (135cm) from Mercator (Part Number: FC662134WH) offers exceptional value with a robust airflow capacity of up to 11,340 m3/hr. Its versatility allows for indoor installation and placement in covered outdoor spaces and coastal environments. The fan features a classic 4-blade design and is equipped with an efficient high-performance 88W motor, making it well-suited for various applications including residential, bedroom, living, and workspace settings. Control functionality is achieved through a 3-speed wall switch, and the fan includes a reversible mode for seamless transition between summer and winter settings, which can be activated via a switch located on the motor. Additionally, the fan comes with a B22 light kit (globes not included).
Is remote adaptable – see accessories below.
Description
Mercator Clare AC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 135cm (53″) |
| Approximate Blade Pitch | Highly Curved |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from wall control |
| Ceiling to Lowest Point of Blade | 315mm (414mm to base of light) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Mercator |
| Manufacturers Part Number | FC662134WH |
| Warranty | Mercator: 3 Year In Home Warranty with an additional 3 years parts only Warranty. |
Mercator Clare Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 73 | Not Tested | Not Tested |
| 2 | 171 | Not Tested | Not Tested |
| 3 | 232 | 88 | 11,340 m3/hr |
Mercator Clare Light Information
| Light Type | B22 x 2 (globes not included) |
|---|---|
| Light Wattage | Not Tested |
| Lumens | Not Tested |
| Light Temperature | Not Tested |
| Dimmable | No |
Additional information
| Brand |
Mercator |
|---|---|
| Light Filter |
With Light |
| Model Number |
FC662134WH |
| Size |
53" (135cm) |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
AC |
| Control |
Wall Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Motor |
| Light |
Light Kit Included (globes not included) |
| Light Type |
B22 |
| Number of Blades |
4 |
| Blade Material |
Plastic |
| Blade Colour |
White |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Blade Pitch |
TBC |
| Raked Ceilings |
Suitable up to 15° |
| Ceiling to Blade |
315mm |
| Ceiling to Base of Motor Measurement (approx) |
330mm |
| Warranty |
Mercator: This fan comes complete with a 3 year Manufacturer's in-home warranty + an additional 3 year motor warranty. Conditions apply – see www.mercator.com.au for more information |
Performance
Performance
| Performance | 1 | 2 | 3 |
|---|---|---|---|
| Airflow (m3/hr) | TBC | TBC | 13,340 |
| RPM | 73 | 171 | 232 |
Dimensions
Dimensions
Blade Span (diameter): 53″ (1350mm)
Drop Ceiling to Base of Motor (approx): 330mm
Drop Ceiling to Blade (approx): 315mm
*This figure is from ceiling to the top of the blade. The industry standard is to measure to the bottom of the blade therefore you will need to add approximately 5 cm to this figure when comparing against other manufacturers.
FAQ
FAQ
Minimum Installation Height
General requirement is to have a minimum of 2.1m from the floor to the blades of the fan.
What's The Difference Between An AC & DC Motor?
DC Motor Advantages:
- In most cases, they use less energy than an AC motor
- They are generally the quieter option
- They will often have more speed options
- They are reversible for summer / winter use from the remote
AC Motor Advantages:
- AC fans can be controlled by a wall control (options with pull-cord and remote as well), while DC fans can generally only be controlled by remote.
- AC fans are still extremely energy efficient
- Currently more options to choose from with AC motor
- Often cheaper than a DC motor fan – although you use less electricity running a DC fan, the savings are minimal
