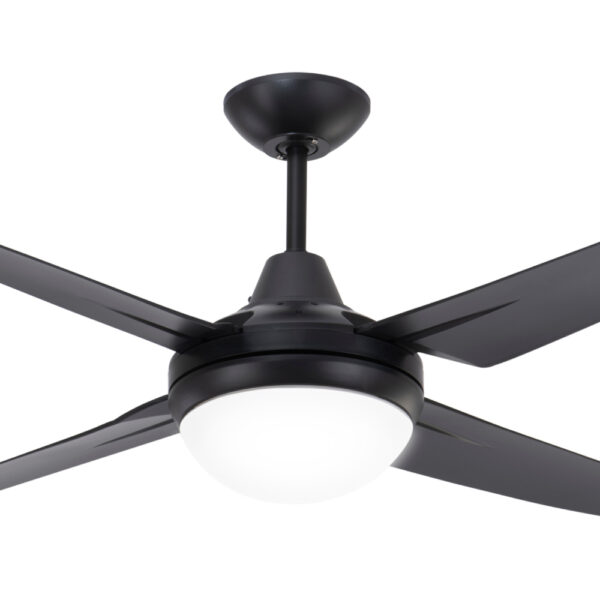

Mercator Clare AC Ceiling Fan with B22 Light – 53″ (Black)
$209.00
The Clare 53″ (135cm) from Mercator (Part Number: FC662134BK) boasts impressive value, offering a robust airflow capacity of up to 11,340 m3/hr. Its versatile nature allows for installation indoors and in covered outdoor spaces, as well as in coastal environments. It has a classic 4-blade design and is equipped with an efficient high-performance 88W motor, rendering it well-suited for diverse applications, including residential, bedroom, living, and workspace settings. The fan’s operational features are accessed via a 3-speed wall switch. It is equipped with a reversible mode to allow for a smooth transition between summer and winter settings, which can be initiated using a switch on the motor. Additionally, the fan is outfitted with a B22 light kit; however, the globes are not provided.
Is remote adaptable – see accessories below.
Mercator Clare AC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 135cm (53″) |
| Approximate Blade Pitch | Highly Curved |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from wall control |
| Ceiling to Lowest Point of Blade | 315mm (414mm to base of light) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Mercator |
| Manufacturers Part Number | FC662134BK |
| Warranty | Mercator: 3 Year In Home Warranty with an additional 3 years parts only Warranty. |
Mercator Clare Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 73 | Not Tested | Not Tested |
| 2 | 171 | Not Tested | Not Tested |
| 3 | 232 | 88 | 11,340 m3/hr |
Mercator Clare Light Information
| Light Type | B22 x 2 (globes not included) |
|---|---|
| Light Wattage | Not Tested |
| Lumens | Not Tested |
| Light Temperature | Not Tested |
| Dimmable | No |
| Brand | Mercator |
|---|---|
| Light Filter | With Light |
| Model Number | FC662134BK |
| Size | 53" (135cm) |
| Location | Coastal, Indoor, Outdoor – Undercover |
| Motor Type | AC |
| Control | Wall Control |
| Reverse Function | Reversible For Summer & Winter Use – From Motor |
| Light | Light Kit Included (globes not included) |
| Light Type | B22 |
| Number of Blades | 4 |
| Blade Material | Plastic |
| Blade Colour | Black |
| Motor Colour | Black |
| Suitable Raked Ceilings | Yes |
| Blade Pitch | TBC |
| Raked Ceilings | Suitable up to 15° |
| Ceiling to Blade | 315mm |
| Ceiling to Base of Motor Measurement (approx) | 330mm |
| Warranty | Mercator: This fan comes complete with a 3 year Manufacturer’s in-home warranty + an additional 3 year motor warranty. Conditions apply – see www.mercator.com.au for more information |
Performance
| Performance | 1 | 2 | 3 |
|---|---|---|---|
| Airflow (m3/hr) | TBC | TBC | 13,340 |
| RPM | 73 | 171 | 232 |
Dimensions
Blade Span (diameter): 53″ (1350mm)
Drop Ceiling to Base of Motor (approx): 330mm
Drop Ceiling to Blade (approx): 315mm
*This figure is from ceiling to the top of the blade. The industry standard is to measure to the bottom of the blade therefore you will need to add approximately 5 cm to this figure when comparing against other manufacturers.
FAQ
Click for answer.
Minimum Installation Height
General requirement is to have a minimum of 2.1m from the floor to the blades of the fan.
What's The Difference Between An AC & DC Motor?
DC Motor Advantages:
- In most cases, they use less energy than an AC motor
- They are generally the quieter option
- They will often have more speed options
- They are reversible for summer / winter use from the remote
AC Motor Advantages:
- AC fans can be controlled by a wall control (options with pull-cord and remote as well), while DC fans can generally only be controlled by remote.
- AC fans are still extremely energy efficient
- Currently more options to choose from with AC motor
- Often cheaper than a DC motor fan – although you use less electricity running a DC fan, the savings are minimal
