Name: Mercator Airventure AC Ceiling Fan - 52" (White)
Brand: Mercator
SKU: CFMEAV3WH
Price: 229.00 AUD
Availability: InStock

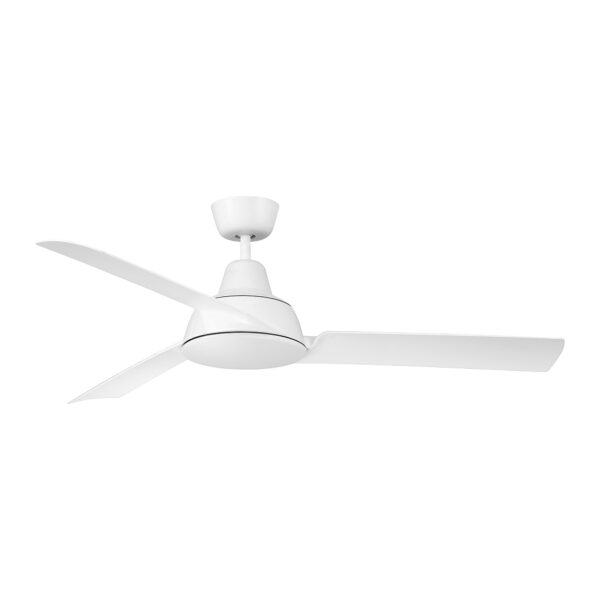

Mercator Airventure AC Ceiling Fan – 52″ (White)

The Mercator Airventure in White with White Blades (Part Number: FC580133WH) features a contemporary, slender design and is equipped with three distinct curved ABS plastic blades, making it suitable for both indoor and enclosed outdoor installations. This fan offers a reversible motor, allowing for use during both summer and winter seasons, and comes standard with a wall control. Additionally, this particular model can be adapted for remote control (see accessories).

Description

Mercator Airventure AC Information

Installation	Indoor, Enclosed Outdoor
Light	Not Included
Material of Blade	Plastic
Overall Diameter (blade tip to blade tip)	132cm (52″)
Approximate Blade Pitch	Not Tested
Type of Motor	AC motor
Operation	Wall Control
Summer / Winter use?	Reversible from remote
Ceiling to Lowest Point of Blade	300mm (334mm to base of motor)
Suitable for Angled Ceilings?	Suitable for angled ceilings up to 17 degrees
Brand	Mercator
Manufacturers Part Number	FC580133WH
Warranty	Mercator: 3 Year In Home Warranty with an additional 6 years motor Warranty.

Mercator Airventure Performance Data

Speed	RPM	Wattage	Airflow
1	69	11	4247 m3/hr
2	113	27	7050 m3/hr
3	162	57	10429 m3/hr

Additional information

Brand	Mercator
Model Number	FC580133WH
Size	52" (132cm)
Location	Indoor , Enclosed Outdoor
Motor Type	AC
Control	Wall Control
Reverse Function	Reversible For Summer & Winter Use – From Motor
Light	Not Light Adaptable
Number of Blades	3
Blade Material	ABS Plastic
Blade Colour	White
Motor Colour	White
Suitable Raked Ceilings	Yes
Raked Ceilings	Maximum angle ceiling installation is 12 degrees.
Ceiling to Blade	300mm
Ceiling to Base	334mm
Warranty	Mercator – 3 year Manufacturer's in-home warranty + extra 6 year motor warranty (see www.mercator.com.au for more details)

Performance

Performance	1	2	3
Airflow (m3/hr)	4,247 m3/hr	7,050 m3/hr	10,429 m3/hr
Wattage	11w	27w	57w
RPM	69	113	162

Dimensions

Blade Span (diameter): 52″ (1320mm)

Drop Ceiling to Blade: 300mm approx

Drop Ceiling to Base (of motor): 334mm approx

FAQ

Click for answer.

Minimum Installation Height

General requirement is to have a minimum of 2.1m from the floor to the blades of the fan.

What's The Difference Between An AC & DC Motor?

DC Motor Advantages:

In most cases, they use less energy than an AC motor
They are generally the quieter option
They will often have more speed options
They are reversible for summer / winter use from the remote

AC Motor Advantages:

AC fans can be controlled by a wall control (options with pull-cord and remote as well), while DC fans can generally only be controlled by remote.
AC fans are still extremely energy efficient
Currently more options to choose from with AC motor
Often cheaper than a DC motor fan – although you use less electricity running a DC fan, the savings are minimal
