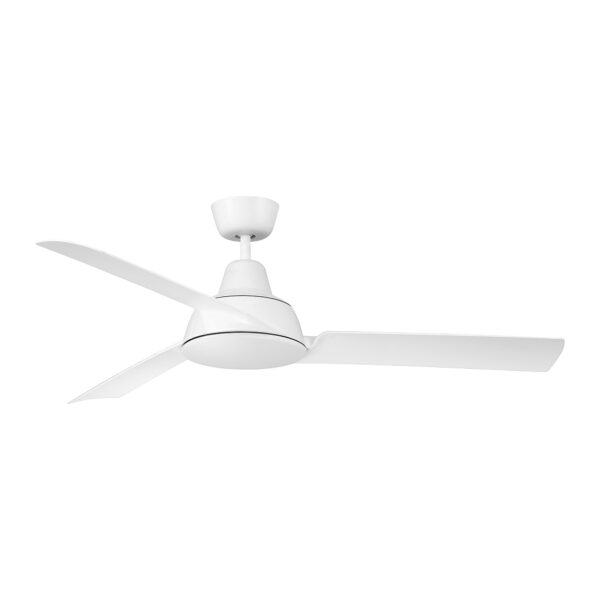

Mercator Airventure AC Ceiling Fan – 52″ (White)
$229.00
The Mercator Airventure in White with White Blades (Part Number: FC580133WH) features a contemporary, slender design and is equipped with three distinct curved ABS plastic blades, making it suitable for both indoor and outdoor undercover installations. This fan offers a reversible motor, allowing for use during both summer and winter seasons, and comes standard with a wall control. Additionally, this particular model can be adapted for remote control (see accessories).
Description
Mercator Airventure AC Information
| Installation | Indoor & Outdoor Undercover |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 132cm (52″) |
| Approximate Blade Pitch | Highly Curved |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 300mm (334mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 17 degrees |
| Brand | Mercator |
| Manufacturers Part Number | FC580133WH |
| Warranty | Mercator: 3 Year In Home Warranty with an additional 3 years motor Warranty. |
Mercator Airventure Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 69 | 11 | 4247 m3/hr |
| 2 | 113 | 27 | 7050 m3/hr |
| 3 | 162 | 57 | 10429 m3/hr |
Additional information
| Brand |
Mercator |
|---|---|
| Model Number |
FC580133WH |
| Size |
52" (132cm) |
| Location |
Indoor ,Outdoor – Undercover |
| Motor Type |
AC |
| Control |
Wall Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Motor |
| Light |
Not Light Adaptable |
| Number of Blades |
3 |
| Blade Material |
ABS Plastic |
| Blade Colour |
White |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Maximum angle ceiling installation is 12 degrees. |
| Ceiling to Blade |
300mm |
| Ceiling to Base |
334mm |
| Warranty |
Mercator: This fan comes complete with a 3 year Manufacturer's in-home warranty + an additional 3 year motor warranty. Conditions apply – see www.mercator.com.au for more information |
Performance
Performance
| Performance | 1 | 2 | 3 |
|---|---|---|---|
| Airflow (m3/hr) | 4,247 m3/hr | 7,050 m3/hr | 10,429 m3/hr |
| Wattage | 11w | 27w | 57w |
| RPM | 69 | 113 | 162 |
Dimensions
Dimensions
Blade Span (diameter): 52″ (1320mm)
Drop Ceiling to Blade: 300mm approx
Drop Ceiling to Base (of motor): 334mm approx
FAQ
FAQ
Minimum Installation Height
General requirement is to have a minimum of 2.1m from the floor to the blades of the fan.
What's The Difference Between An AC & DC Motor?
DC Motor Advantages:
- In most cases, they use less energy than an AC motor
- They are generally the quieter option
- They will often have more speed options
- They are reversible for summer / winter use from the remote
AC Motor Advantages:
- AC fans can be controlled by a wall control (options with pull-cord and remote as well), while DC fans can generally only be controlled by remote.
- AC fans are still extremely energy efficient
- Currently more options to choose from with AC motor
- Often cheaper than a DC motor fan – although you use less electricity running a DC fan, the savings are minimal
