-10%

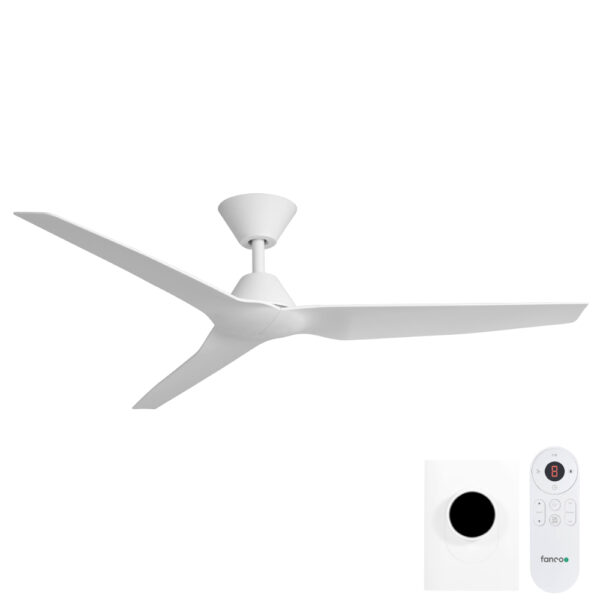

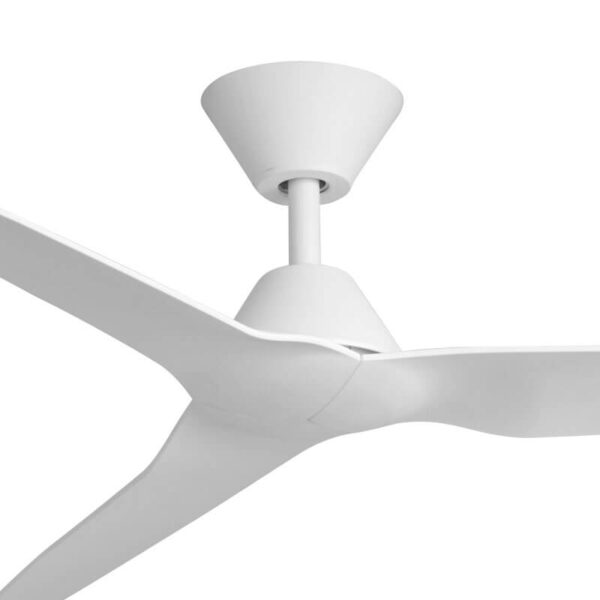

Fanco Infinity-iD DC Ceiling Fan with Wall Control & Remote/SMART – 54″ (White)
Original price was: $479.00.$429.00Current price is: $429.00.
The Fanco Infinity-iD in White (Part Number: KF8020/101B), complete with ‘Tri Control’ by Fanco, adds style and functionality to your living spaces. The package includes a hardwired wall controller featuring a user-friendly LED display, a remote control, and SMART functionality. These three control types can be used simultaneously, providing various control options. Its 54″ plastic blades and 12-degree blade pitch are stylish and highly effective at keeping you comfortable year-round. The DC motor ensures efficient operation, consuming just 22.5 watts while delivering an impressive 10,801 m3/hr of airflow.
<
Pre-Order Product: ETA Late May
Description
Fanco Infinity-iD DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 137cm (54″) |
| Approximate Blade Pitch | 12 Degrees |
| Type of Motor | DC motor |
| Operation | Remote, SMART and Wall Control |
| Summer / Winter use? | Reversible from remote and smart app |
| Ceiling to Lowest Point of Blade | 270mm (295mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 7 degrees |
| Brand | Fanco |
| Manufacturers Part Number | KF8020/101B |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
Fanco Infinity-iD Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 3.4 | 3420 m3/hr |
| 2 | 88 | 4.6 | 4644 m3/hr |
| 3 | 116 | 6.8 | 6049 m3/hr |
| 4 | 145 | 10 | 7021 m3/hr |
| 5 | 174 | 15.2 | 8461 m3/hr |
| 6 | 200 | 22.5 | 10801 m3/hr |
You can access the installation manual for the wall control through this link: Wall Control Installation Guide.
The smart control manual is accessible via this link: Fanco Smart Manual.
Additional information
| Brand |
Fanco |
|---|---|
| Warranty |
Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Size |
54" (137cm) |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
DC |
| Control |
Smart Control ,Remote Control ,Wall Control |
| Reverse Function |
Not reversible |
| Light |
Model with light is available in a package – see separate listings |
| Number of Blades |
3 |
| Blade Material |
ABS Plastic |
| Blade Colour |
White |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Maximum angle ceiling installation is 7 degrees. |
| Ceiling to Blade |
270 mm (approx) |
| Ceiling to Base of Motor Measurement (approx) |
295mm |
Dimensions
Dimensions
Blade Span (diameter): 54″ (1370mm)
Drop Ceiling to Base of Motor: 295mm
