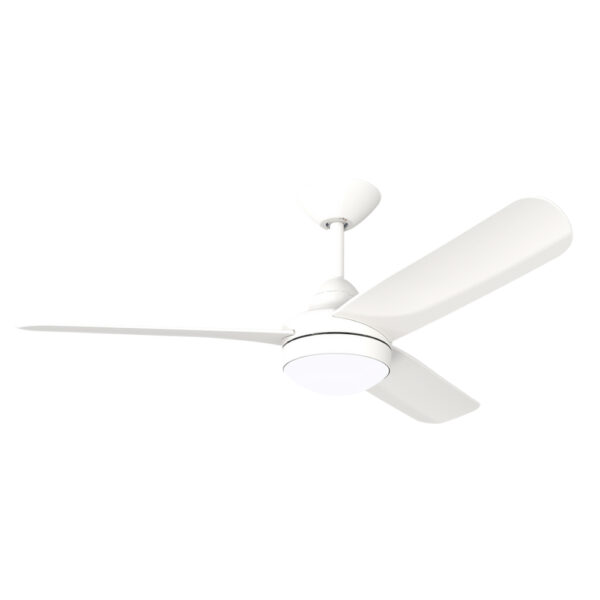

Hunter Pacific X-Over DC Information
Installation |
Indoor, Outdoor Undercover & Coastal |
Light |
Included |
Material of Blade |
Plastic |
Overall Diameter (blade tip to blade tip) |
122cm (48″) |
Approximate Blade Pitch |
10 Degrees |
Type of Motor |
DC motor |
Operation |
Wall Control |
Summer / Winter use? |
Reversible from switch on motor |
Ceiling to Lowest Point of Blade |
300mm (396mm to base of motor) |
Suitable for Angled Ceilings? |
Suitable for angled ceilings up to 28 degrees |
Brand |
Hunter Pacific |
Manufacturers Part Number |
XOL302 |
Warranty |
Hunter Pacific: This fan comes complete with a 3 year Manufacturer’s in-home warranty and a 4 year motor parts warranty. |
Hunter Pacific X-Over Performance Data
Speed |
RPM |
Wattage |
Airflow |
1 |
80 |
2.9 |
4350 m3/hr |
2 |
149 |
11.8 |
11501 m3/hr |
3 |
205 |
25.8 |
13250 m3/hr |
Hunter Pacific X-Over Light Information
Light Type |
LED |
Light Wattage |
18 |
Lumens |
1842lm, 2370lm, 2123lm |
Light Temperature |
3000K, 4000K, 6000K |
Dimmable |
Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
*Please Note: A 3 speed wall control mechanism is provided with this fan, this is the rotary dial you use to adjust the speeds and turn the fan off. It does not include a switch for the light. Your installing electrician will need to provide a 3 gang switch with plate, to ensure that you have a switch for the light and an isolation switch.
