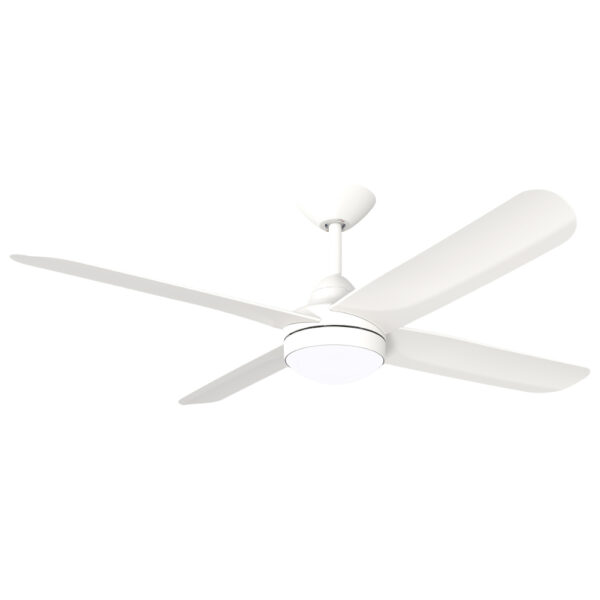

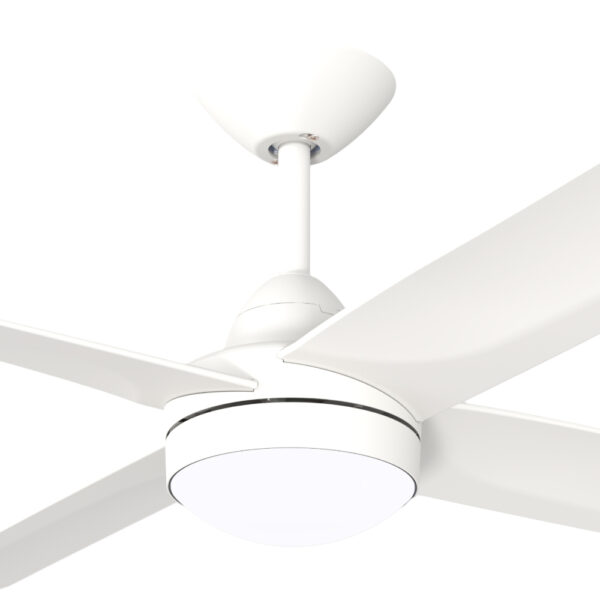

Hunter Pacific X-Over DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 132cm (52″) |
| Approximate Blade Pitch | 10.7 Degrees |
| Type of Motor | DC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from switch on motor |
| Ceiling to Lowest Point of Blade | 300mm (339mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 28 degrees |
| Brand | Hunter Pacific |
| Manufacturers Part Number | XOL306 |
| Warranty | Hunter Pacific: This fan comes complete with a 3 year Manufacturer’s in-home warranty and a 4 year motor parts warranty. |
Hunter Pacific X-Over Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 78 | 3.0 | 4828 m3/hr |
| 2 | 143 | 10.8 | 12001 m3/hr |
| 3 | 190 | 25.1 | 13852 m3/hr |
Hunter Pacific X-Over Light Information
| Light Type | LED |
|---|---|
| Light Wattage | 18 |
| Lumens | 1842lm, 2370lm, 2123lm |
| Light Temperature | 3000K, 4000K, 6000K |
| Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
*Please Note: A 3 speed wall control mechanism is provided with this fan, this is the rotary dial you use to adjust the speeds and turn the fan off. It does not include a switch for the light. Your installing electrician will need to provide a 3 gang switch with plate, to ensure that you have a switch for the light and an isolation switch.
