-5%

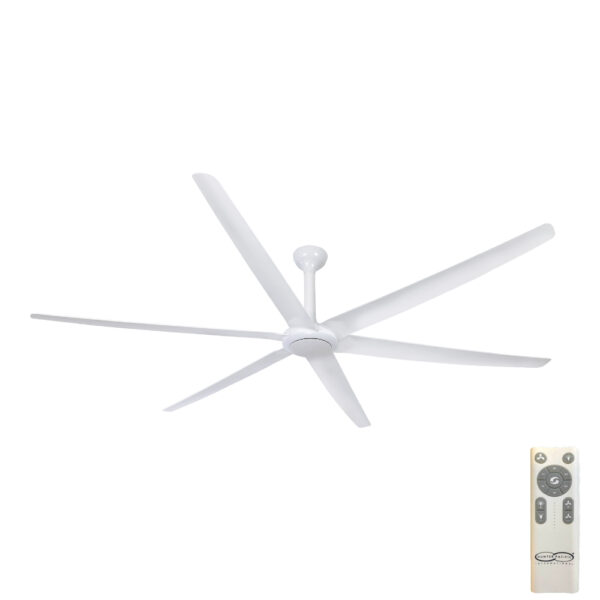

Hunter Pacific The Big Fan V2 DC Ceiling Fan – 86″ (White)
Original price was: $1,899.00.$1,799.00Current price is: $1,799.00.
The Hunter Pacific The Big Fan V2 DC Ceiling Fan (TBF0861) delivers exceptional airflow for expansive commercial, industrial, or residential spaces. Its impressive 86-inch blade diameter, featuring innovative Aerodynamic Wedge Compression technology, utilizes a unique blend of aluminium and plastic for superior strength and durability. This allows for safe outdoor installation, making it a versatile cooling solution. For added comfort and control, the Big Fan V2 has a 9-speed remote control and a reversible function for optimal airflow in both summer and winter.
Description
Hunter Pacific The Big Fan V2 DC Information
Coastal-friendly, and resistant to corrosion and UV light because of its ABS plastic material.
| Installation | Indoor, Outdoor Undercover, Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 218cm (86″) |
| Approximate Blade Pitch | 15 degrees |
| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 450mm (500mm to base to motor) |
| Suitable for Angled Ceilings? | Suitable for flat ceilings only |
| Brand | Hunter Pacific |
| Manufacturers Part Number | TBF0861 |
| Warranty | Hunter Pacific: This fan comes complete with a 3-year manufacturer’s in-home warranty and a 4-year motor parts warranty. |
Hunter Pacific The Big Fan V2 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 61 | 11.2 | 11598 m3/hr |
| 2 | 70 | 15.9 | 13987 m3/hr |
| 3 | 83 | 25.3 | 16897 m3/hr |
| 4 | 89 | 30 | 18095 m3/hr |
| 5 | 94 | 34.6 | 20698 m3/hr |
| 6 | 98 | 39.6 | 24557 m3/hr |
| 7 | 102 | 44.4 | 28568 m3/hr |
| 8 | 105 | 48.4 | 31587 m3/hr |
| 9 | 120 | 54.1 | 35480 m3/hr |
The fastest speed setting achieves high airflow. Energy-efficient and cheap to run, even at the highest speed.
Additional information
| Brand |
Hunter Pacific |
|---|---|
| Model Number |
TBF0861 |
| Size |
86" (2185mm) |
| Location |
Indoor ,Outdoor – Undercover |
| Motor Type |
DC |
| Control |
Remote Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Remote |
| Light |
Not Light Adaptable |
| Number of Blades |
6 |
| Blade Material |
Plastic ,Metal |
| Motor Colour |
White |
| Suitable Raked Ceilings |
No – Suitable for flat ceilings only |
| Raked Ceilings |
Flat Ceilings Only |
| Blade Colour |
White |
| Ceiling to Blade |
450mm |
| Ceiling to Base |
500mm |
| Warranty |
Hunter Pacific: Includes a 3 year manufacturer's in-home warranty and a 4 year motor parts warranty. Conditions Apply. |
Performance
Performance
| Performance | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Airflow (m3/hr) | TBC | TBC | TBC | TBC | TBC | TBC | TBC | TBC | 38,541 m3/hr |
| Wattage | TBC | TBC | TBC | TBC | TBC | TBC | TBC | TBC | 75w |
| RPM | 58 | TBC | TBC | TBC | TBC | TBC | TBC | TBC | 126 |
Dimensions
Dimensions
Blade Span (diameter): 86″ (2185mm)
Drop Ceiling to Blade (approx): 420mm
Drop Ceiling to Base: 500mm
*This figure is from ceiling to the top of the blade. The industry standard is to measure to the bottom of the blade therefore you will need to add approximately 5 cm to this figure when comparing against other manufacturers.
