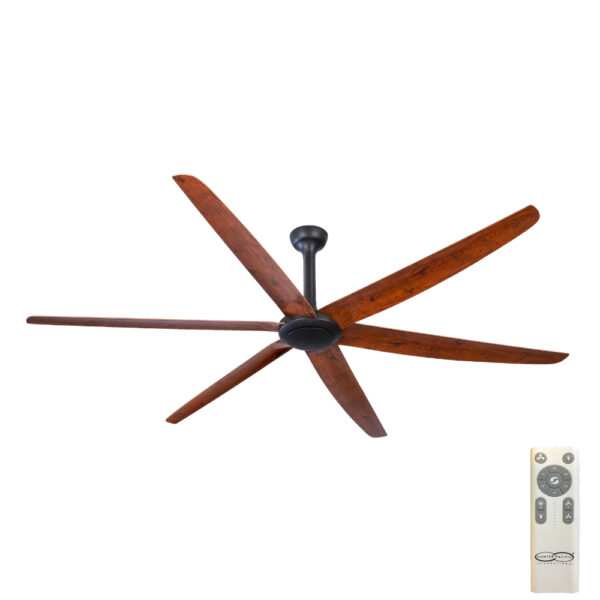

Hunter Pacific The Big Fan V2 DC Information
Coastal-friendly, and resistant to corrosion and UV light because of its ABS plastic material.
| Installation | Indoor, Outdoor Undercover |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 218cm (86″) |
| Approximate Blade Pitch | 15 Degrees |
| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 450mm (500mm ceiling to base of motor) |
| Suitable for Angled Ceilings? | Suitable for flat ceilings ONLY |
| Brand | Hunter Pacific |
| Manufacturers Part Number | TBF0864 |
| Warranty | Hunter Pacific: This fan comes complete with a 3-year manufacturer’s in-home warranty and a 4-year motor parts warranty. |
Hunter Pacific The Big Fan V2 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 61 | 11.2 | 11598 m3/hr |
| 2 | 70 | 15.9 | 13987 m3/hr |
| 3 | 83 | 25.3 | 16897 m3/hr |
| 4 | 89 | 30 | 18095 m3/hr |
| 5 | 94 | 34.6 | 20698 m3/hr |
| 6 | 98 | 39.6 | 24557 m3/hr |
| 7 | 102 | 44.4 | 28568 m3/hr |
| 8 | 105 | 48.4 | 31587 m3/hr |
| 9 | 120 | 54.1 | 35480 m3/hr |
The fastest speed setting achieves high airflow. Energy-efficient and cheap to run, even at the highest speed.
