-10%

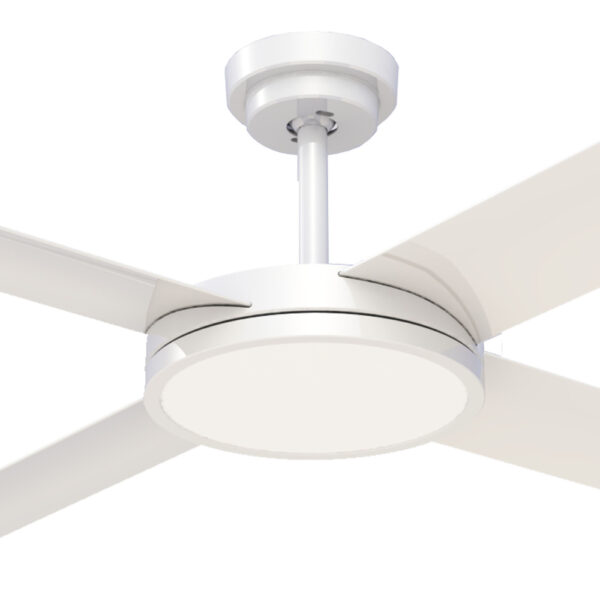

Hunter Pacific Revolution 3 AC Ceiling Fan with LED Light – 52″ (White)
Original price was: $519.00.$469.00Current price is: $469.00.
The Hunter Pacific Revolution 3 in White (Part Number: A3183) is a technologically advanced fan incorporating a modern, clean design. It features an upgraded motor and Dynamic Aerofoil Injection moulded blades, it comes with a three-speed wall control. It’s a good choice for the environmentally conscious without compromising performance and looks! This fan comes with a 24W LED light that blends in with the minimalist design of the fan (requires a dimmable remote or compatible wall dimmer which is sold separately, see accessories).
Description
Hunter Pacific Revolution 3 AC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 132cm (52″) |
| Approximate Blade Pitch | 10 Degrees |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from switch on motor |
| Ceiling to Lowest Point of Blade | 290mm (330mm to base of light) |
| Suitable for Angled Ceilings? | Suitable for FLAT ceilings & pitched ceilings up to 28 degrees |
| Brand | Hunter Pacific |
| Manufacturers Part Number | A3183 |
| Warranty | Hunter Pacific: Includes a 3 year manufacturer’s in-home warranty and a 4 year motor parts warranty. Conditions Apply. |
Hunter Pacific Revolution 3 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 95 | 11.9 | 5163 m3/hr |
| 2 | 135 | 25 | 7213 m3/hr |
| 3 | 203 | 55.9 | 14308 m3/hr |
Hunter Pacific Revolution 3 Light Information
| Light Type | LED |
|---|---|
| Light Wattage | 24 |
| Lumens | Not Tested |
| Light Temperature | 3000k, 4000k or 6000k |
| Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
Additional information
| Brand |
Hunter Pacific |
|---|---|
| Model Number |
A3183 |
| Size |
52" (132cm) |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
AC |
| Control |
Wall Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Motor |
| Light |
Included |
| Light Type |
LED Panel |
| Light Wattage |
24w |
| Light Colour Temperature |
3800K |
| Lumen Output |
2500 (On Full) |
| Number of Blades |
4 |
| Blade Material |
Plastic |
| Blade Colour |
White |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Maximum angle ceiling installation is 28 degrees |
| Ceiling to Blade |
290mm |
| Ceiling to Base of Motor Measurement (approx) |
300mm |
| Ceiling to Base of Light Measurement (approx) |
330mm |
| Warranty |
Hunter Pacific: Includes a 3 year manufacturer's in-home warranty and a 4 year motor parts warranty. Conditions Apply. |
Performance
Performance
| Performance | 1 | 2 | 3 |
|---|---|---|---|
| Airflow (m3/hr) | 5,148 | 8,448 | 13,332 |
| Wattage | 12 | 25 | 57.5 |
| RPM | 95 | 135 | 203 |
Dimensions
Dimensions
Blade Span (diameter): 52″ (1320mm)
Drop Ceiling to Blade: 250mm* (to top side of blade)
Drop Ceiling to Base of Light: 310mm (approx)
*This figure is from ceiling to the top of the blade. The industry standard is to measure to the bottom of the blade therefore you will need to add approximately 5 cm to this figure when comparing against other manufacturers.
