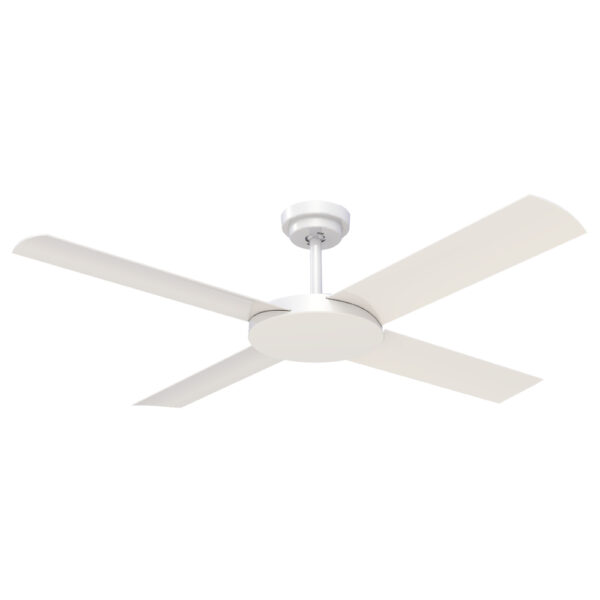

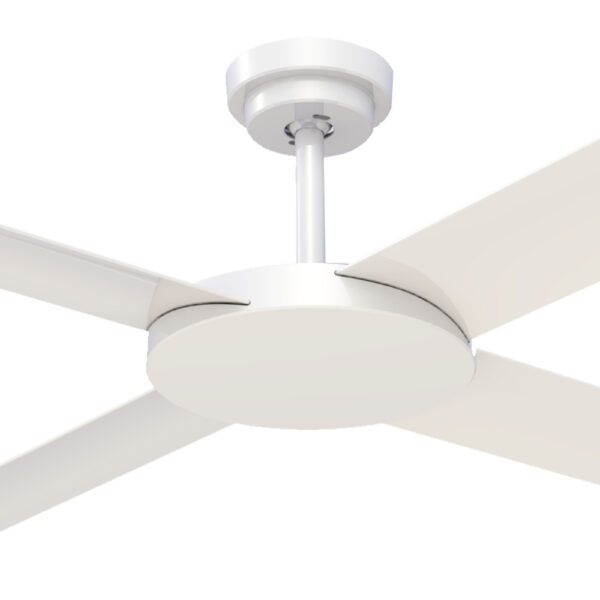

Hunter Pacific Revolution 3 AC Ceiling Fan – 52″ (White)
$419.00
The Hunter Pacific Revolution 3 in White (Part Number: A3180) is a technologically advanced fan incorporating a modern, clean design. It features an upgraded motor and Dynamic Aerofoil Injection moulded blades, it comes with a three-speed wall control. It’s a good choice for the environmentally conscious without compromising performance and looks!
Description
Hunter Pacific Revolution 3 AC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 132cm (52″) |
| Approximate Blade Pitch | 10 Degrees |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from switch on motor |
| Ceiling to Lowest Point of Blade | 290mm (300mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for FLAT ceilings & pitched ceilings up to 28 degrees |
| Brand | Hunter Pacific |
| Manufacturers Part Number | A3180 |
| Warranty | Hunter Pacific: Includes a 3 year manufacturer’s in-home warranty and a 4 year motor parts warranty. Conditions Apply. |
Hunter Pacific Revolution 3 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 95 | 11.9 | 5163 m3/hr |
| 2 | 135 | 25 | 7213 m3/hr |
| 3 | 203 | 55.9 | 14308 m3/hr |
Additional information
| Brand | Hunter Pacific |
|---|---|
| Model Number | A3180 |
| Size | 52" (132cm) |
| Location | Coastal, Indoor, Outdoor – Undercover |
| Motor Type | AC |
| Control | Wall Control |
| Reverse Function | Reversible For Summer & Winter Use – From Motor |
| Light | Model with light is available in a package – see separate listings |
| Number of Blades | 4 |
| Blade Material | Plastic |
| Blade Colour | White |
| Motor Colour | White |
| Suitable Raked Ceilings | Yes |
| Raked Ceilings | Maximum angle ceiling installation is 28 degrees |
| Ceiling to Blade | 290mm |
| Ceiling to Base of Motor Measurement (approx) | 300mm |
| Warranty | Hunter Pacific: Includes a 3 year manufacturer’s in-home warranty and a 4 year motor parts warranty. Conditions Apply. |
Performance
Performance
| Performance | 1 | 2 | 3 |
|---|---|---|---|
| Airflow (m3/hr) | 5,148 | 8,448 | 13,332 |
| Wattage | 12 | 25 | 57.5 |
| RPM | 95 | 135 | 203 |
Dimensions
Dimensions
Blade Span (diameter): 52″ (1320mm)
Drop Ceiling to Blade: 250mm* (to top side of blade)
*This figure is from ceiling to the top of the blade. The industry standard is to measure to the bottom of the blade therefore you will need to add approximately 5 cm to this figure when comparing against other manufacturers.
