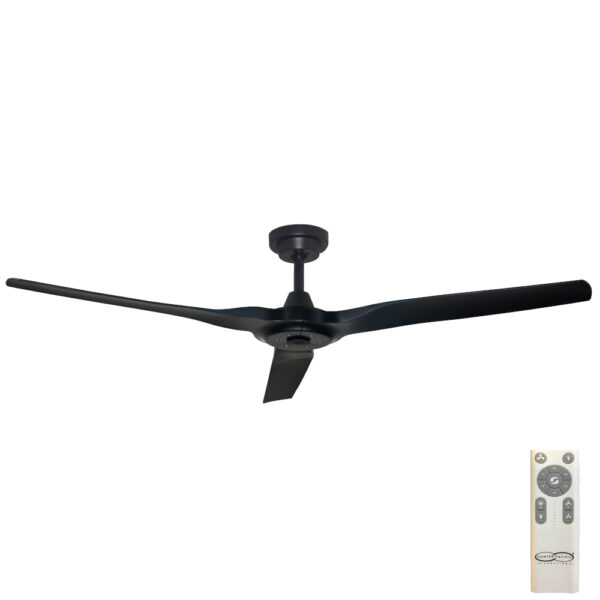

Hunter Pacific Radical 3 DC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 152cm (60″) |
| Approximate Blade Pitch | 13 Degrees |

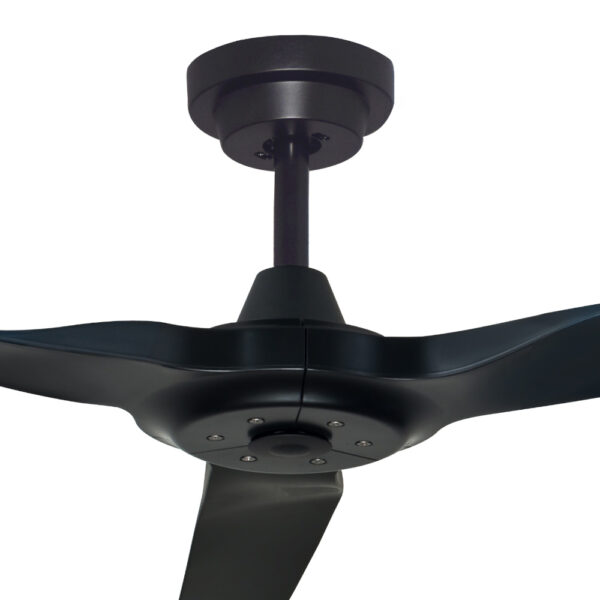

| Type of Motor | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Lowest Point of Blade | 280mm (310mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for flat ceilings ONLY |
| Brand | Hunter Pacific |
| Manufacturers Part Number | R322 |
| Warranty | Hunter Pacific: 3 Year In Home Warranty with an additional 4 years parts only Warranty – 2 year in home warranty on Remote and Receiver*. |
Hunter Pacific Radical 3 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 78 | 3.5 | 4578 m3/hr |
| 2 | 102 | 6.4 | 5006 m3/hr |
| 3 | 116 | 8.0 | 5580 m3/hr |
| 4 | 134 | 12.7 | 6857 m3/hr |
| 5 | 147 | 16.7 | 8760 m3/hr |
| 6 | 160 | 21.8 | 9840 m3/hr |
| 7 | 172 | 26.9 | 10970 m3/hr |
| 8 | 179 | 30.2 | 12060 m3/hr |
| 9 | 188 | 35 | 16272 m3/hr |
