Hunter Pacific Azure AC Information
| Installation | Indoor |
|---|---|
| Light | Not Included |
| Material of Blade | ABS Plastic |
| Overall Diameter (blade tip to blade tip) | 122cm (48″) |
| Approximate Blade Pitch | 10 degrees |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible via switch on motor |

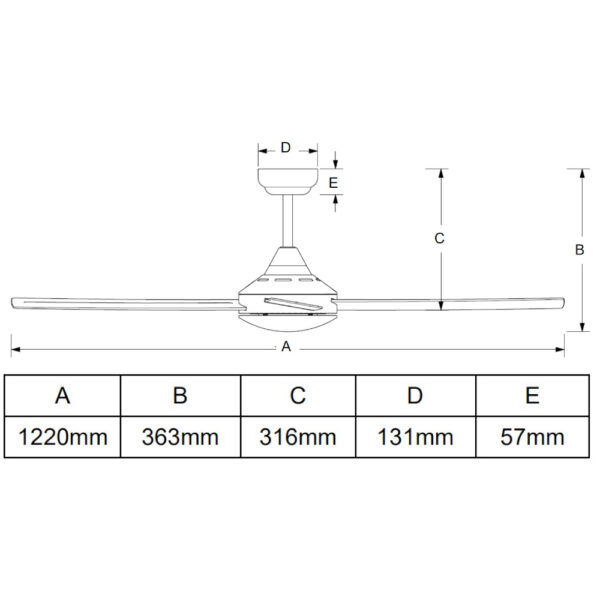

| Ceiling to Lowest Point of Blade | 363mm (316mm to base of motor) |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 28 degrees |
| Brand | Hunter Pacific |
| Manufacturers Part Number | A223 |
| Warranty | Hunter Pacific: 3 years standard warranty “in home” on mechanical parts (including motors). 4 years extended warranty on motor only (excluding labour) – visit manufacturers website for more info |
Hunter Pacific Azure Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 102 | 16.9 | 6,459 m3/hr |
| 2 | 145 | 36.3 | 8,637 m3/hr |
| 3 | 182 | 64 | 11,542 m3/hr |
