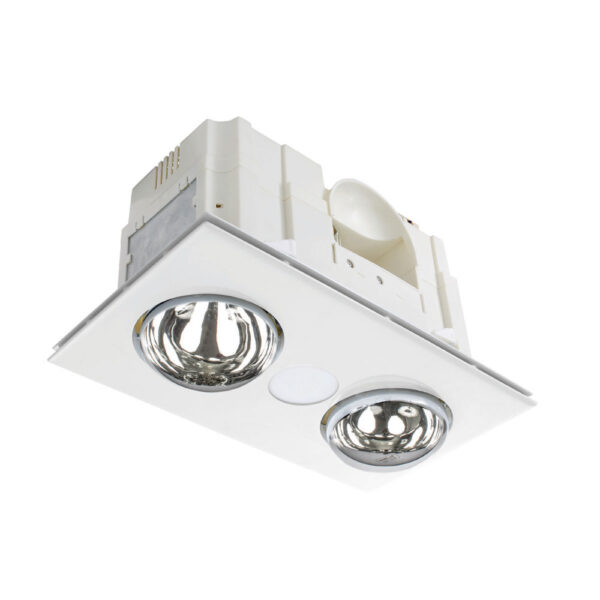

Horizon Exhaust Fan 3 in 1 with LED Light (White)
$149.00
The Horizon exhaust fan by Brilliant is a complete 3-in-1 solution for your bathroom, with exhaust, heat, and light functionality. It features efficient LED lighting with infrared heating, combining sleek design with cutting-edge powerful technology.
| Installation Location | Ceiling Only |
| Fan Capacity | 300 m3/hr (83 l/s) |
| Hole (Cutout) Size | 355mm x 200mm |
| Includes | 1.5m of aluminium duct (125mm) |
Features of the Horizon Exhaust Fan
- High-powered side ducted exhaust
- Ultra Quiet and high velocity 75w ball bearing motor
- Extraction rate: 300 m3/hr
- Thermal cut-out feature at 80°C for safety
- 2X 275W E27 infra-red heat globes
- LED central light: 8w light in Cool White 4200k (850Lm)
- 125mm side duct outlet with draft stopper
- IPX4 Rated
Brilliant Horizon Exhaust Fan Further Information
The Brilliant Horizon is an all-new 3-in-1 Exhaust Fan with a stylish design featuring a powerful 75w ball bearing motor, 2 275w long-lasting infrared heat lamps for instant heating, and a central 8w 850L LED light. This unit is high-powered, with a side-ducted exhaust fan that suits 125mm ducting and comes included with 1.5 meters of flexible aluminium duct. The Horizon is also IP44 rated, making it stand out from many other 3-in-1 exhaust fans.
For alternative colours please see other listings.
| Model Number | 19847/05 |
|---|---|
| Brand | Brilliant |
| Colour | White |
| Installation Location | Ceiling |
| Installation | Requires Hardwiring |
| Capacity m3/hr | 300 m3/hr |
| Capacity l/s | 83.33 l/s |
| Motor Wattage | 75w |
| Noise | 45 dB(A) |
| IP Rating | IPX4 |
| Hole Shape | Square |
| Fascia Shape | Square |
| Space Required for Install | Minimum installation clearance between unit and roof is 150mm, Minimum installation depth is 360mm |
| Ductable | Yes |
| Duct Size | 125mm |
| Duct Location | Side Ducted |
| backdraft-shutter | Yes |
| Warranty | Brilliant Exhaust: The manufacturer offers a 3 year replacement warranty (conditions apply). |
| Exhaust Disclaimer | Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible., Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
Performance
Exhaust Fan Performance
| m3/hr | l/s | Motor Wattage | dB(A) at 3m |
|---|---|---|---|
| 230m3/hr | 83l/s | 75w | 45dB(A) |
Light Performance
| Light Wattage | Light Lumens | Light Temperature |
|---|---|---|
| 8W | 850lm | 4200k Cool White |
Heat Performance
| Lamp Wattage |
|---|
| 2x 275W |
FAQ
What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
