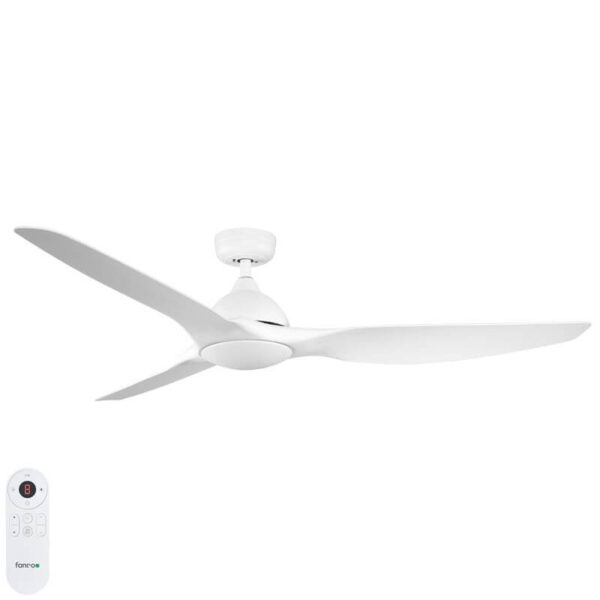

Horizon DC Smart Ceiling Fan with Remote 64″ (White)
$499.00
The white Horizon DC 64″ SMART Ceiling Fan with remote is a great all rounder ceiling fan that delivers strong airflow performance. Suitable for indoor/outdoor and coastal locations the Horizon delivers an impressive 19,010m3/hr of air on max speed, is controllable with the included 6 speed remote control (includes cradle) and is SMART enabled. Connecting the fan to the tuya app on your compatible smart device enables you to control the Horizon and its functions via your smart device and compatible Google Assistant & Amazon Alexa devices.
Description
Fanco Horizon DC Smart Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 162cm (64″) |
| Approximate Blade Pitch | 17 Degrees |
| Type of Motor | DC motor |
| Operation | Remote | SMART Control |
| Summer / Winter use? | Reversible from remote and smart app |
| Ceiling to Lowest Point of Blade | 300mm |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Fanco |
| Manufacturers Part Number | F3020/202C |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
Fanco Horizon DC Smart Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 4.9W | 6,913 m3/hr |
| 2 | 88 | 7.1W | 8,821 m3/hr |
| 3 | 116 | 11.6W | 10,881 m3/hr |
| 4 | 145 | 18.6W | 13,988 m3/hr |
| 5 | 174 | 30W | 17,376 m3/hr |
| 6 | 200 | 45W | 19,010 m3/hr |
The smart control manual is accessible via this link: Fanco Smart Manual.
Additional information
| Brand |
Fanco |
|---|---|
| Warranty |
Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Model Number |
F3020/101C |
| Size |
64" (162cm) |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
DC |
| Control |
Smart Control ,Remote Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Remote |
| Light |
Model with light is available in a package – see separate listings |
| Number of Blades |
3 |
| Blade Material |
Plastic |
| Blade Colour |
White |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Suitable for raked ceilings up to 15 degrees |
| Ceiling to Blade |
300mm |
| Ceiling to Base |
320mm |
Performance
Performance
| Performance | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Airflow (m3/hr) | 6,913 m3/hr | 8,821 m3/hr | 10,881 m3/hr | 13,988 m3/hr | 17,376 m3/hr | 19,010 m3/hr |
| Wattage | 4.9w | 7.1W | 11.6W | 18.6w | 30W | 45W |
| RPM | 60 | 88 | 116 | 145 | 174 | 190 |

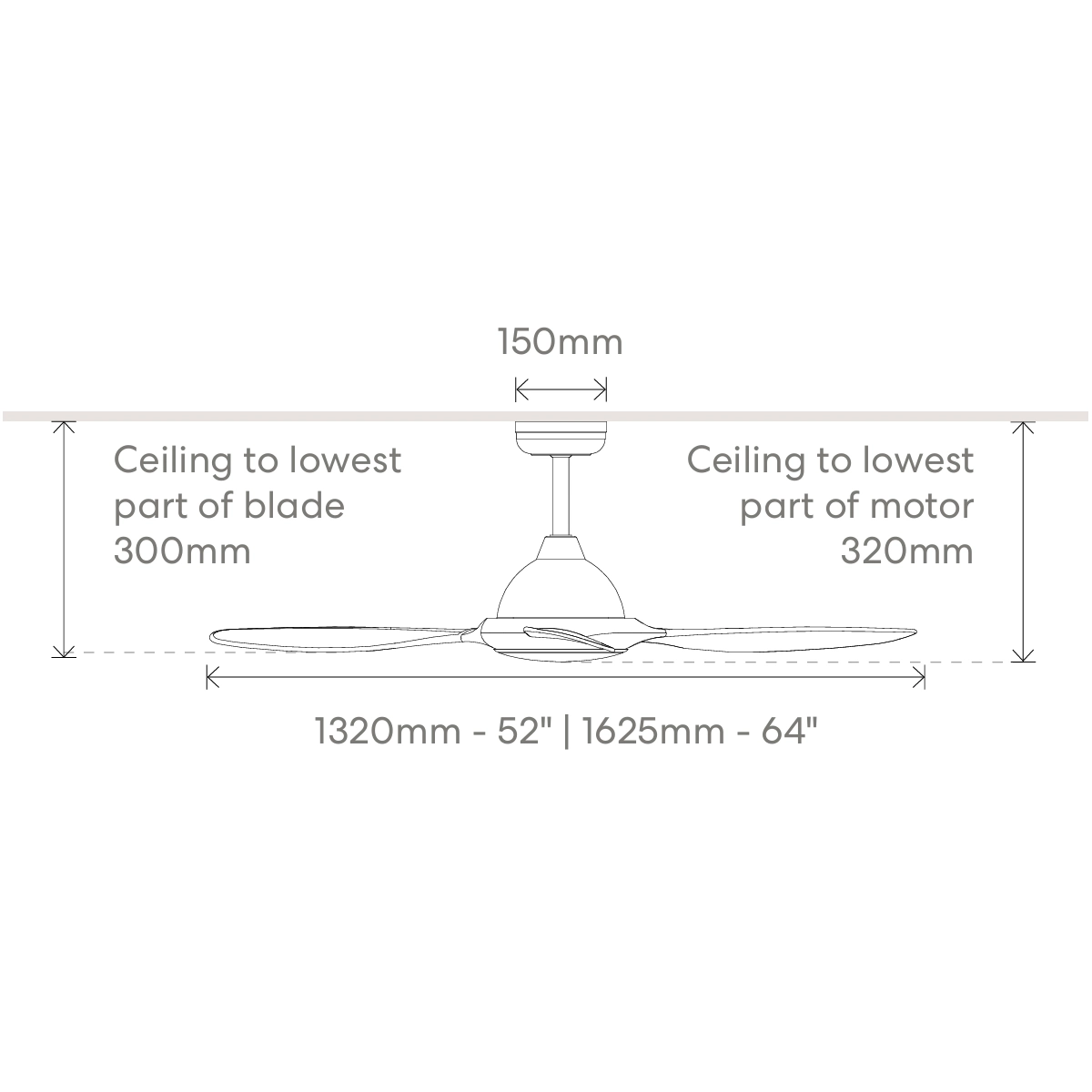

Dimensions
Dimensions
Blade Span (diameter): 64″ (1625mm)
Drop Ceiling to Blade: 300mm
Canopy diameter: 150mm
Drop Ceiling to Base of Motor: 320mm
