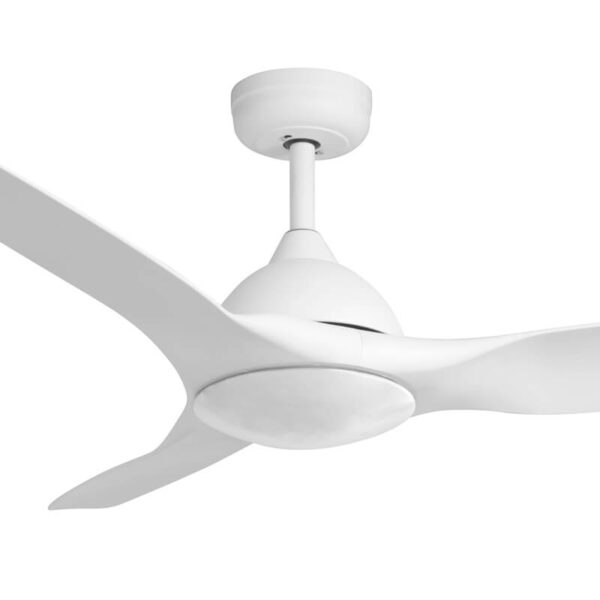

Horizon DC Ceiling Fan with Wall Control & Remote/SMART 64″ (White)
$509.00
The White Horizon DC Ceiling Fan with ‘Tri-Control’ offers excellent variation in airflow, meaning that it’s suitable for installation in most areas of the home. The latest edition of the Horizon has been upgraded for innovative ‘Tri Control’ functionality, that is unique to the Australian market for ceiling fans. Included in the package is a wired wall control, remote control and SMART functionality. The improved wall control has an LED display and a modern fascia, while the remote control allows for reversibility. Use the lowest settings for bedrooms, or turn it right up to the highest of its 6 settings to keep you cool in living rooms or covered outdoor areas. It offers excellent variation in airflow, meaning that it’s suitable for installation in most areas of the home. Use the lowest settings for bedrooms, or turn it right up to the highest of its 6 settings to keep you cool in living rooms or covered outdoor areas.
Description
Fanco Horizon Tri Control Key Features
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | Plastic |
| Overall Diameter (blade tip to blade tip) | 162cm (64″) |
| Approximate Blade Pitch | 17 Degrees |
| Type of Motor | DC motor |
| Operation | Remote Control|Wall Control|Smart Control |
| Summer / Winter use? | Reversible from wall, remote and smart app |
| Ceiling to Lowest Point of Blade | 300mm to base of motor |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Brand | Fanco |
| Manufacturers Part Number | KF3030/101C |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
Fanco Horizon Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 90 | 7.2w | 8,865 m3/hr |
| 2 | 110 | 10.8w | 10,136 m3/hr |
| 3 | 130 | 16.7w | 12,451 m3/hr |
| 4 | 150 | 19.1w | 14,537 m3/hr |
| 5 | 170 | 29.5w | 17,249 m3/hr |
| 6 | 190 | 45w | 19,010 m3/hr |
You can access the installation manual for the wall control through this link: Wall Control Installation Guide.
The smart control manual is accessible via this link: Fanco Smart Manual.
Additional information
| Brand |
Fanco |
|---|---|
| Warranty |
Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Model Number |
KF3030/101C |
| Size |
64" (162cm) |
| Location |
Coastal ,Indoor ,Outdoor – Undercover |
| Motor Type |
DC |
| Control |
Smart Control ,Remote Control ,Wall Control |
| Reverse Function |
Reversible For Summer & Winter Use – From Remote |
| Light |
No Light Option |
| Number of Blades |
3 |
| Blade Material |
Plastic |
| Blade Colour |
White |
| Motor Colour |
White |
| Suitable Raked Ceilings |
Yes |
| Raked Ceilings |
Suitable for raked ceilings up to 15 degrees |
| Ceiling to Blade |
300mm |
| Ceiling to Base |
320mm |
