HomeShopExhaust BrandsFantechHCM Exhaust Fans HCM Window / Wall Exhaust Fan: 225mm (White)
Fantech

HCM Window / Wall Exhaust Fan: 225mm (White)

$449.00 $399.00

The HCM Exhaust fan is suitable for both wall and window applications including home kitchens, bathrooms, small offices and other small spaces.

Installation Location:Wall / Window
Fan Capacity:630 m3/hr (175 l/s)
Hole (Cutout) Size:262mm-267mm Round
Face Size:298mm Round
Ductable:No

Save

Save

buy from lumera with confidence

Stock & Shipping Information

SKU: EWFTHC3 Categories: Exhaust Fans, Fantech, HCM Exhaust Fans, Wall Exhaust Fans, Window Exhaust Fans
  • Description
  • Additional information
  • Installation
  • Performance
  • FAQ
  • Reviews (0)
  • Shipping & Delivery
Description

Features of the HCM Exhaust Fan

  • Low profile design
  • Weather and impact resistant plastic housing
  • Integrated gravity operated shutters (on rear of unit)
  • Quiet operation
  • Powerful airflow
  • Rated for continuous running
  • Requires Hardwiring

logo-fantech

HCM Exhaust Fan Further Information

These HCM exhaust fans feature a low profile design and have weather and impact resistant plastic housings with integral air operated shutters. It’s impellers are sickle shaped for high performance and the motor is a shaded-pole induction motor with sleeve bearings.

Important Notice: If you are wanting to install this HCM on a wall thicker than 25mm, you will need to purchase a set of wall rods and a wall tube as an accessory. These products are listed below as accessories.

Additional information
Weight4 kg
Model Number

HCM225

Brand

Fantech

Colour

White

Material

Plastic

Installation Location

Wall, Window

Installation

Requires Hardwiring

Capacity m3/hr

630 m3/hr

Capacity l/s

175 l/s

Motor Wattage

40w

Noise

40.6 dB(A)

Voltage

220 – 240

Current

No Data Available

IP Rating

IPX4

Hole Size Range

262mm – 267mm

Hole Shape

Round

Fascia Shape

Round

Space to Install Wall

Can be installed in a window or wall with a depth of up to 25mm. If depth is over 25mm (up to 300mm), can use the rod and tube accessories (see below).

Ductable

No

backdraft-shutter

Yes

Warranty

Fantech HCM: The manufacturer offers a 1 year replacement warranty (conditions apply)

Exhaust Disclaimer

Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting., Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed)

Installation

Installation

Can be installed in a window or wall with a depth of up to 25mm.

Installation On Walls

hcm-install-wall

For the HCM 225 it will need a cut out diameter of within 262mm – 267mm in the wall.

If depth is over 25mm (up to 300mm), can use the rod and tube (see accessories).



Installation On Windows

hcm-install-glass

For the HCM 225 it will need a cut out diameter of within 225mm – 267mm in the window (thickness 3-6mm).

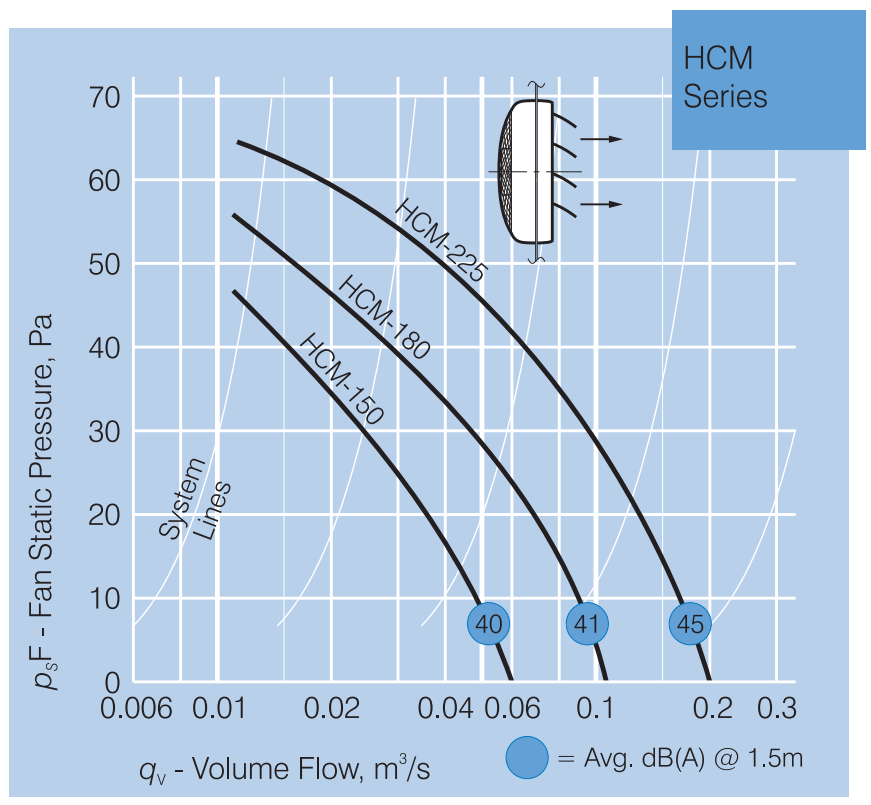

Performance

Performance

hcm-225-performance
