Fanco Eco Style DC Information
Installation | Indoor, Outdoor Undercover |
---|---|
Light | Included |
Material of Blade | Plastic |
Overall Diameter (blade tip to blade tip) | 152cm (60″) |
Approximate Blade Pitch | 15 Degrees |
Type of Motor | DC motor |
Operation | Remote Control |
Summer / Winter use? | Reversible from remote |

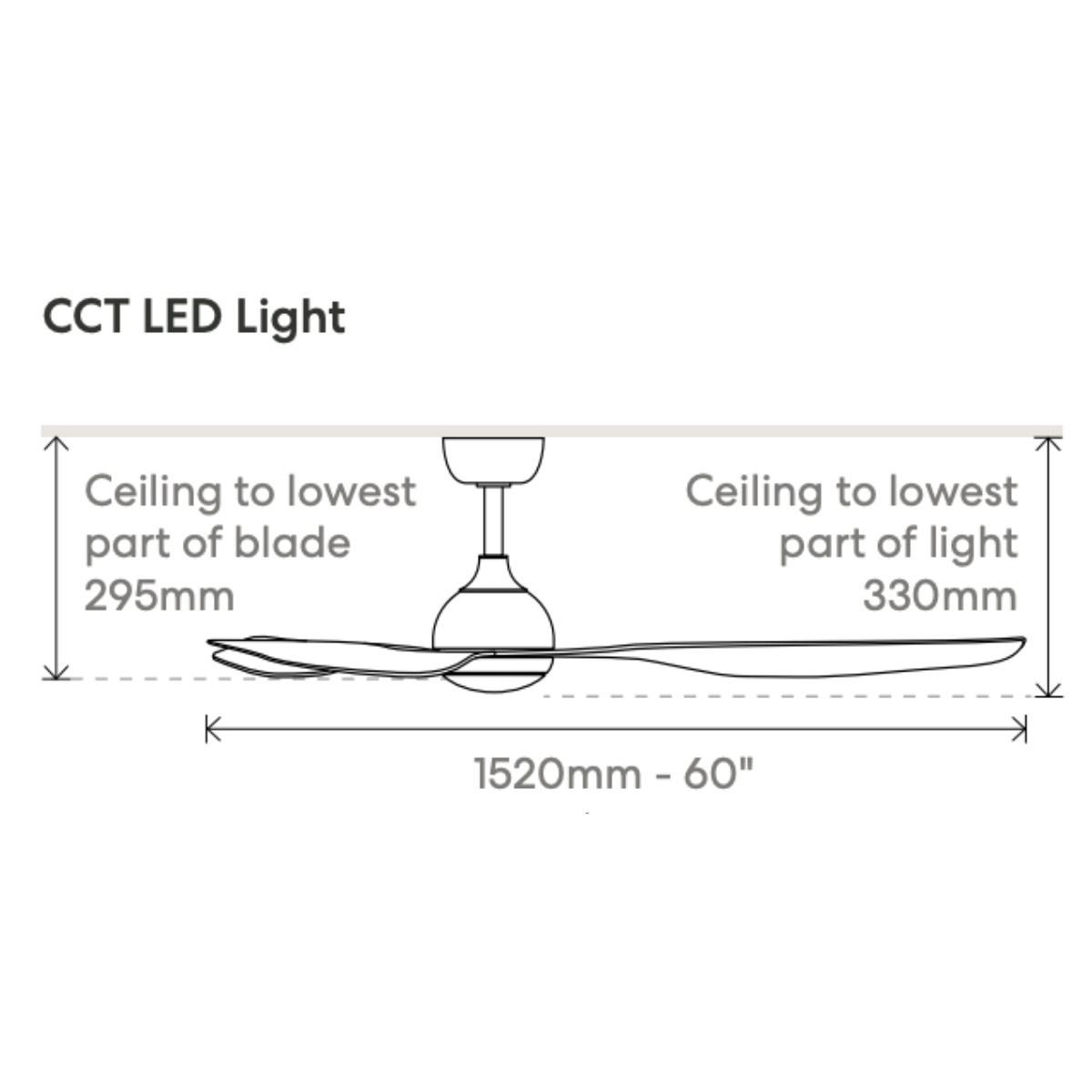

Ceiling to Lowest Point of Blade | 295mm (330mm to base of light) |
Suitable for Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
Brand | Fanco |
Manufacturers Part Number | CFFCTY5LWHN |
Warranty | Fanco: 8 year warranty – 2 year in home warranty + 6 year replacement warranty for motor only (upon product registration). Conditions apply and labour cost is limited, visit the Fanco website for more info |
Fanco Eco Style Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 80 | 5.6 | 6,880 m3/hr |
2 | 96 | 8.3 | 8,050 m3/hr |
3 | 113 | 11 | 9,290 m3/hr |
4 | 136 | 17 | 10,500 m3/hr |
5 | 164 | 27 | 13,500 m3/hr |
6 | 191 | 40 | 15,200 m3/hr |
Fanco Eco Style Light Information
Light Type | LED |
---|---|
Light Wattage | 24 |
Lumens | 1345 at 3000k, 1474 at 4000k, 1461 at 6000k |
Light Temperature | 3000k, 4000k or 6000k |
Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
Please note that the product’s colour may vary slightly due to differences in photographic lighting sources or monitor settings.
