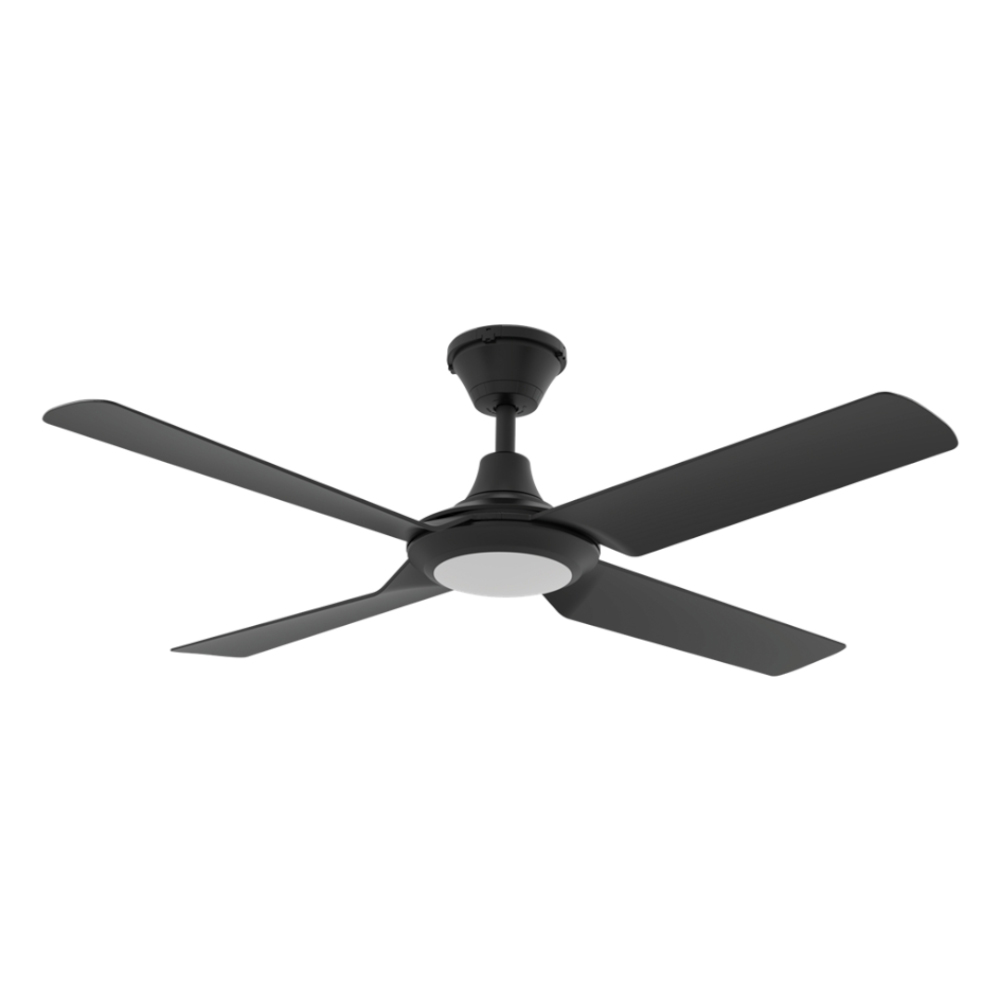

Domus Fresco IP66 DC Information
Installation | Indoor, Outdoor Undercover, Outdoor Wet Location & Coastal |
---|---|
Light | Included |
Material of Blade | Plastic |
Overall Diameter (blade tip to blade tip) | 132cm (52″) |
Approximate Blade Pitch | 14.5 Degrees |

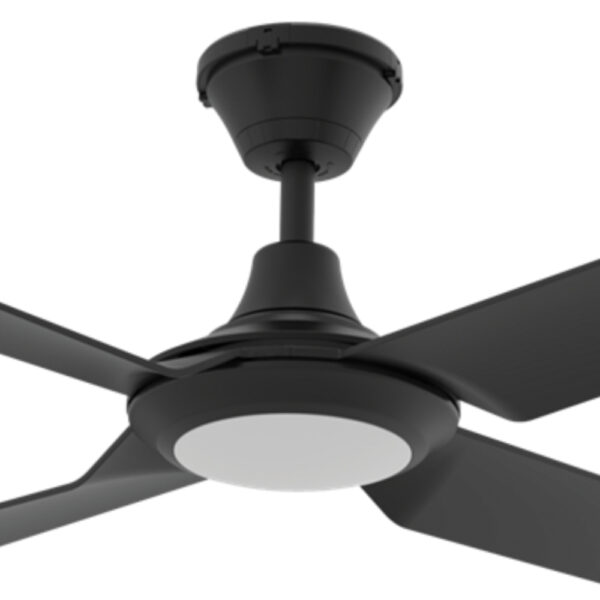

Type of Motor | DC motor |
Operation | Remote Control |
Summer / Winter use? | Reversible from remote |
Ceiling to Lowest Point of Blade | 324mm (339mm to base of light) |
Suitable for Angled Ceilings? | Suitable for flat ceilings ONLY |
Brand | Domus |
Manufacturers Part Number | 60090 |
Warranty | Domus: 3 Year In Home + 3 Year Parts Replacement. Receiver + Remote have a separate 1 Year In Home + 1 Year Parts Replacement |
Domus Fresco IP66 Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | Not Tested | Not Tested | 4218 m3/hr |
2 | Not Tested | Not Tested | 5013 m3/hr |
3 | Not Tested | Not Tested | 8424 m3/hr |
4 | Not Tested | Not Tested | 30349 m3/hr |
5 | Not Tested | Not Tested | 11182 m3/hr |
6 | Not Tested | Not Tested | 12529 m3/hr |
7 | Not Tested | Not Tested | 12802 m3/hr |
8 | Not Tested | Not Tested | 13614 m3/hr |
9 | Not Tested | 26 | 15128 m3/hr |
Domus Fresco IP66 Light Information
Light Type | LED |
---|---|
Light Wattage | 18 |
Lumens | 1800lm, 1900lm or 1950lm |
Light Temperature | 3000k, 4000k or 6000k |
Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
Please Note: For raked or sloped ceilings, please use the optional 38° Ceiling Kit to ensure proper installation and prevent damage to the receiver. Using the 38° Ceiling Kit will compromise the fan’s IP66 weatherproofing.
