A small yet capable exhaust fan with a modern design, the Chico Exhaust Fan can be mounted on the ceiling or wall. It can be connected to ducting to expel air out of the house efficiently. Additionally, it features a built-in backdraft shutter (a clear plastic flap at the back) to prevent warm air from escaping and external air from entering through the fan.

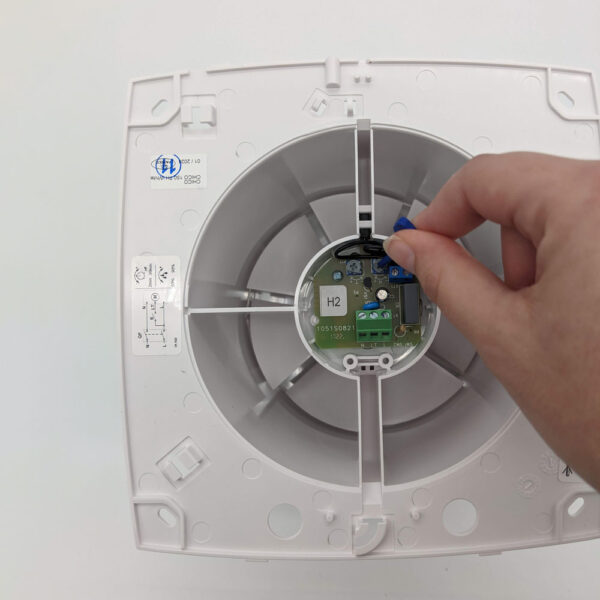

The fan includes an adjustable timer (2 to 30 minutes) and a humidity sensor (60% to 90% threshold) to optimize performance based on the room’s conditions.
| Installation Location: | Wall / Ceiling |
| Fan Capacity: | 265 m3/hr (73.67 l/s) |
| Hole (Cutout) Size: | 150mm Round |
| Face Size: | 206mm Square |
| Ductable: | Yes, Rear Ductable (150mm duct diameter) |
The Fanco Chico features a reliable low watt electric motor which includes overheating protection and is designed for continuous running. With the motor being IP34 rated and the casing and impeller made from high quality, ABS plastic, this modern exhaust fan is durable and perfect for bathrooms and other utility spaces. The built-in adjustable timer allows for operation between 2 to 30 minutes, and the humidity sensor with a threshold range of 60% to 90% ensures optimal performance based on the room’s moisture levels.
| Model Number |
EMVULDТН3WH |
|---|---|
| Brand |
Fanco |
| Colour |
White |
| Material |
Plastic |
| Installation Location |
Ceiling ,Wall |
| Installation |
Requires Hardwiring |
| Capacity m3/hr |
265 m3/hr |
| Capacity l/s |
73.67 l/s |
| Motor Wattage |
24w |
| Noise |
37 dB(A) |
| Voltage |
220 – 240 |
| Current |
0.13A |
| IP Rating |
IP34 – Protected against splashing water from any direction. |
| Hole Size |
150mm |
| Hole Shape |
Round |
| Fascia Shape |
Square |
| Space Required for Install |
Please allow up to 300mm (for duct connection or space above motor if non ducted) |
| Space to Install Wall |
To complete a wall installation, an appropriate rear vent must be used. The dimension of this will need to be taken into consideration when calculating available space (fan throat vent depth). |
| Ductable |
Yes |
| Duct Size |
150mm |
| Duct Location |
Back Ducted |
| backdraft-shutter |
Yes |
| Warranty |
Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Exhaust Disclaimer |
Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. ,Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. ,Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
| Variable | m3/hr | l/s | RPM (min-1) | Wattage | dB(A) at 3m |
|---|---|---|---|---|---|
| CHICO 100 | 88m3/hr | 24.46l/s | 51.83 | 14w | 33dB(A) |
| CHICO 125 | 167m3/hr | 46.42l/s | 2400 | 16w | 34dB(A) |
| CHICO 150 | 264m3/hr | 73.67l/s | 2400 | 24w | 37dB(A) |
| Dimensions | Measurement (mm) |
|---|---|
| D | 150mm |
| B | 206mm |
| H | 165mm |
| L | 154mm |
| L1 | 36mm |
What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
