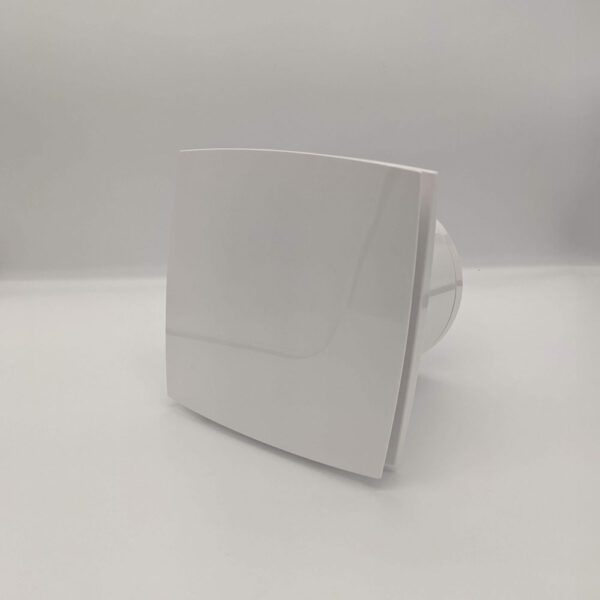

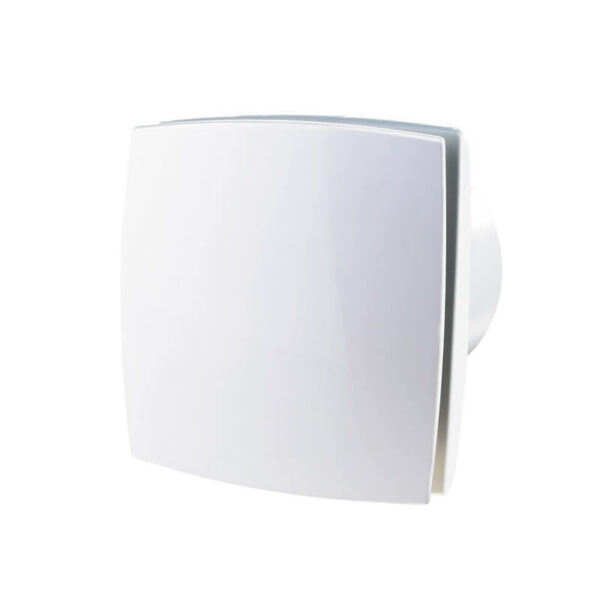

Chico Exhaust Fan 100mm (White)
$99.00

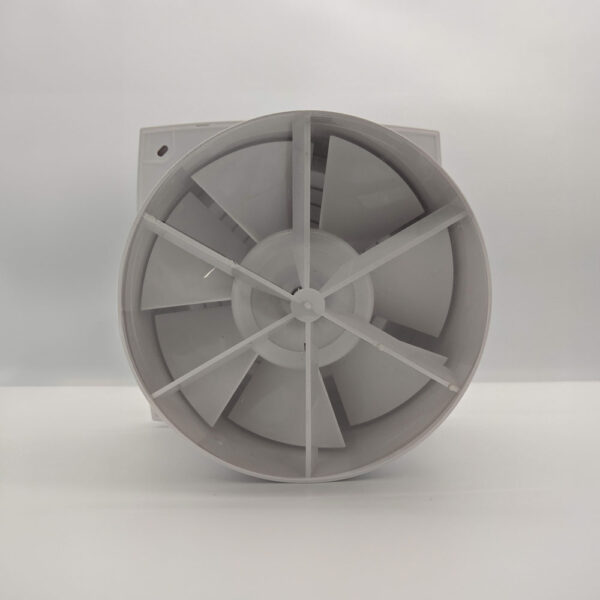

A small yet capable exhaust fan with a modern design and that can be mounted on the ceiling or wall. It can be connected to duct so the air may be exhausted out of the house. It also has a built-in back draft shutter (a clear plastic flap at the back) to stop warm air escaping or external air coming in through the fan.
| Installation Location: | Wall / Ceiling |
| Fan Capacity: | 88 m3/hr (24.44 l/s) |
| Hole (Cutout) Size: | 100mm Round |
| Face Size: | 152mm Square |
| Ductable: | Yes, Rear Ductable (100mm duct diameter) |
Features of the Chico Exhaust Fan
- European Designed & Made – Modern Style
- Built-in Backdraft Shutter
- Can Be Mounted On Ceiling or Wall
- Ductable
- Requires Hardwiring
Download Chico Spec Sheet
Installation Manual Download
Fanco Chico Exhaust Fan Further Information
The Fanco Chico features a reliable low watt electric motor which includes overheating protection and is designed for continuous running. With the motor being IP34 rated and the casing and impeller made from high quality, ABS plastic, this modern exhaust fan is durable and perfect for bathrooms and other utility spaces.
For alternative colours please see other listings.
| Model Number | EMVULD1WH |
|---|---|
| Brand | Fanco |
| Colour | White |
| Material | Plastic |
| Installation Location | Ceiling, Wall |
| Installation | Requires Hardwiring |
| Capacity m3/hr | 88 m3/hr |
| Capacity l/s | 24.44 l/s |
| Motor Wattage | 14w |
| Noise | 33 dB(A) |
| Voltage | 220 – 240 |
| Current | 0.085A |
| IP Rating | IP34 – Protected against splashing water from any direction. |
| Hole Size | 100mm |
| Hole Shape | Round |
| Fascia Shape | Square |
| Space Required for Install | Please allow up to 300mm (for duct connection or space above motor if non ducted) |
| Space to Install Wall | To complete a wall installation, an appropriate rear vent must be used. The dimension of this will need to be taken into consideration when calculating available space (fan throat vent depth). |
| Ductable | Yes |
| Duct Size | 100mm |
| Duct Location | Back Ducted |
| backdraft-shutter | Yes |
| Warranty | Fanco: The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Exhaust Disclaimer | Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible., Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
Performance
Performance Comparison Between Sizes
| Variable | m3/hr | RPM | Wattage | dB(A) at 3m |
|---|---|---|---|---|
| CHICO 100 | 88m3/hr | 2400 | 14w | 33dB(A) |
| CHICO 125 | 167m3/hr | 2400 | 16w | 34dB(A) |
| CHICO 150 | 264m3/hr | 2400 | 24w | 37dB(A) |
Pressure Curve
Dimensions
Dimensions
| Dimensions | Measurement (mm) |
|---|---|
| D | 100mm |
| B | 152mm |
| H | 120mm |
| L | 126mm |
| L1 | 30mm |
