Features of the Brook 4 Exhaust Fan
- High air extraction series
- 1x 10w LED Downlight
- Long life ball bearing motor
- Side duct with energy saving draft stopper
- Comes with 150mm x 3m Alum Duct and a Fixed Grille
- Includes a 4 gang switch

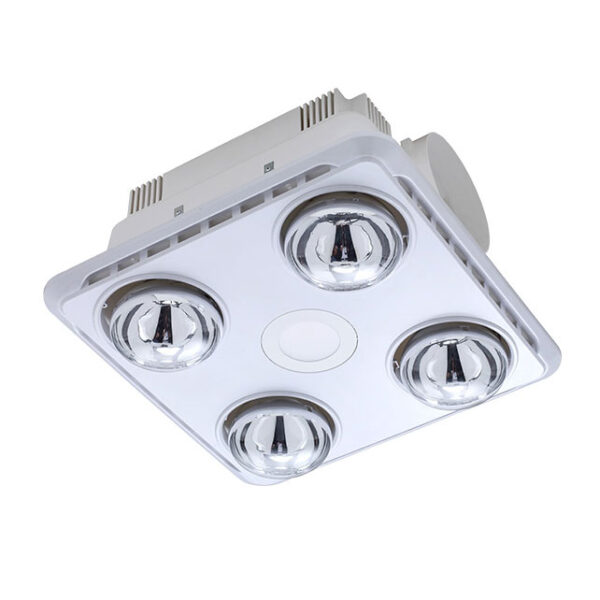

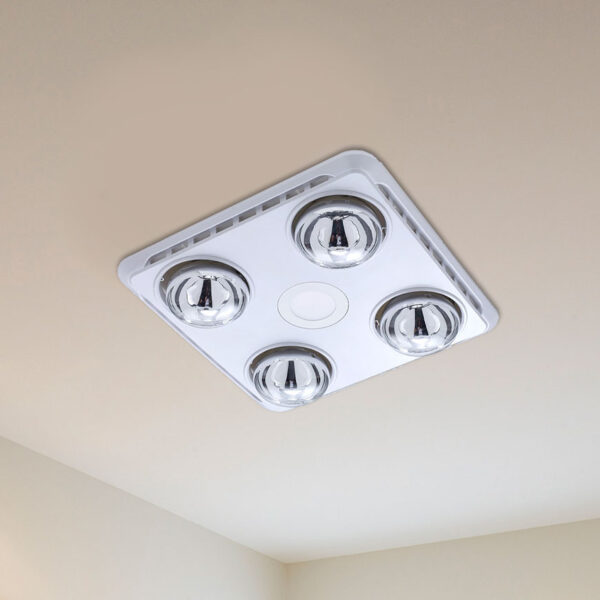

Brook 4 Exhaust Fan 3 in 1 with LED Light (White)
$289.00
The Ventair Brook 4 exhaust fan for bathrooms is a high airflow series featuring four heat lamps, a LED light and an exhaust fan. The exhaust fan on the Brook 4 has a high extraction rate, making it suitable for medium to large bathrooms.
| Installation Location: | Ceiling Only |
| Fan Capacity: | 365 m3/hr (101 l/s) |
| Hole (Cutout) Size: | 375mm x 375mm |
| Includes: | 3m of duct (150mm) & external vent |
Description
Ventair Brook Exhaust Fan Further Information
The Ventair Brook 4 exhaust fan is great for an uncluttered roof space while providing multiple functionality in an all-in-one package. With its modern look, Ventair have designed the Brook 4 to be a sleek and functional part of your bathroom.
The Brook 4 comes with four heat lamps which instantly emit heat, a lamp and a powerful exhaust fan. These functions can operate together or separate from each other, depending on your needs.
For alternative colours please see other listings.
Additional information
| Model Number |
VHF4W |
|---|---|
| Brand |
Ventair |
| Colour |
White |
| Material |
Plastic |
| Installation Location |
Ceiling |
| Installation |
Requires Hardwiring |
| Capacity m3/hr |
365 m3/hr |
| Capacity l/s |
103 l/s |
| Motor Wattage |
40w |
| Noise |
44 dB(A) |
| Voltage |
220 – 240 |
| IP Rating |
IPX4 |
| Hole Shape |
Square |
| Fascia Shape |
Square |
| Space Required for Install |
Please allow up to 220mm |
| Ductable |
Yes |
| Duct Size |
150mm |
| Duct Location |
Side Ducted |
| backdraft-shutter |
Yes |
| Warranty |
Ventair Exhaust: The manufacturer offers a 3 year replacement warranty (conditions apply). |
| Exhaust Disclaimer |
Capacity: All capacity figures and technical data is quoted and provided by the fan's manufacturer. Capacity is based on the unit free of ducting. ,Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible. ,Installation: All electrical products must be installed by a licensed and qualified electrician unless it is a DIY product (i.e with a lead & plug installed) |
Performance
Performance
Exhaust Fan Performance
| m3/hr | l/s | Motor Wattage | dB(A) at 3m |
|---|---|---|---|
| 365m3/hr | 103l/s | 40w | 44dB(A) |
Light Performance
| Light Wattage | Light Lumens | Light Temperature |
|---|---|---|
| 1x 10W LED | 700 lumens | 4000k Natural White |
Heat Performance
| Lamp Wattage |
|---|
| 4x 275W |
Dimensions
Dimensions
Dimensions
| Dimensions | Measurement (mm) |
|---|---|
| A | 450mm |
| B | 450mm |
| C | 193mm |
| D | 150mm |
FAQ
FAQ
What Capacity Will I Need?
See our Exhaust Fan Capacity Calculator
