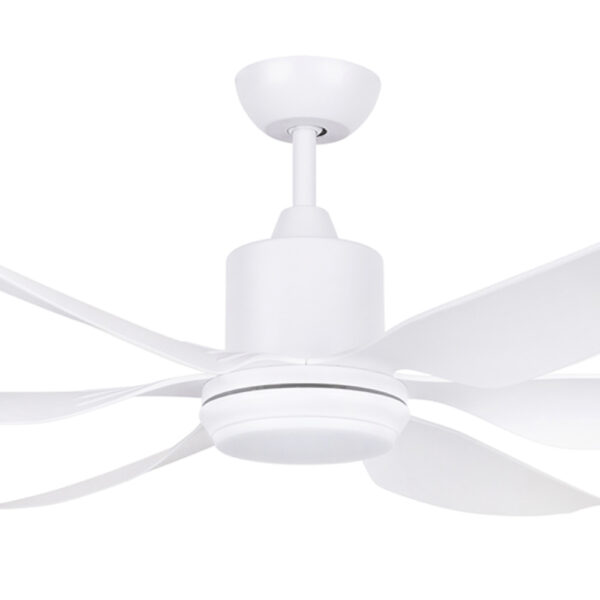

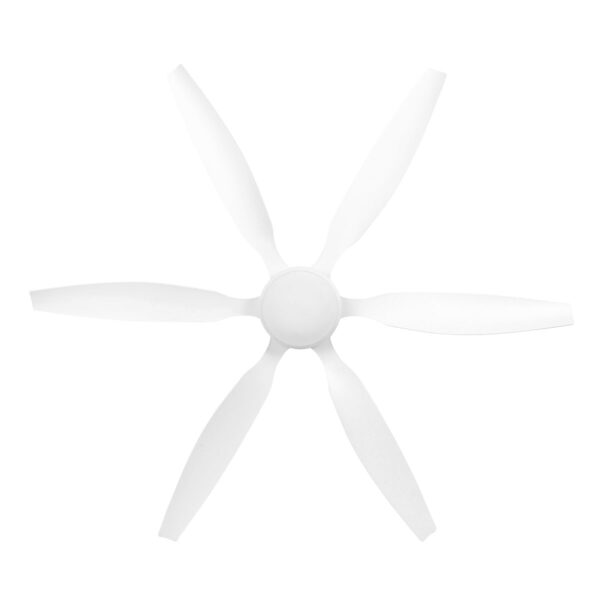

Brilliant Aviator V2 DC Information
Crafted with a metal body and canopy with corrosion-proof ABS blades that are durable and easy to clean.
Installation | Indoor, Outdoor Undercover |
---|---|
Light | Included |
Material of Blade | Plastic |
Overall Diameter (blade tip to blade tip) | 167cm (66″) |
Approximate Blade Pitch | Highly Curved |
Type of Motor | DC motor |
Operation | Remote Control |
Summer / Winter use? | Reversible from remote |
Ceiling to Lowest Point of Blade | 440mm to base of light |
Suitable for Angled Ceilings? | Suitable for angled ceilings up to 10 degrees |
Brand | Brilliant |
Manufacturers Part Number | 22239/05 |
Warranty | Brilliant Lighting – 3 year in-home plus 3 year replacement (6-Year) |
Brilliant Aviator V2 Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 31 | 4 | 5965 m3/hr |
2 | 43 | 6 | 7822 m3/hr |
3 | 55 | 9 | 9463 m3/hr |
4 | 66 | 14 | 10999 m3/hr |
5 | 79 | 23 | 12810 m3/hr |
6 | 93 | 35 | 15500 m3/hr |
Brilliant Aviator V2 Light Information
Light Type | LED |
---|---|
Light Wattage | 40 |
Lumens | 800lm |
Light Temperature | 3000K, 4200K, 6500K |
Dimmable | Yes |
The integrated light incorporates CCT Technology. This means more than one light temperature is offered and you are able to select the required temperature.
