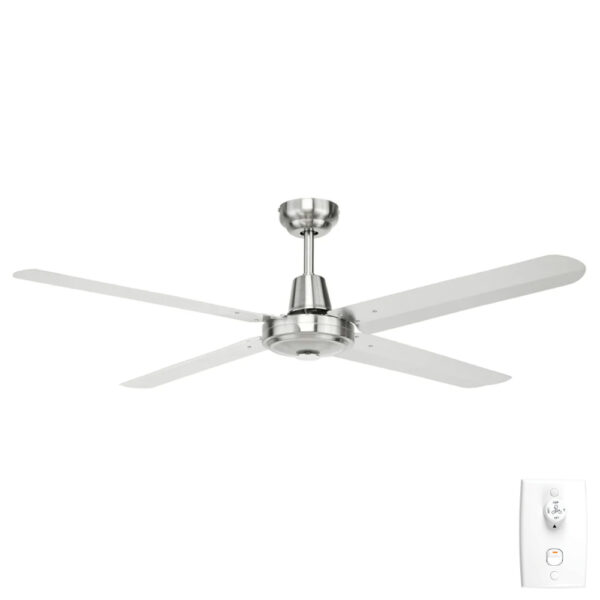

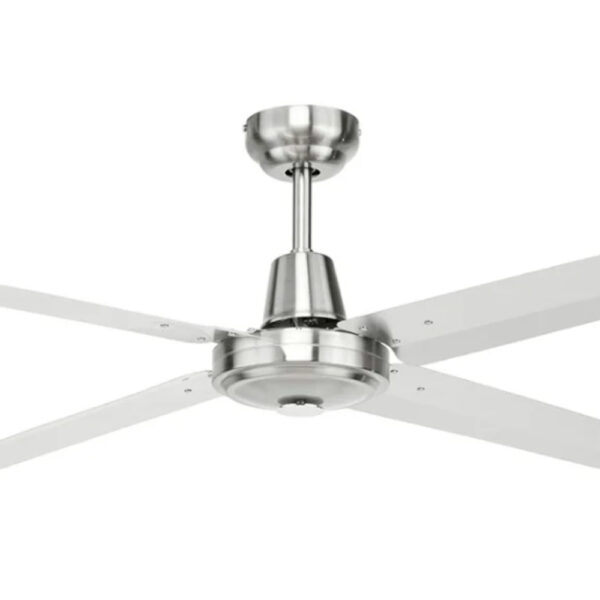

Brilliant Atrium AC Information
| Installation | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Light | Not Included |
| Material of Blade | 316 Stainless Steel |
| Overall Diameter (blade tip to blade tip) | 122cm (48″) |
| Approximate Blade Pitch | 5 Degrees |
| Type of Motor | AC motor |
| Operation | Wall Control |
| Summer / Winter use? | Reversible from switch on motor |
| Ceiling to Lowest Point of Blade | 294mm to base of motor |
| Suitable for Angled Ceilings? | Suitable for angled ceilings up to 32 degrees |
| Brand | Brilliant |
| Manufacturers Part Number | 20102/16 |
| Warranty | Brilliant Lighting: 3 year in home warranty + additional 3 year motor replacement warranty. Terms & Conditions apply – see manufacturers website for more info |
Brilliant Atrium Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 104 | 14 | 3,268 m3/hr |
| 2 | 175 | 29 | 6,077 m3/hr |
| 3 | 301 | 70 | 8,953 m3/hr |
